Messer Cutting Systems CNC Plasma Cutting

Messer EdgeMax

Specs verified 2026-10-05 · us.messer-cutting.com Updated 2026-10-05

Image: us.messer-cutting.com, Messer Cutting Systems

Key Specifications

cutting width

6 ft, 8 ft and 10 ft (1.8 m, 2.4 m and 3.0 m)

cutting length

12 ft or 24 ft (3.7 m or 7.3 m)

material thickness

26 gage to 2.5 in (64 mm) thick plate

materials

Mild steel, stainless steel and aluminum

positioning speed

1,700 ipm (43.2 m/min) in all axes

plasma current

Up to 460 amps (optional precision plasma)

How much does the Messer EdgeMax cost?

Price estimate

Uncertain

We do not have a price for the Messer EdgeMax that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

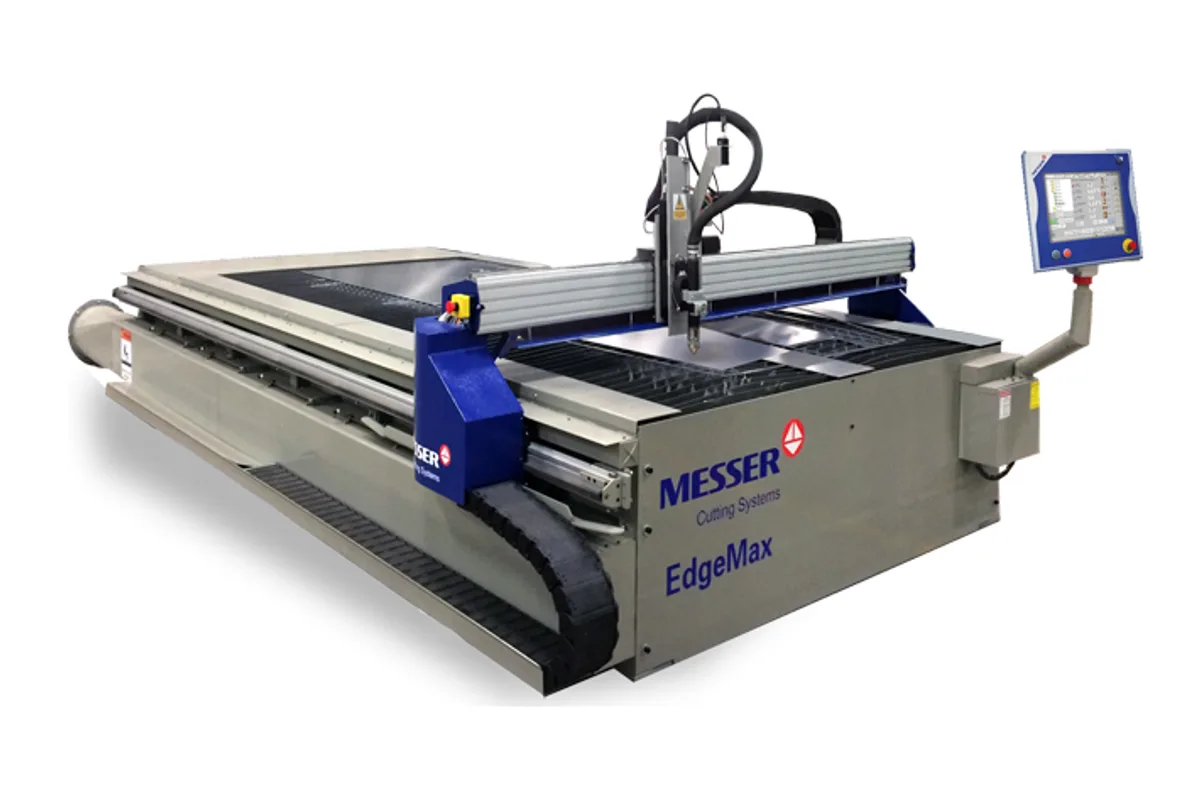

The Messer EdgeMax is a unitized plasma cutting machine with the table built into the frame, sold in cutting widths of 6 ft, 8 ft and 10 ft and cutting lengths of 12 ft or 24 ft. It cuts 26 gage to 2.5 in (64 mm) thick plate in mild steel, stainless steel and aluminum, with precision plasma offered up to 460 amps.

Fixed sizes are the trade for quick installation. The machine arrives as a unit on levelers, so there are no floor rails to set, but there is also no way to lengthen it later: 24 ft is the longest table. Shops that need more length move to the MetalMaster Evolution or a rail gantry.

The drive is plain and sturdy for the class. Digital AC amplifiers with 600 watts run brushless AC motors through planetary gearboxes, and hardened pinions 2.5 in (64 mm) in diameter on the X and Y axes work on a 1 in (25 mm) wide gear rack. Positioning speed is 1,700 ipm (43.2 m/min) in all axes. The torch rides a PL-1 lifter with Messer's SureStop collision sensor.

The standard table is ducted, with damper-controlled zones, removable slat frames and doors for retrieving lost parts; a water table is an option, sold as the EdgeMax H2O. The Global ControlS control has a 15 in LED touch screen and twenty home positions. Options include a Turbo Flame oxyfuel torch, a manual plasma stripping bevel unit for the X-axis, plate markers, vertical pipe and tube cutting, and a Flex Zone for material outside the table.

Full Specifications

Parameter	Value
Cutting Width	6 ft, 8 ft and 10 ft (1.8 m, 2.4 m and 3.0 m)
Cutting Length	12 ft or 24 ft (3.7 m or 7.3 m)
Material Thickness	26 gage to 2.5 in (64 mm) thick plate
Materials	Mild steel, stainless steel and aluminum
Positioning Speed	1,700 ipm (43.2 m/min) in all axes
Plasma Current	Up to 460 amps (optional precision plasma)
Drive System	Digital AC amplifiers with 600 watts, brushless AC motors, alpha planetary gearboxes
Pinion Diameter	2.5 in (64 mm), hardened, X and Y axes
Gear Rack Width	1 in (25 mm)
Torch Lifter	PL-1 lifter with SureStop Collision Sensor
CNC Control	Global ControlS, Windows based, 15 in LED touch screen
Home Positions	Twenty
Table	Ducted table with damper-controlled zones; optional water table
Standards	Designed and manufactured in the USA to machine tool and ISO 230-2 standards; UL/CUL

Specifications sourced from us.messer-cutting.com — verified 2026-10-05

Strengths & Limitations

Strengths

Unitized construction with levelers, so no floor rails to install
Positioning speed of 1,700 ipm (43.2 m/min) in all axes
Precision plasma up to 460 amps is offered
Ducted table with damper-controlled zones, removable slat frames and table doors
Flex Zone option for processing material outside the table

Limitations

Cutting length is 12 ft or 24 ft only; the table cannot be extended
Plate thickness tops out at 2.5 in (64 mm)
Bevel cutting is limited to a manual stripping bevel unit on the X-axis
No accuracy or repeatability figure is published for this model

Best For

Job shops cutting sheet and plate up to 2.5 in by plasma Plants that want a machine set down and levelled without rail foundations Standard plate sizes up to 10 ft x 24 ft Occasional pipe and tube cutting with the vertical option

Frequently Asked Questions

01 What sizes does the EdgeMax come in?

Cutting widths are 6 ft, 8 ft and 10 ft, and cutting lengths are 12 ft or 24 ft. That gives six combinations. The machine is unitized, with the table in the frame, so the size is fixed when it is ordered.

02 What thickness can the EdgeMax cut?

The standard features give 26 gage to 2.5 in (64 mm) thick plate, in mild steel, stainless steel and aluminum. Precision plasma up to 460 amps is optional. With the optional oxyfuel gas control Messer describes automatic piercing control for mild steel up to 5 in thick.

03 How fast is the EdgeMax?

Positioning speed is 1,700 ipm (43.2 m/min) in all axes. The drive uses digital AC amplifiers with 600 watts and brushless AC motors, with hardened pinions 2.5 in (64 mm) in diameter on a 1 in (25 mm) wide gear rack. Messer publishes no accuracy figure for it.

04 Is the EdgeMax a downdraft or a water table?

The standard machine has a ducted table with damper-controlled zones for dust and smoke removal, which needs a dust collector. A water table is offered as an option under the name EdgeMax H2O.
