Mazak QUICK TURN 350M
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Z Travel
Max Spindle
Tool Capacity
Max Turn Length
bed length type
How much does the Mazak QUICK TURN 350M cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak QUICK TURN 350M is a 12 in chuck turning center with live tooling and nothing else added: Mazak's model list gives its configuration as Milling, VDI, with no Y-axis and no second spindle. It turns up to Ø17 in (432 mm) over a length of 24 in (610 mm), on a 4,000 rpm main spindle rated 30 kW (40 HP) on a 30 min. rating.
Set against the smaller machines of the series, the 350 size buys diameter and bore before it buys length. The QUICK TURN 200M, the same configuration with an 8 in chuck, has Ø15 in (381 mm) of turning diameter, 21 in (533 mm) of turning length and a 5,000 rpm spindle. The 350M answers with a Ø30 in (762 mm) swing, Ø4 in (102 mm) of bar capacity, 10 in (254 mm) of X travel and 26 in (660 mm) of Z, at a lower top speed. It is a chucker for flanges, housings, rings and thick bar, not a shaft lathe.
Milling without a Y-axis means every live tool works on the spindle centreline. Cross drilling, face drilling on a bolt circle and tapping are all in reach, and so is any shape the C-axis can generate by rotating the part under the tool; Mazak states that C-axis contouring is standard for the main spindle of M models in the series. A keyway with parallel walls or a hole offset from centre is where this model stops and the QUICK TURN 350MSY, with 6 in (152 mm) of Y travel, takes over.
Tooling follows the size class. Mazak groups the 12-inch models with a Ø50 boring bar shank and a 25 mm turning tool shank, and the turret holds 12 tools. With one spindle to feed, that count goes further than it does on the two-spindle models.
Full Specifications
| Parameter | Value |
|---|---|
| Bed Length Type | 26 in (660 mm) |
| Max Swing | Ø30 in (762 mm) |
| Max Turning Diameter | Ø17 in (432 mm) |
| Max Turning Length | 24 in (610 mm) |
| Max Bar Capacity | Ø4 in (102 mm) |
| Chuck Size | 12 in |
| Max Spindle Speed | 4,000 rpm |
| Spindle Power Intermittent | 30 kW (40 HP) (30 min. rating) |
| Tool Capacity | 12 tools |
| X-Axis Travel | 10 in (254 mm) |
| Z-Axis Travel | 26 in (660 mm) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Ø17 in (432 mm) maximum turning diameter and a Ø30 in (762 mm) swing behind a 12 in chuck
- Main spindle rated 30 kW (40 HP) (30 min. rating) at up to 4,000 rpm
- Bar capacity of Ø4 in (102 mm) for heavy bar and tube work
- Live tooling with C-axis contouring standard on the main spindle of M models in the series
- Takes Ø50 boring bar shanks and 25 mm turning tool shanks, per Mazak's 12-inch model group
- All 12 tools serve a single spindle
Limitations
- No Y-axis: off-centre milling needs the QUICK TURN 350MSY, which lists 6 in (152 mm) of Y travel
- No second spindle, so the second side of every part is a separate setup
- Top speed is 4,000 rpm against 5,000 rpm on the QUICK TURN 200M, which costs surface speed on small diameters
- Maximum turning length is 24 in (610 mm), so long shafts are outside the machine
Best For
Frequently Asked Questions
01
Only those the C-axis can produce by rotating the part, because Mazak's model list gives the 350M milling but no Y-axis. Mazak states that C-axis contouring is standard for the main spindle of M models. For keyways with parallel walls and offset holes, the QUICK TURN 350MSY lists 6 in (152 mm) of Y travel.
02
Mazak's series page groups the 12-inch chuck models with a Ø50 boring bar shank and a 25 mm turning tool shank. The table lists 12 tools, and the model list gives the QUICK TURN 350M a VDI turret. In the series the tool holder can be selected between bolt-on and VDI, so check which is quoted before ordering holders.
03
The QUICK TURN 350MSY shares the 12 in chuck, 4,000 rpm, Ø17 in (432 mm) turning diameter, 24 in (610 mm) turning length and 26 in (660 mm) of Z, and lists 11 in (279 mm) of X and 6 in (152 mm) of Y. The 350M has 10 in (254 mm) of X and no Y-axis or second spindle, which makes it the simpler machine for parts that are turned first and milled lightly.
04
The chuck is 12 in and bar capacity is Ø4 in (102 mm). Maximum turning diameter is Ø17 in (432 mm) under a Ø30 in (762 mm) swing, with a maximum turning length of 24 in (610 mm). Mazak gives the bed-length class as 26 in (660 mm), the same figure as the Z travel.
05
Mazak states that all models of the series have a built-in motor spindle, with no gears or belts between motor and spindle. On the 350M it is rated 30 kW (40 HP) on a 30 min. rating with a 4,000 rpm maximum. The table gives no torque figure and no continuous rating, so ask for the torque curve if low-speed roughing matters.

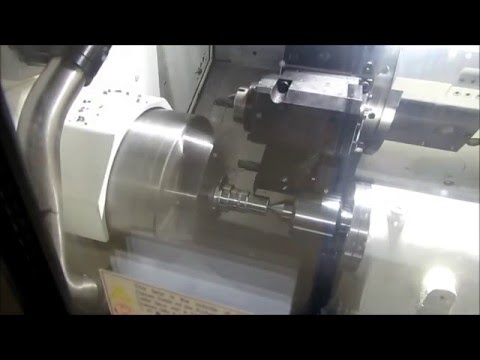

Videos
