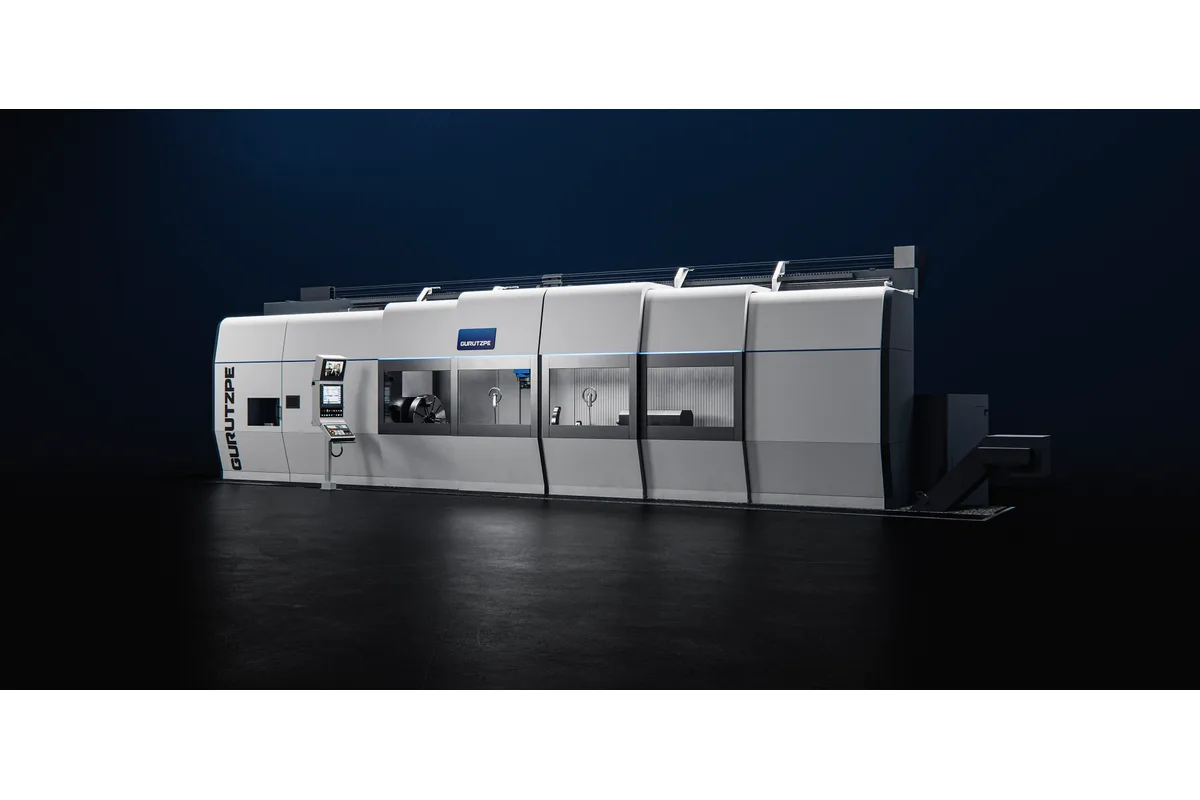

Gurutzpe GSM 10
Image: gurutzpe.com, Gurutzpe
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
swing over bed
distance between centers
spindle torque
How much does the Gurutzpe GSM 10 cost?
Price estimate
We do not have a price for the Gurutzpe GSM 10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Gurutzpe GSM 10 is the entry size of the GSM slant-bed turnmill: a lathe with a milling-boring column, Ø 1,000 mm (39.4 in) of swing, up to 8,000 mm (315.0 in) between centers and a workpiece weight of 6,000 / 8,000 kg (13,228 / 17,637 lb). Gurutzpe describes the range as complete turning-milling-boring (5 axis).
One swing figure covers everything. The table gives the Ø 1,000 mm (39.4 in) as the swing over bed, carriage and steady-rests, and Gurutzpe adds that it is limited by the backwall. On a flat-bed lathe the carriage usually takes a slice out of the swing; here it does not.
The turning headstock is rated 74 / 90 kW (99.2 / 120.7 hp) and 9,420 / 11,460 Nm (6,948 / 8,453 lb-ft) at S1-100% / S6-60%, with a top speed of 1,500 rpm. It is the only GSM size with a single speed figure and the only one with a choice of spindle bore, Ø 110 / Ø 150 mm (4.3 / 5.9 in). The C axis positions at 15 rpm.
Milling is done by a B-axis head on a hydrostatic RAM. The head swivels ±110° and is listed in four versions, from 5,000 rpm with 1,410 Nm to 18,000 rpm with 165 Nm, on C8 or HSK-T100 / C6 or HSK-T63 interfaces. Tools come from a chain-type or robot-based magazine with 50 / 80 / 100 posts.
Two things are missing from the page. The Y-axis stroke row does not hold a usable figure, and no machine weight or footprint is given. Ask Gurutzpe for both. The control is a SIEMENS 840D.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø 1,000 mm (39.4 in) (over bed, carriage and steady-rests) |
| Distance Between Centers | Up to 8,000 mm (315.0 in) |
| Spindle Motor Power | 74 / 90 kW (99.2 / 120.7 hp) (S1-100% / S6-60%) |
| Spindle Torque | 9,420 / 11,460 Nm (6,948 / 8,453 lb-ft) (S1-100% / S6-60%) |
| Max Spindle Speed | 1,500 rpm |
| C Axis Positioning Speed | 15 rpm |
| Spindle Bore | Ø 110 / Ø 150 mm (4.3 / 5.9 in) |
| Max Workpiece Weight | 6,000 / 8,000 kg (13,228 / 17,637 lb) between centers |
| Milling Spindle Power | 49 / 56 / 60 / 85 kW (65.7 / 75.1 / 80.5 / 114.0 hp) (S1-100% duty cycle) |
| Milling Spindle Torque | 1,410 / 305 / 165 / 530 Nm (1,040 / 225 / 122 / 391 lb-ft) (S1-100% duty cycle) |
| Milling Spindle Speed | 5,000 / 6,000 / 18,000 / 8,000 rpm |
| Tooling Interface | C8 or HSK-T100 / C6 or HSK-T63 |
| B Axis Range | ±110° |
| B Axis Braking System | each 0.001º (for light-medium turning/milling operations) |
| B Axis Locking System | each 2.5º (for heavy-duty turning/milling operations) |
| Y Axis Guiding | Hydrostatic |
| Tool Capacity | 50 / 80 / 100 posts (tool magazine chain-type or robot-based) |
| Accessories Magazine | Over the headstock: up to 4 automatic sliding posts, accessory max. Ø150 mm and 2300 mm length |
| Heads Pickup Magazine | On the right end of the tailstock: up to 4 heads and a boring bar max. Ø200 mm and 3200 mm length |
Specifications sourced from gurutzpe.com — verified 2026-10-04
Strengths & Limitations
Strengths
- One swing of Ø 1,000 mm (39.4 in) over bed, carriage and steady-rests
- Headstock rated 74 / 90 kW (99.2 / 120.7 hp) and 9,420 / 11,460 Nm (6,948 / 8,453 lb-ft) at S1-100% / S6-60%
- Spindle bore offered as Ø 110 / Ø 150 mm (4.3 / 5.9 in), the only GSM size with a choice
- B-axis milling head swivels ±110° and brakes each 0.001º for light-medium work
- Tool magazine with 50 / 80 / 100 posts, chain-type or robot-based
Limitations
- Workpiece weight between centers tops out at 6,000 / 8,000 kg (13,228 / 17,637 lb); the GSM 13 is listed at 10,000 / 15,000 kg (22,046 / 33,069 lb)
- Up to 8,000 mm (315.0 in) between centers is the shortest of the GSM sizes
- Gurutzpe's table gives no usable Y-axis stroke, and the X-stroke is only described as defined for 200 mm long tools
- The B axis locks only each 2.5º for heavy-duty turning and milling
Best For
Frequently Asked Questions
01
A slant-bed turnmill: a monoblock cast-iron slant bed lathe with a milling-boring column. Gurutzpe describes the GSM range as complete turning-milling-boring (5 axis), aimed at finishing the workpiece in a single set-up. The GSM 10 swings Ø 1,000 mm (39.4 in) and takes up to 8,000 mm (315.0 in) between centers.
02
The table lists 6,000 / 8,000 kg (13,228 / 17,637 lb). These are two capacities to choose between. If the work is heavier, the GSM 13 is listed at 10,000 / 15,000 kg (22,046 / 33,069 lb) with Ø 1,300 mm (51.2 in) of swing.
03
Maximum power is 74 / 90 kW (99.2 / 120.7 hp) and maximum torque 9,420 / 11,460 Nm (6,948 / 8,453 lb-ft), both given for S1-100% / S6-60%. Maximum spindle speed is 1,500 rpm and the C-axis positioning speed is 15 rpm. The spindle inner bore is Ø 110 / Ø 150 mm (4.3 / 5.9 in).
04
The table gives four versions side by side. Power is 49 / 56 / 60 / 85 kW (65.7 / 75.1 / 80.5 / 114.0 hp), torque 1,410 / 305 / 165 / 530 Nm (1,040 / 225 / 122 / 391 lb-ft) and speed 5,000 / 6,000 / 18,000 / 8,000 rpm, all at S1-100% duty cycle. The tooling interface is C8 or HSK-T100 / C6 or HSK-T63.
05
Gurutzpe names a SIEMENS 840D control system for the GS series, with pre-built ShopTurn and ShopMill modules for specific cycles. That statement is made for the series as a whole, not in the GSM 10 column of the table, so confirm the control version in the quotation.
