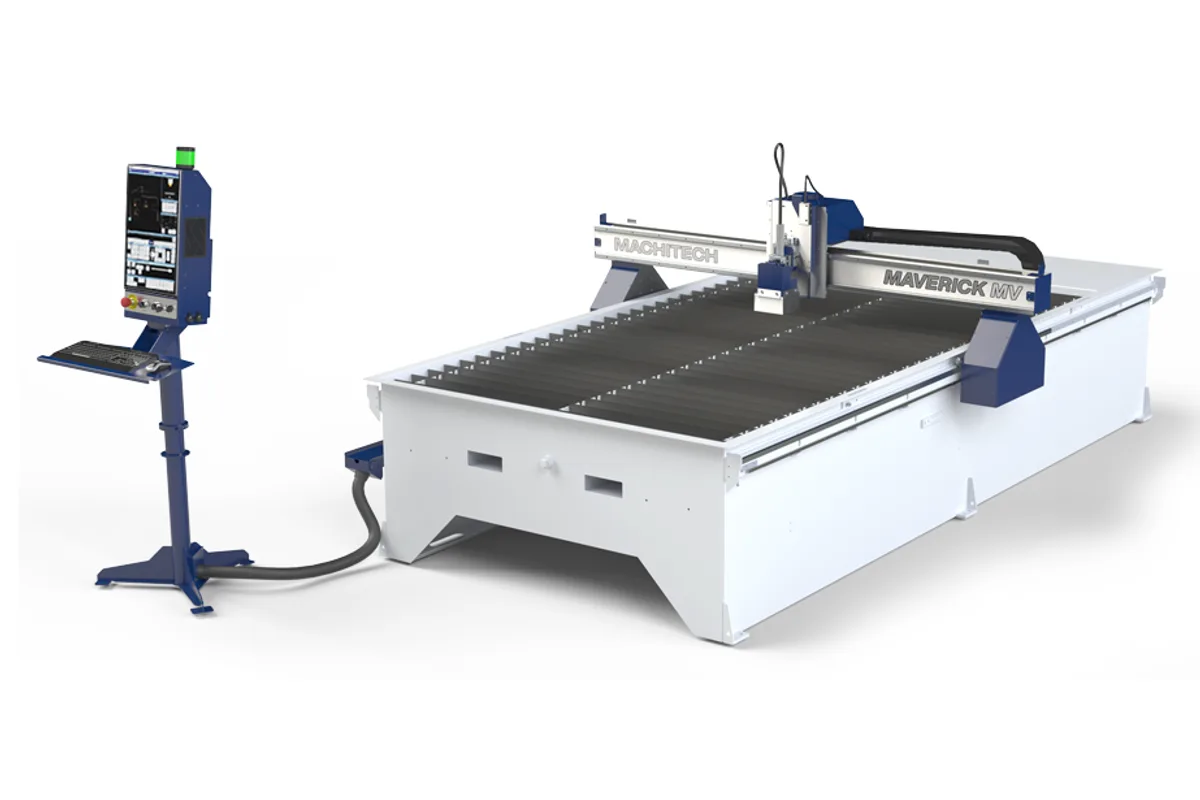

Machitech Maverick MV 5x10
Image: machitech.com, Machitech Automation
Key Specifications
Rapid Traverse
Accuracy
Repeatability
processing range
table type
plasma amperage
How much does the Machitech Maverick MV 5x10 cost?
Price estimate
We do not have a price for the Machitech Maverick MV 5x10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a processing range of 66 x 126 in (1,676 x 3,200 mm), the Machitech Maverick MV 5x10 is the size of the entry-level Maverick line that takes a standard sheet without cutting it down first. It doubles the bed of the 5x5 in one direction and keeps the same 103 in (2,616 mm) width, growing only in length, to 162 in (4,114 mm).
Workpiece weight doubles with the bed, to 3,060 lbs (1,388 kg). Maximum plate thickness is the same 1.5 in (38 mm) as on the smaller table, so the longer bed adds area and not capacity for heavier sections.
From this size up the Maverick can cut pipe: the option covers 1.6 to 8 in diameter. Manual bevel, pneumatic scribing and oxyfuel with a choice of fuel are the other options. The plasma range is 45 to 125A, 200A.
Speeds and accuracy do not change with length. The gantry is machined aluminum, driven on both sides by Nema 34 motors with a zero-backlash drive, and reaches 800 ipm (20,320 mm/min) in the cut and 1,200 ipm (30,480 mm/min) in rapid traverse. Positional accuracy is 0.004 in (0.1 mm) and repeatability 0.002 in (0.05 mm). Z-axis clearance is 5.5 in (140 mm). The machine weighs 2,100 lbs (950 kg) without source and options. A buyer who needs high-definition plasma or servo motors should compare the Silver Cut 5x10, which has the same processing range.
Full Specifications
| Parameter | Value |
|---|---|
| Processing Range | 66 x 126 in (1,676 x 3,200 mm) |
| Table Type | Water or downdraft |
| Plasma Amperage | 45 to 125A, 200A |
| Max Plate Thickness | 1.5 in (38 mm) |
| Z Axis Clearance | 5.5 in (140 mm) |
| Max Cutting Speed | 800 ipm (20,320 mm/min) |
| Rapid Traverse Rate | 1,200 ipm (30,480 mm/min) |
| Positioning Accuracy | 0.004 in (0.1 mm) |
| Repeatability | 0.002 in (0.05 mm) |
| Workpiece Weight | 3,060 lbs (1,388 kg) |
| CNC Control | Machitech NX4 CNC |
| Laser Positioning | Included |
| Manual Bevel | Optional |
| Pneumatic Scribing | Optional |
| Oxyfuel Cutting | Optional, choice of fuel |
| Pipe Cutting | Optional, 1.6 to 8 in diameter |
| Machine Width | 103 in (2,616 mm) |
| Machine Length | 162 in (4,114 mm) |
| Machine Height | 53 in (1,346 mm) |
| Machine Weight | 2,100 lbs (950 kg), without plasma source or options |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Processing range of 66 x 126 in (1,676 x 3,200 mm) for standard sheet
- Pipe cutting option for 1.6 to 8 in diameter
- Same 103 in (2,616 mm) width as the 5x5
- Water or downdraft use from one bed design
- Dual-side drive with zero-backlash system
Limitations
- Maximum plate thickness is 1.5 in (38 mm), with 5.5 in (140 mm) of Z-axis clearance
- Nema 34 motors, where the Silver Cut uses servo motors on all axes
- Positional accuracy of 0.004 in (0.1 mm)
- Bevel cutting is manual and optional
Best For
Frequently Asked Questions
01
Its processing range is 66 x 126 in (1,676 x 3,200 mm), and the table is rated for a workpiece weight of 3,060 lbs (1,388 kg). Maximum plate thickness is 1.5 in (38 mm).
02
The machine is 103 in (2,616 mm) wide, 162 in (4,114 mm) long and 53 in (1,346 mm) high. It weighs 2,100 lbs (950 kg) with standard equipment, not counting the plasma source or added options.
03
The processing range is the same. The Maverick MV 5x10 is quicker on paper at 800 ipm (20,320 mm/min) cutting and 1,200 ipm (30,480 mm/min) rapid, while the Silver Cut 5x10 has servo motors, a steel gantry and tighter positional accuracy of 0.003 in (0.07 mm).
04
The Machitech NX4 CNC controller with touchscreen, and ProNest LT CAD/CAM in the unlimited version. Laser positioning for plate alignment and automatic torch height control are also included.
