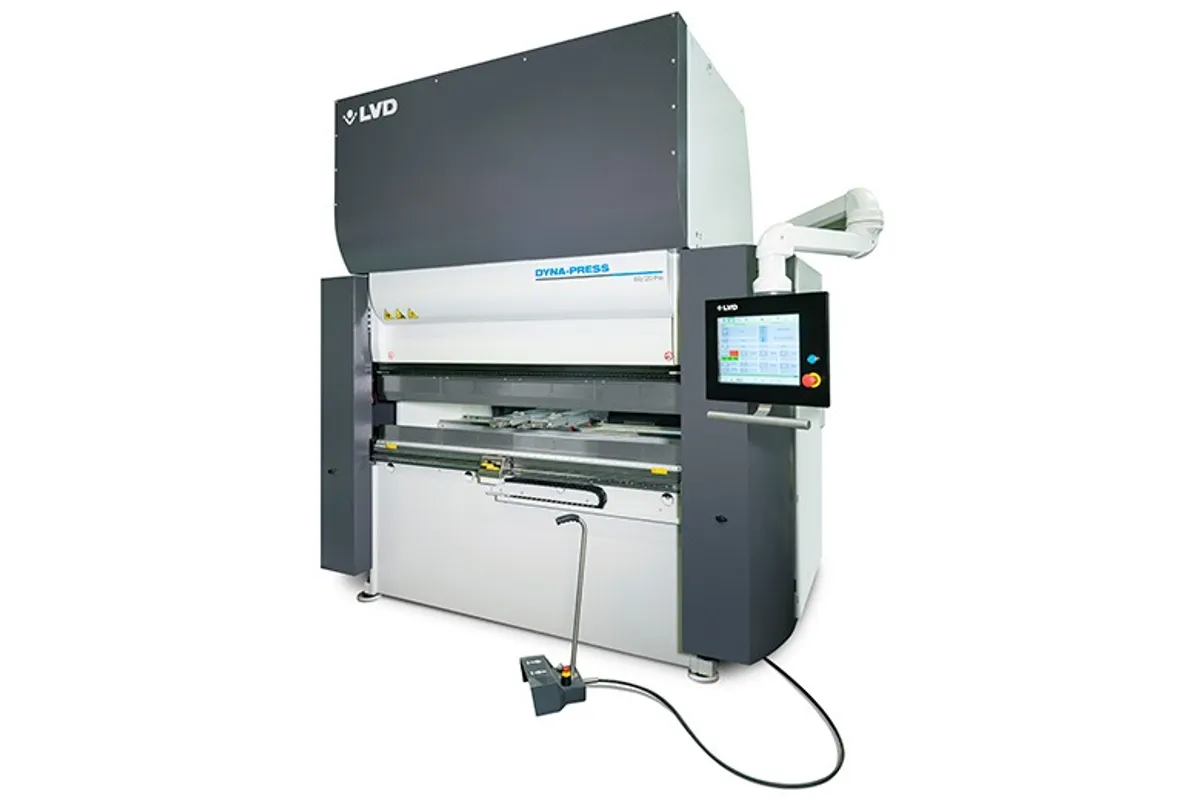

LVD Dyna-Press Plus

Est. $45,000-$75,000 (new) Possible older model Updated 2026-10-03

This model was not found in LVD's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.

Key Specifications

Weight

~1,800-2,200 kg

capacity

12-24 metric tons

bed length

1,020-1,270 mm

stroke

150 mm

approach speed

200 mm/sec

pressing speed

25 mm/sec

How much does the LVD Dyna-Press Plus cost?

Estimated price range

Est.$45,000-$75,000 (new)

Our best estimate for a cnc press brake in this class — not a quote from LVD. Configuration moves it a long way.

Overview

The LVD Dyna-Press Plus is a small all-electric servo press brake, listed at 12-24 metric tons of capacity on a bed of 1,020-1,270 mm. Both rows are ranges. The listed figures therefore cover more than one size, and they do not say which force goes with which bed length.

Speeds are 200 mm/sec on approach and 25 mm/sec when pressing, over a 150 mm stroke, with ram repeatability of ±0.005 mm. On small parts made in quantity those figures count for more than tonnage, because the ram spends most of each cycle travelling. The control is a Touch-B touchscreen. Weight is listed at ~1,800-2,200 kg, so the machine can be sited and moved far more easily than a full-length brake. The DYNA-PRESS Pro is the larger relative, with a 1,530 mm (60.2 in) bending length and a weight of 4,750 kg (10,472 lb).

Full Specifications

Parameter	Value
Capacity	12-24 metric tons
Bed Length	1,020-1,270 mm
Stroke	150 mm
Approach Speed	200 mm/sec
Pressing Speed	25 mm/sec
Ram Repeatability	±0.005 mm
Drive	All-electric servo
CNC Control	Touch-B touchscreen
Machine Weight	~1,800-2,200 kg

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

All-electric servo drive with ram repeatability listed at ±0.005 mm
200 mm/sec approach speed and 25 mm/sec pressing speed
Listed at ~1,800-2,200 kg, well under the 4,750 kg (10,472 lb) of the DYNA-PRESS Pro

Limitations

Capacity stops at 24 metric tons and bed length at 1,270 mm
Capacity and bed length are listed as ranges, without saying which size has which
No open height, throat depth or back gauge details are listed

Best For

Small parts within 1,270 mm of bed and 24 metric tons Volume runs of small bends, where a 200 mm/sec approach shortens the cycle Tight-tolerance small parts that rely on ±0.005 mm ram repeatability

Frequently Asked Questions

01 How much force and bed length does the Dyna-Press Plus have?

The listed figures are 12-24 metric tons of capacity and a bed length of 1,020-1,270 mm, with a 150 mm stroke. Both are given as ranges, so confirm the force and bed length of the individual machine from its nameplate.

02 How does the Dyna-Press Plus differ from the DYNA-PRESS Pro?

The DYNA-PRESS Pro is the larger machine, with 1,530 mm (60.2 in) of bending length, a weight of 4,750 kg (10,472 lb) and a 15" Touch-B control. The Dyna-Press Plus is listed with a bed of 1,020-1,270 mm and a weight of ~1,800-2,200 kg, and its control is given as a Touch-B touchscreen with no screen size.

03 How fast is the Dyna-Press Plus?

Approach speed is listed at 200 mm/sec and pressing speed at 25 mm/sec, on an all-electric servo drive. No return speed is listed. Ram repeatability is ±0.005 mm over the 150 mm stroke.
