Kent CNC KVR-2418A

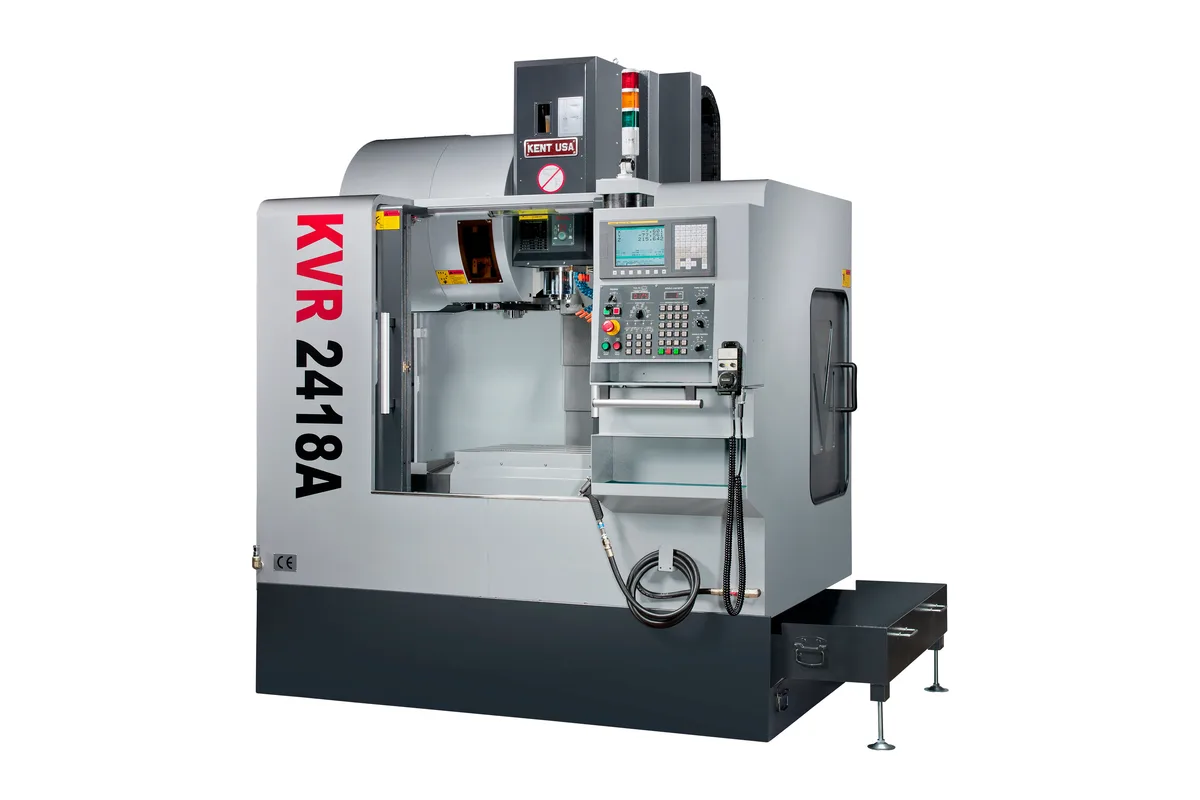

Image: kentusa.com, Kent CNC
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Kent CNC KVR-2418A cost?
Price estimate
We do not have a price for the Kent CNC KVR-2418A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Kent CNC KVR-2418A is the smallest of the KVR vertical machining centers: 24 x 18.1 x 18.9 in (610 x 460 x 480 mm) of travel, a 10,000 rpm CAT 40 spindle rated 15 hp (11.2 kW) and a 24+1 tool double arm side-mount changer. It weighs 8,030 lb (3,642 kg) and occupies 7.7 x 9.5 x 8.9 ft (2,347 x 2,896 x 2,713 mm).
The proportions are nearly square. Y travel of 18.1 in (460 mm) matches the 18.1 in (460 mm) depth of the table, and X travel of 24 in (610 mm) covers most of the 29.9 in (759 mm) table length, so almost the whole table surface is reachable by the spindle. That suits a pair of vises or a single fixture plate, loaded at a table height of 36 in (914 mm) from the floor. Maximum table load is 1,320 lb (599 kg).
Small-envelope machines earn their keep on short cycles, and here the tool changer helps: tool change time is listed at 1.3 s. Tools can be up to 3 in (76 mm) in diameter, 9.8 in (249 mm) long and 12.1 lb (5 kg). The length limit is the one to watch: measure long drills and boring bars against 9.8 in (249 mm) before assuming an existing tool library will transfer. Spindle nose to table distance runs from 3.9 to 22.8 in (99 to 579 mm).
The spindle is cooled by a chilled jacket housing and a chilled motor mount with a refrigeration system, which holds thermal growth down on long runs at speed. The axes ride on roller type linear guide ways with C-3 grade double pre-tensioned ball screws. BT-40 is the optional taper.
The control is the Fanuc 0i-MF with a 10.4 in color LCD and Fanuc Manual Guide 0i for conversational programming. The machine is 4th Axis Ready, pre-wired with cables and connectors for servo and air; the rotary table itself is not in the listed specification. Chips are handled by a flush system and an auger-type conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 24 in (610 mm) |
| Y Axis Travel | 18.1 in (460 mm) |
| Z Axis Travel | 18.9 in (480 mm) |
| Table Size | 29.9 x 18.1 in (759 x 460 mm) |
| Max Table Load | 1,320 lb (599 kg) |
| Table Height From Floor | 36 in (914 mm) |
| Distance Spindle Nose to Table | 3.9-22.8 in (99-579 mm) |
| Spindle Center to Column | 19.7 in (500 mm) |
| Max Spindle Speed | 10,000 rpm |
| Spindle Motor Power | 15 hp (11.2 kW) |
| Spindle Taper | CAT 40 (Opt. BT-40) |
| Spindle Cooling | Chilled spindle jacket housing and chilled spindle motor mount with refrigeration system |
| Tool Capacity | 24+1 tools |
| ATC Type | double arm side-mount automatic tool changer |
| Tool Change Time | 1.3 s |
| Max Tool Diameter (full magazine) | 3 in (76 mm) |
| Max Tool Length | 9.8 in (249 mm) |
| Max Tool Weight | 12.1 lb (5 kg) |
| CNC Control | Fanuc 0i-MF (10.4 in color LCD) |
| Conversational Programming | Fanuc Manual Guide 0i |
| Guideways | Roller type linear guide ways |
| Ballscrews | C-3 grade high precision double pre-tensioned ball screws |
| Fourth Axis | 4th Axis Ready pre-wired with cables and connectors for servo and air |
| Chip Management | Chip flush system and auger-type chip conveyor |
| Machine Dimensions | 7.7 x 9.5 x 8.9 ft (2,347 x 2,896 x 2,713 mm) |
| Machine Weight | 8,030 lb (3,642 kg) |
Specifications sourced from kentusa.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 10,000 rpm, 15 hp (11.2 kW) CAT 40 spindle with a chilled spindle jacket housing and chilled motor mount
- 24+1 tool double arm side-mount changer with a 1.3 s tool change time
- Y travel of 18.1 in (460 mm) equals the table depth, so the full table width is within reach
- 4th Axis Ready: pre-wired with cables and connectors for servo and air
- Fanuc 0i-MF control with Fanuc Manual Guide 0i conversational programming
- Footprint of 7.7 x 9.5 x 8.9 ft (2,347 x 2,896 x 2,713 mm) at 8,030 lb (3,642 kg), lighter than the 8,514 lb (3,862 kg) KVR-3618A
Limitations
- X travel is 24 in (610 mm) and table load 1,320 lb (599 kg), the lowest load of the three KVR sizes; the KVR-4020A takes 1,760 lb (798 kg)
- Maximum tool length is 9.8 in (249 mm)
- Tools are limited to 3 in (76 mm) in diameter and 12.1 lb (5 kg)
- 4th-axis readiness covers wiring and connectors only; the table lists no rotary table
- Kent CNC's table for this model has no through-spindle coolant row
Best For
Frequently Asked Questions
01
X travel is 24 in (610 mm), Y travel 18.1 in (460 mm) and Z travel 18.9 in (480 mm). The table measures 29.9 x 18.1 in (759 x 460 mm), carries up to 1,320 lb (599 kg) and stands 36 in (914 mm) from the floor.
02
A double arm side-mount automatic tool changer holding 24+1 tools, with a listed tool change time of 1.3 s. Maximum tool diameter is 3 in (76 mm), maximum tool length 9.8 in (249 mm) and maximum tool weight 12.1 lb (5 kg).
03
The spindle, tool changer and control are the same: 10,000 rpm, 15 hp (11.2 kW), CAT 40, 24+1 tools and the Fanuc 0i-MF. The KVR-3618A has a longer table of 39.4 x 18.1 in (1,001 x 460 mm) rated at 1,540 lb (699 kg) and weighs 8,514 lb (3,862 kg). The KVR-2418A table is 29.9 x 18.1 in (759 x 460 mm), rated at 1,320 lb (599 kg), on an 8,030 lb (3,642 kg) machine.
04
It is listed as 4th Axis Ready, pre-wired with cables and connectors for servo and air. That covers the preparation. A rotary table is not part of the listed specification, and its weight has to be counted against the 1,320 lb (599 kg) table load.
05
Kent CNC lists a chilled spindle jacket housing and a chilled spindle motor mount with a refrigeration system. The spindle itself is a CAT 40 unit, with BT-40 optional, rated 15 hp (11.2 kW) with a 10,000 rpm maximum.
