Johnford HT-40-2D

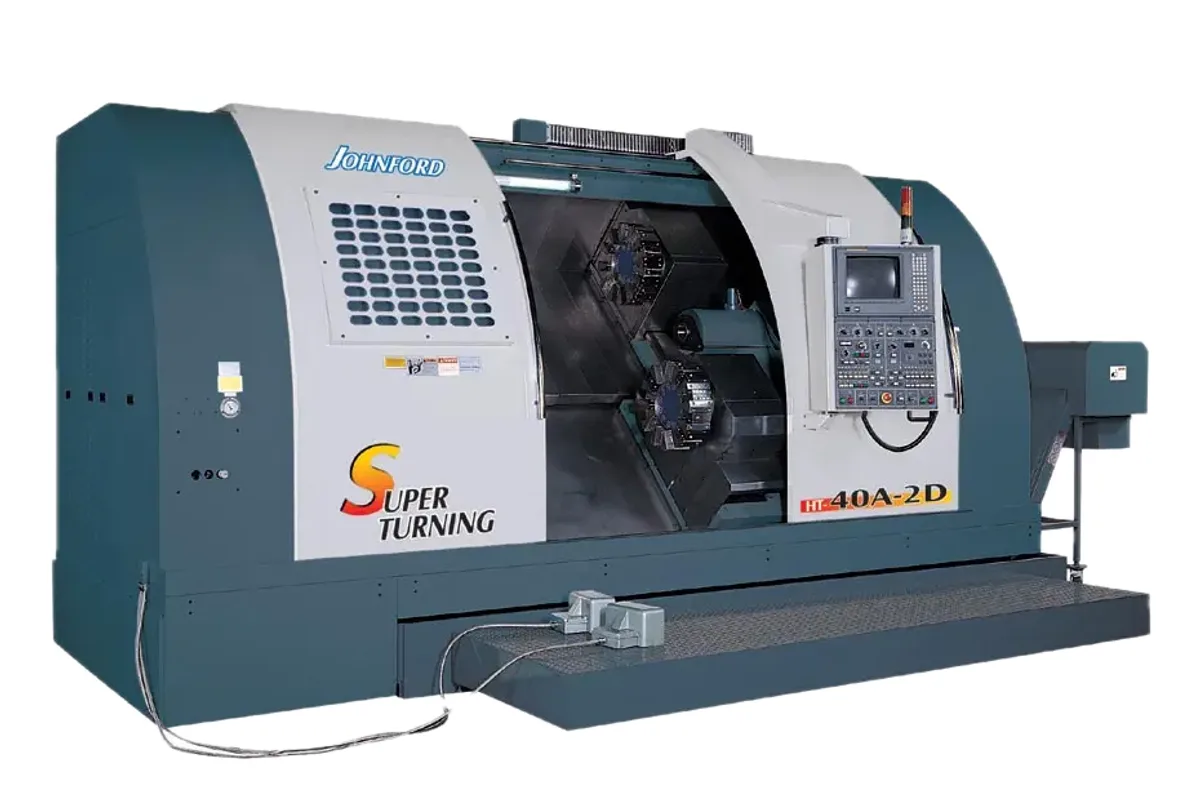

Image: johnford.com.tw, Johnford
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
swing over bed
swing over cross slide
distance between centers
How much does the Johnford HT-40-2D cost?
Price estimate
We do not have a price for the Johnford HT-40-2D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the Johnford HT-40-2D the two turrets do not travel the same distance. Z1 is 1,000 mm (39.4 in) and Z2 is 760 mm (29.9 in), on a bed with 1,000 mm (39.4 in) between centers and Ø750 mm (29.5 in) of swing.
That split is the first thing to plan around. One carriage covers the full length of the part; the other stops short, so a tool on the second turret cannot follow the first all the way along a full-length shaft. Balanced roughing is possible over the shared stretch, and beyond it the long-travel turret works alone.
It is a big machine for its length. Swing over the cross slide is Ø600 mm (23.6 in), each X axis travels 320 mm (12.6 in), and the tailstock quill is Ø200 mm (7.9 in) with an MT#7 taper and 200 mm (7.9 in) of travel. Tailstock travel is 700 mm (27.6 in).
The headstock is ordered as one of five variants. A and B, with A2-8 and A2-11 noses, take 22 / 26 kW (29.5 / 34.9 hp) through an Auto Hi-Lo transmission. C, D and E all use an A2-15 nose and 30 / 37 kW (40.2 / 49.6 hp) with four automatic steps, and run at 1,200 rpm, 1,000 rpm and 750 rpm. Machine weight is 17,000 kg (37,400 lb) with spindle A.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø750 mm (Ø29.5 in) |
| Swing Over Cross Slide | Ø600 mm (Ø23.6 in) |
| Distance Between Centers | 1,000 mm (39.4 in) |
| Chuck Size | A: Ø315 mm (Ø12 in) / B: Ø381 mm (Ø15 in) / C, D: Ø510 mm (Ø20 in) / E: Ø610 mm (Ø24 in) |
| Chuck Size Optional | A: Ø381 mm (Ø15 in) / B: Ø450 mm (Ø18 in) / C, D: Ø610 mm (Ø24 in) |
| Bar Capacity | A: Ø91 mm (Ø3.6 in) / B: Ø116 mm (Ø4.6 in) / C: Ø139 mm (Ø5.5 in) / D: Ø165 mm (Ø6.5 in) / E: Ø204 mm (Ø8 in) |
| Bar Capacity Optional | A: Ø95 mm (Ø3.7 in) |
| Spindle Nose | A: A2-8 / B: A2-11 / C, D, E: A2-15 |
| Spindle Bore | A: Ø115 mm (Ø4.5 in) / B: Ø132.5 mm (Ø5.2 in) / C: Ø152 mm (Ø6 in) / D: Ø185 mm (Ø7.3 in), Geared head Ø176 mm (Ø6.9 in) / E: Ø236 mm (Ø9.3 in) |
| Spindle Transmission | A, B: Auto Hi-Lo / C, D, E: Auto 4-steps |
| Spindle Transmission Optional | B: Auto 4-steps |
| Max Spindle Speed | A: 3,000 rpm for 12 in chuck, 2,000 rpm for 15 in chuck / B: 2,000 rpm for Hi-Lo / C: 1,200 rpm / D: 1,000 rpm / E: 750 rpm |
| Spindle Speed Optional | B: 2,000 rpm for Auto 4-steps |
| Spindle Motor Power | A, B: 22 / 26 kW (29.5 / 34.9 hp); C, D, E: 30 / 37 kW (40.2 / 49.6 hp) |
| Spindle Power Optional | B: 30 / 37 kW (40.2 / 49.6 hp); C, D, E: 37 / 45 kW (49.6 / 60.3 hp) |
| Spindle Bearing Diameter | A: Ø160 mm (Ø6.3 in) / B: Ø180 mm (Ø7 in) / C: Ø200 mm (Ø7.9 in) / D: Ø240 mm (Ø9.4 in) / E: Ø280 mm (Ø11 in) |
| Turret Stations | 12 / 12 |
| X Axis Travel | 320 / 320 mm (12.6 / 12.6 in) |
| Z Axis Travel | 1,000 mm (39.4 in) / 760 mm (29.9 in) |
| Rapid Traverse Rate | X: 12 m/min (472 ipm); Z: 15 m/min (591 ipm) |
| Tailstock Travel | 700 mm (27.6 in) |
| Tailstock Quill Travel | 200 mm (7.9 in) |
| Tailstock Quill Diameter | Ø200 mm (Ø7.9 in) |
| Tailstock Taper Rotary | MT#7 |
| Servo Motor X1 X2 | 4 kW |
| Servo Motor Z1 Z2 | 4 kW |
| Bed Inclination | 45° |
| Machine Weight | A: 17,000 kg (37,400 lb) / B: 17,050 kg (37,510 lb) / C: 17,100 kg (37,620 lb) / D: 17,150 kg (37,730 lb) / E: 17,200 kg (37,840 lb) |
| Machine Dimensions | 5,200 x 3,470 x 2,840 mm (204.7 x 136.6 x 111.8 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Twin 12-station turrets on a Ø750 mm (29.5 in) swing bed
- Ø200 mm (7.9 in) tailstock quill with MT#7 taper
- Five spindle variants with bar capacity from Ø91 mm (3.6 in) to Ø204 mm (8 in)
- 320 mm (12.6 in) of X travel on each turret
- Optional 37 / 45 kW (49.6 / 60.3 hp) motor on variants C, D and E
Limitations
- Z2 travel is 760 mm (29.9 in) against 1,000 mm (39.4 in) on Z1
- Tailstock travel is limited to 700 mm (27.6 in)
- Short bed for a machine of 17,000 kg (37,400 lb)
- Rapids of 12 m/min on X and 15 m/min on Z
Best For
Frequently Asked Questions
01
The row is for the Z1 and Z2 axes, one per turret. Z1 travels 1,000 mm (39.4 in) and Z2 travels 760 mm (29.9 in). Both X axes travel 320 mm (12.6 in).
02
A programmable hydraulic tailstock with a rotary quill. The quill is Ø200 mm (7.9 in) in diameter, has an MT#7 taper and 200 mm (7.9 in) of travel, and the tailstock travels 700 mm (27.6 in) along the bed.
03
A2-8 for variant A, A2-11 for variant B and A2-15 for variants C, D and E. The matching bores are Ø115 mm (4.5 in), Ø132.5 mm (5.2 in), Ø152 mm (6 in), Ø185 mm (7.3 in) and Ø236 mm (9.3 in).
04
The HT-40-2D has two turrets and a tailstock. The HT-40-2S has one turret and a sub-spindle in place of the tailstock, and weighs 16,500 kg (36,300 lb) with spindle A against 17,000 kg (37,400 lb) here.
