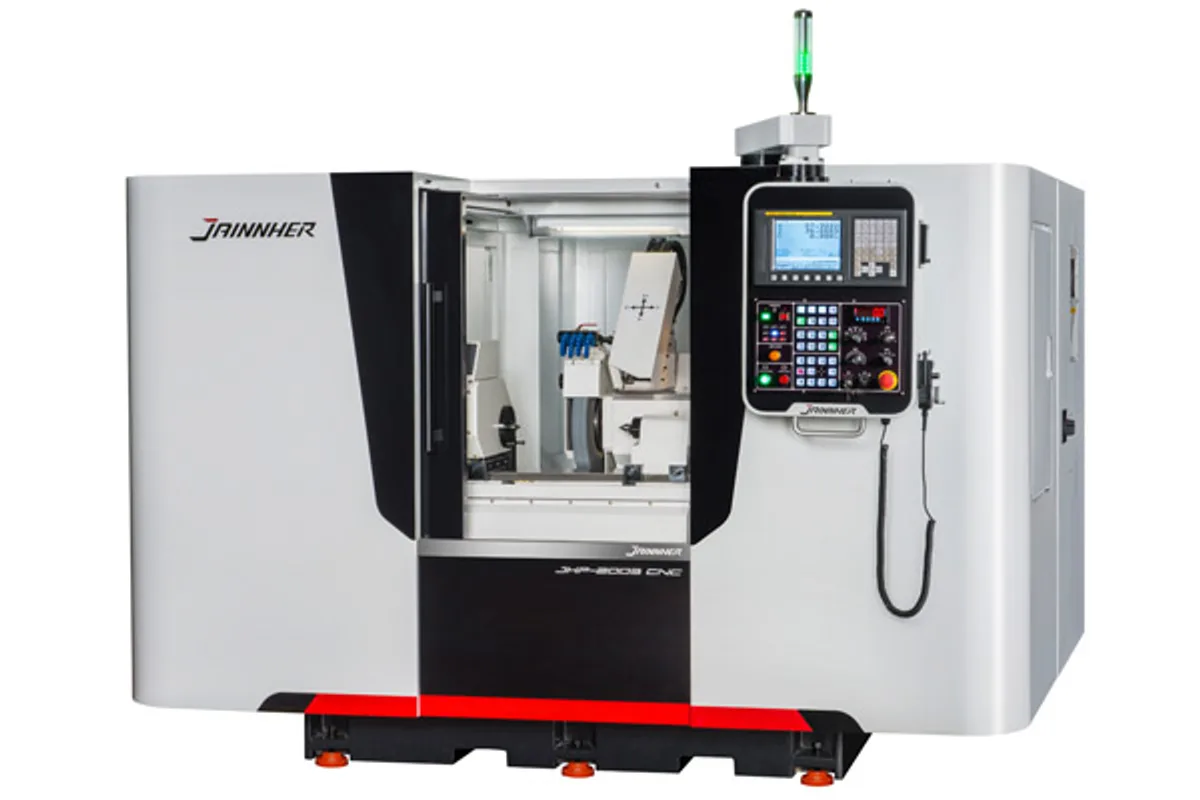

Jainnher JHP-2003CNC

Specs verified 2026-10-05 · jainnher.com Updated 2026-10-05

Image: jainnher.com, Jainnher

Key Specifications

Spindle Power

5 HP (3.7 kW), 4P; optional 7.5 HP (5.6 kW), 4P

grinding type

CNC plunge

max work swing

200 mm (7.9 in)

max grinding length

300 mm (11.8 in)

max grinding diameter

200 mm (7.9 in)

max workpiece weight

80 kg (176 lb)

How much does the Jainnher JHP-2003CNC cost?

Price estimate

Uncertain

We do not have a price for the Jainnher JHP-2003CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Jainnher JHP-2003CNC is the smallest of Jainnher's CNC plunge cylindrical grinders: 200 mm (7.9 in) of swing, 300 mm (11.8 in) between centers and a workpiece limit of 80 kg (176 lb). It is a machine for small shafts, pins and spools ground in volume.

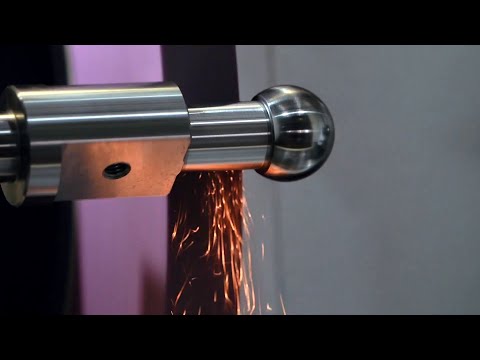

A plunge grinder feeds a straight wheel square into the work, and the table gives the feed angle as 90°. The wheel is Ø355 or Ø405 and runs at 1,780 rpm from a 5 HP (3.7 kW) motor, with 7.5 HP (5.6 kW) optional. Wheel head travel is 220 mm (8.7 in) and the minimum setting unit is 0.0001 mm, backed by an X-axis linear scale that is standard equipment.

Small machines earn their keep on cycle time. The table rapids at 8 m/min (315 ipm) over 640 mm (25.2 in) of travel, and the wheel head at 6 m/min (236 ipm). A touch probe gauge on the standard list finds the shoulder position before grinding, and the hydraulic tailstock is worked by a foot pedal, so loading is quick.

The 2003 size is built more simply than the larger JHP models. Jainnher's table leaves the hydrostatic wheel head rows blank for it, and the oil cooler and the tailstock dressing device are standard only on the bigger machines. Centers are No. 3, with a 48 mm (1.9 in) tailstock sleeve. Fully enclosed, the machine weighs 3,800 kg (8,377 lb); semi enclosed, 3,600 kg (7,937 lb).

Full Specifications

Parameter	Value
Grinding Type	CNC plunge
Max Work Swing	200 mm (7.9 in)
Max Grinding Length	300 mm (11.8 in)
Max Grinding Diameter	200 mm (7.9 in)
Max Workpiece Weight	80 kg (176 lb)
Distance Between Centers	300 mm (11.8 in)
Wheel Size	Ø355 or Ø405
Wheel Speed	1,780 rpm
Max Peripheral Speed	33 m/sec
Wheel Head Feed Angle	90°
Wheel Head Swivel Angle	±0°
Wheel Head Rapid Traverse	6 m/min (236 ipm)
Wheel Head Travel	220 mm (8.7 in)
Wheel Head Min Setting Unit	0.0001 mm
Wheel Head Grinding Feed Rate	0.001 to 6,000 mm/min
Tailstock Sleeve Retraction	30 mm (1.2 in)
Tailstock Sleeve Diameter	48 mm (1.9 in)
Center Taper	NO#3
Work Spindle Speed	10 ~ 500 rpm/min (variable)
Work Spindle Type	Cartridge type (Opt.)
Work Head Swivel Angle	120 (90CCW ; 30CW)
Table Swivel Angle Cw	+10
Table Swivel Angle Ccw	-3
Table Rapid Traverse	8 m/min (315 ipm)
Table Min Setting Unit	0.0001 mm
Table Travel	640 mm (25.2 in)
Table Grinding Feed Rate	0.001 to 6,000 mm/min
Spindle Motor Power	5 HP (3.7 kW), 4P; optional 7.5 HP (5.6 kW), 4P
Work Head Motor	1 kW (1.3 hp)
Z Axis Motor	1.2 kW (1.6 hp)
X Axis Motor	1.2 kW (1.6 hp)
Hydraulic Oil Tank	30 L
Coolant Tank	80 L
Machine Weight Fully Enclosed	3,800 kg (8,377 lb)
Machine Weight Semi Enclosed	3,600 kg (7,937 lb)
Gross Weight Fully Enclosed	4,100 kg (9,039 lb)
Gross Weight Semi Enclosed	3,900 kg (8,598 lb)

Specifications sourced from jainnher.com — verified 2026-10-05

Strengths & Limitations

Strengths

0.0001 mm minimum setting unit on the wheel head and table, with an X-axis linear scale as standard
Table rapid of 8 m/min (315 ipm) and wheel head rapid of 6 m/min (236 ipm)
Touch probe gauge and hydraulic tailstock with foot pedal are standard accessories
Light and compact: 3,800 kg (8,377 lb) fully enclosed

Limitations

Workpieces are limited to 80 kg (176 lb) and 300 mm (11.8 in) between centers
Oil cooler and tailstock dressing device are standard on the other series but not on the 2003 series
No hydrostatic wheel head figures are given for this size
Base wheel motor is 5 HP (3.7 kW); the JHP-3506CNC starts at 7.5 HP (5.6 kW)

Best For

Small shafts, pins and valve spools up to 200 mm (7.9 in) in diameter Plunge grinding of short diameters in volume Cells where a compact machine of 3,800 kg (8,377 lb) is easier to place

Frequently Asked Questions

01 How big a part fits the JHP-2003CNC?

Maximum work swing and maximum grinding diameter are both 200 mm (7.9 in). The distance between centers and the maximum grinding length are 300 mm (11.8 in), and the maximum job weight is 80 kg (176 lb). The work head turns at 10 to 500 rpm.

02 What is left off the JHP-2003CNC compared with the larger plunge grinders?

Jainnher's accessory list marks the oil cooler, the tailstock dressing device and the wheel lifting tool as not applying to the 2003 series. The table also leaves the hydrostatic pressure, wheel head pump and wheel head lubrication rows blank for this size, and the centers are No. 3 instead of No. 4.

03 What wheel does it run?

The table gives the wheel as Ø355 or Ø405, at 1,780 rpm, with a maximum peripheral speed of 33 m/sec. The spindle motor is 5 HP (3.7 kW), 4P, with 7.5 HP (5.6 kW) available as an option.

04 Is the JHP-2003CNC fully enclosed?

It is offered both ways. Fully enclosed it weighs 3,800 kg (8,377 lb) net and 4,100 kg (9,039 lb) gross. Semi enclosed it weighs 3,600 kg (7,937 lb) net and 3,900 kg (8,598 lb) gross. A fully enclosed splash guard with oil mist device is on the standard accessory list.
