Jainnher H160 CNC Cylindrical Roll Grinder

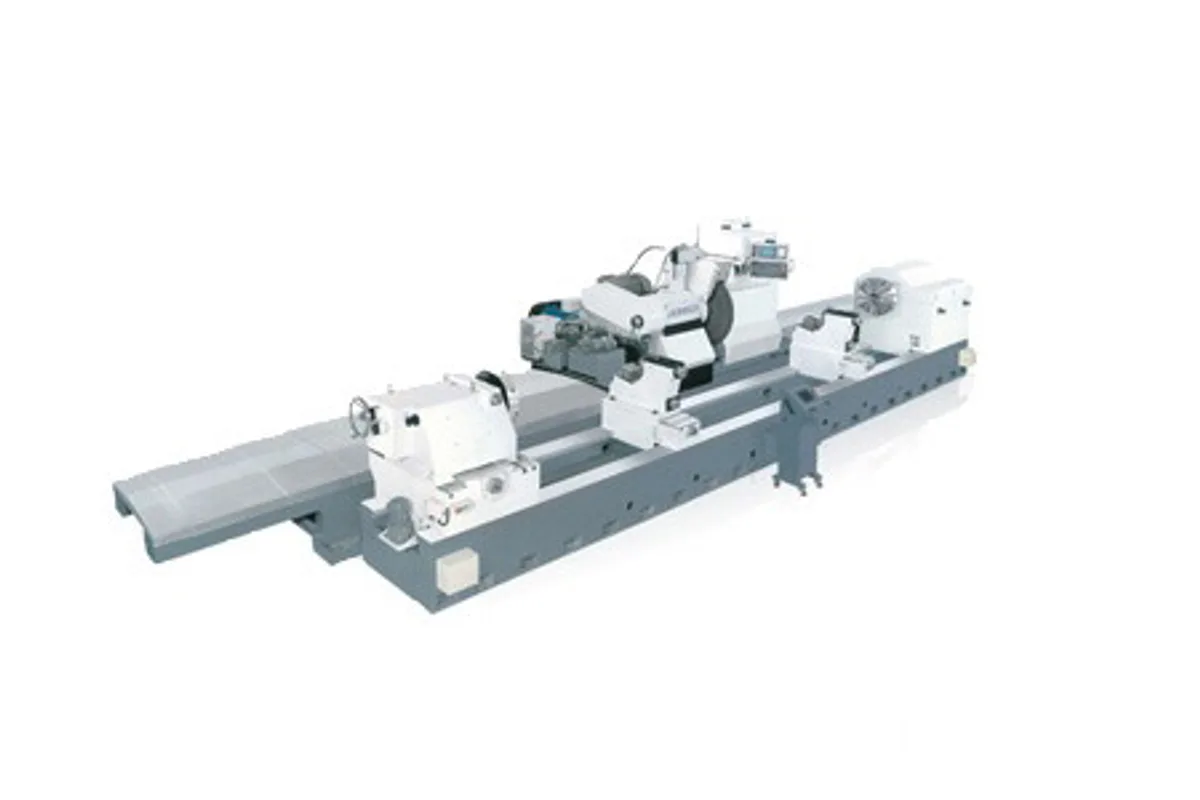

Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
type
max swing over table
distance between centers
max workpiece weight
max grinding diameter
How much does the Jainnher H160 CNC Cylindrical Roll Grinder cost?
Price estimate
We do not have a price for the Jainnher H160 CNC Cylindrical Roll Grinder that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher H160 is a heavy CNC cylindrical roll grinding machine for rolls from 180 to 1,600 mm (7.1 to 63.0 in) in diameter and up to 30,000 kg (66,138 lb). It comes with 5, 6, 7, 8, 10 or 12 m (16.4, 19.7, 23.0, 26.2, 32.8 or 39.4 ft) between centers, the widest choice of lengths in the range.
Rolls of this class are backup rolls and large work rolls for plate and strip mills, and for them the profile matters as much as the diameter. Jainnher's control generates the crown from a program. The curves named are base arc, sine, cosine, CVC and combined arc, and the camber value is entered as a parameter. CVC profiles, whose shape varies continuously along the barrel, cannot be produced by a mechanical crowning attachment, so the CNC is the point of the machine. A special curve grinding program is listed as an option for shapes beyond those.
Checking the result is the other half. A roll caliper is on the options list, as are a linear encoder, an auto balancing system and a portable balancer. On a roll weighing as much as this one can, taking it out to measure is not practical, so budget for the caliper.
The wheel motor is printed as 75 HP (60HPx6P) and the work head motor as 50 HP (40HPx6P), turning the roll at 3 to 30 rpm. Neck supports take 90 ~ 400 mm, or 350-700 mm as an option. Coolant capacity is 2,000 L.
Full Specifications
| Parameter | Value |
|---|---|
| Type | Type H160 |
| Max Swing Over Table | 1,600 mm (63.0 in) |
| Distance Between Centers | 5, 6, 7, 8, 10 or 12 m (16.4, 19.7, 23.0, 26.2, 32.8 or 39.4 ft) |
| Max Workpiece Weight | 30,000 kg (66,138 lb) |
| Max Grinding Diameter | 1,600 mm (63.0 in) |
| Grinding Diameter Range | 180 to 1,600 mm (7.1 to 63.0 in) |
| Wheel Size | Ø910 x Ø304.8 x 80 mm |
| Wheel Head Lubrication | Hydrostatic & dynamic system |
| Wheel Speed | 300 to 1,200 rpm |
| Max Cross Feed Rate | 3,000 mm/min |
| Cross Feed per Pulse | 0.001 mm |
| Table Traverse Speed | 25 to 6,000 mm/min |
| Table Lubrication | Hydrostatic & dynamic system |
| Roll Neck Diameter Range | 90 ~ 400 mm (350-700 mm option) |
| Work Head Speed | 3 to 30 rpm |
| Center Size | PT#100 |
| Tailstock Moving Speed | 2,000 mm/min |
| Quill Stroke | 200 mm (7.9 in) |
| Spindle Motor Power | 75 HP (60HPx6P) |
| Work Head Motor | 50 HP (40HPx6P) |
| Lubricating System Motor | 2 HP |
| Coolant Tank | 2,000 L |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Handles rolls up to 30,000 kg (66,138 lb) and 1,600 mm (63.0 in) in diameter
- Six bed lengths, from 5 to 12 m (16.4 to 39.4 ft) between centers
- CNC-generated crown: base arc, sine, cosine, CVC and combined arc curves
- Optional neck supports for 350-700 mm roll necks
- Network function for transferring cutting data and machine parameters
Limitations
- Roll caliper, linear encoder and auto balancing are optional, not standard
- Smallest grindable diameter is 180 mm (7.1 in)
- Work head speed tops out at 30 rpm
- Jainnher publishes no machine weight or foundation figures for this type
Best For
Frequently Asked Questions
01
Grinding diameters from 180 to 1,600 mm (7.1 to 63.0 in), a 1,600 mm (63.0 in) swing over the table and a maximum workpiece weight of 30,000 kg (66,138 lb). Distance between centers is 5, 6, 7, 8, 10 or 12 m (16.4, 19.7, 23.0, 26.2, 32.8 or 39.4 ft).
02
Jainnher lists the CVC curve among the crown shapes its CNC system produces, together with base arc, sine, cosine and combined arc curves. The camber values are assigned by the program. A special curve grinding program is an optional accessory.
03
A gage is in the standard accessory list. For measuring the roll in place, Jainnher offers a roll caliper as an option, and a linear encoder is optional too. The page also shows an in-process system among the equipment pictures without describing it.
04
The H200 swings 2,000 mm (78.7 in) and carries 40,000 kg (88,183 lb), with a work head motor printed as 75 HP (60HPx6P). The H160 swings 1,600 mm (63.0 in) and carries 30,000 kg (66,138 lb). Wheel, feeds, neck supports and coolant capacity are the same.
