Drake GS:TI280

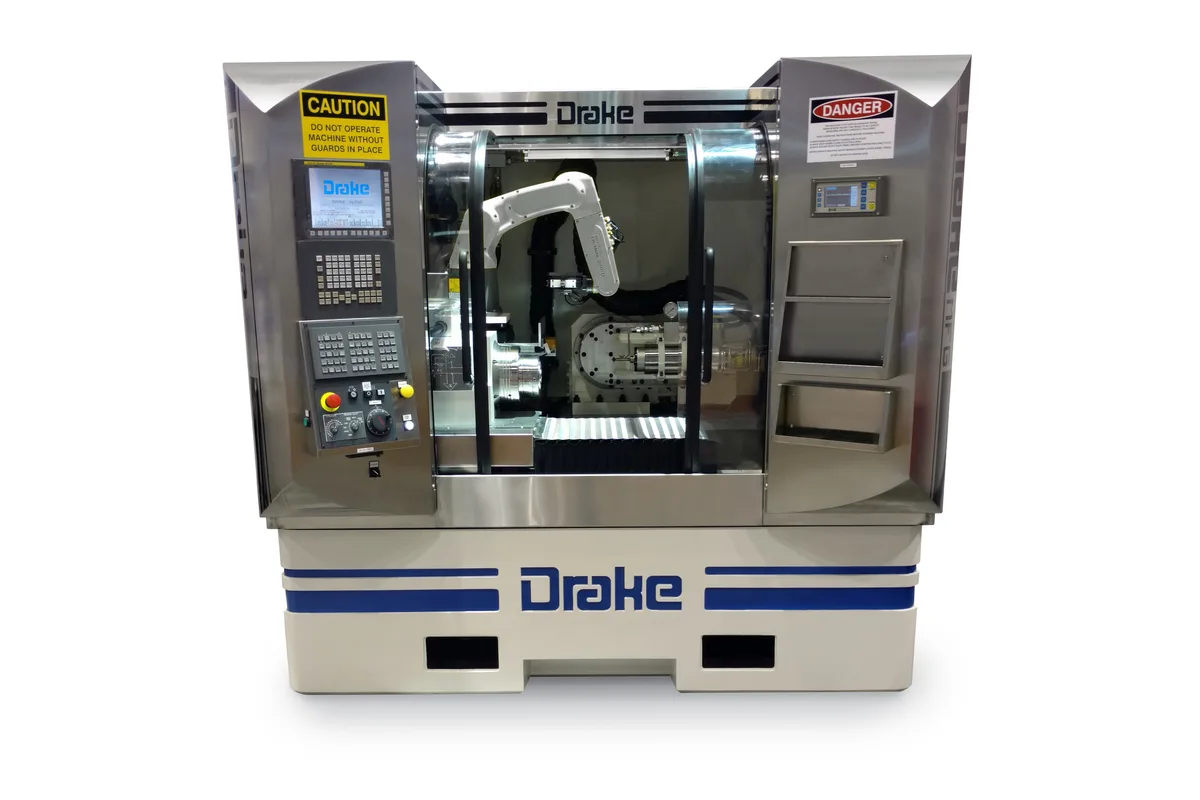

Image: drakemfg.com, Drake
Key Specifications
max swing over table
max internal grind length
wheel size
wheel width
workhead speed
workhead spindle nose
How much does the Drake GS:TI280 cost?
Price estimate
We do not have a price for the Drake GS:TI280 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Drake GS:TI280 is the smallest of Drake's 4-axis CNC internal thread grinders, with 280 mm (11.0 in) of swing over the table and a maximum internal grind length of 190 mm (7.5 in). Drake names ball nuts, thread gages and power steering components as the typical work.
Internal wheels are small by necessity. The standard range is ≤100 mm (3.9 in) in outside diameter and 5-20 mm (0.2-0.8 in) wide, and Drake lists wheel spindle power and speed as various because the spindle is matched to the bore. A small wheel wears quickly, so dressing is frequent; the dresser takes diamond rolls of 115-152 mm (4.5-6.0 in) diameter, up to 32 mm (1.3 in) wide.
The workhead has an A2-8 nose and turns at up to 300 rpm continuous. Compared with the GS:TI240MH, which has 3 CNC axes and a manual helix, this machine sets the helix under CNC and is listed for a 200-600 V supply.
The brochure's standard list includes a high-precision workhead, wheel helix, closed-loop precision feedback, and the SmartForm and TouchDress functions. A part probe and automation are upgrades. The machine weighs 6,750 kg (14,881 lb), measures 2.2 m W x 2.7 m D (86.6 in x 106.3 in) and holds the work 1.1 m (43.3 in) above the floor, the lowest of the three 4-axis GS:TI machines.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Over Table | 280 mm (11.0 in) |
| Max Internal Grind Length | 190 mm (7.5 in) |
| Wheel Size | ≤100 mm (3.9 in) |
| Wheel Width | 5-20 mm (0.2-0.8 in) |
| Workhead Speed | Up to 300 rpm continuous |
| Workhead Spindle Nose | A2-8 |
| Rapid Return Speed | Up to 40 m/min (1,575 ipm) |
| CNC Axes | 4 |
| Power Requirement | 30-45 kVA |
| Power Requirements | 200-600 V |
| Machine Weight | 6,750 kg (14,881 lb) |
| Machine Dimensions | 2.2 m W x 2.7 m D (86.6 in x 106.3 in) |
| Workholding Height | 1.1 m (43.3 in) above the floor |
| Diamond Dresser Roll Diameter | 115-152 mm (4.5-6.0 in) |
| Diamond Dresser Roll Width | Up to 32 mm (1.3 in) |
Specifications sourced from drakemfg.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4 CNC axes with CNC helix, against 3 on the GS:TI240MH
- Maximum internal grind length of 190 mm (7.5 in)
- Lowest workholding height of the 4-axis internal grinders: 1.1 m (43.3 in) above the floor
- Diamond dresser rolls of 115-152 mm (4.5-6.0 in) diameter
- Listed for a 200-600 V supply at 30-45 kVA
Limitations
- Swing over the table is 280 mm (11.0 in); the GS:TI400 has 400 mm (15.7 in)
- Wheel spindle power and speed are listed only as various
- Workhead speed is up to 300 rpm continuous, below the up to 800 rpm continuous of the GS:TI240MH
- Part probe and automation are upgrades
Best For
Frequently Asked Questions
01
Internal threads up to a maximum grind length of 190 mm (7.5 in), on parts and fixtures that swing up to 280 mm (11.0 in) over the table. Drake says its internal thread grinders are typically used for ball nuts, thread gages and power steering components.
02
The standard wheel range is ≤100 mm (3.9 in) in outside diameter and 5-20 mm (0.2-0.8 in) in width. Bore is listed as various. Wheel spindle power and speed are also listed as various, so the spindle is specified with the application.
03
Drake's sources differ. The brochure lists a motorized wheel spindle among the upgrades for internal thread grinders, while the web page lists it under standard features. Confirm the spindle type on Drake's proposal.
04
The GS:TI400 swings 400 mm (15.7 in) over the table, weighs 6,850 kg (15,101 lb) and holds the work 1.2 m (47.2 in) above the floor. The GS:TI280 swings 280 mm (11.0 in), weighs 6,750 kg (14,881 lb) and holds the work 1.1 m (43.3 in) above the floor. Grind length, wheel range and footprint are the same.
05
Weight is 6,750 kg (14,881 lb), overall dimensions are 2.2 m W x 2.7 m D (86.6 in x 106.3 in), and the electrical requirement is 30-45 kVA on a 200-600 V supply. Coolant requirements are not in the brochure table.
