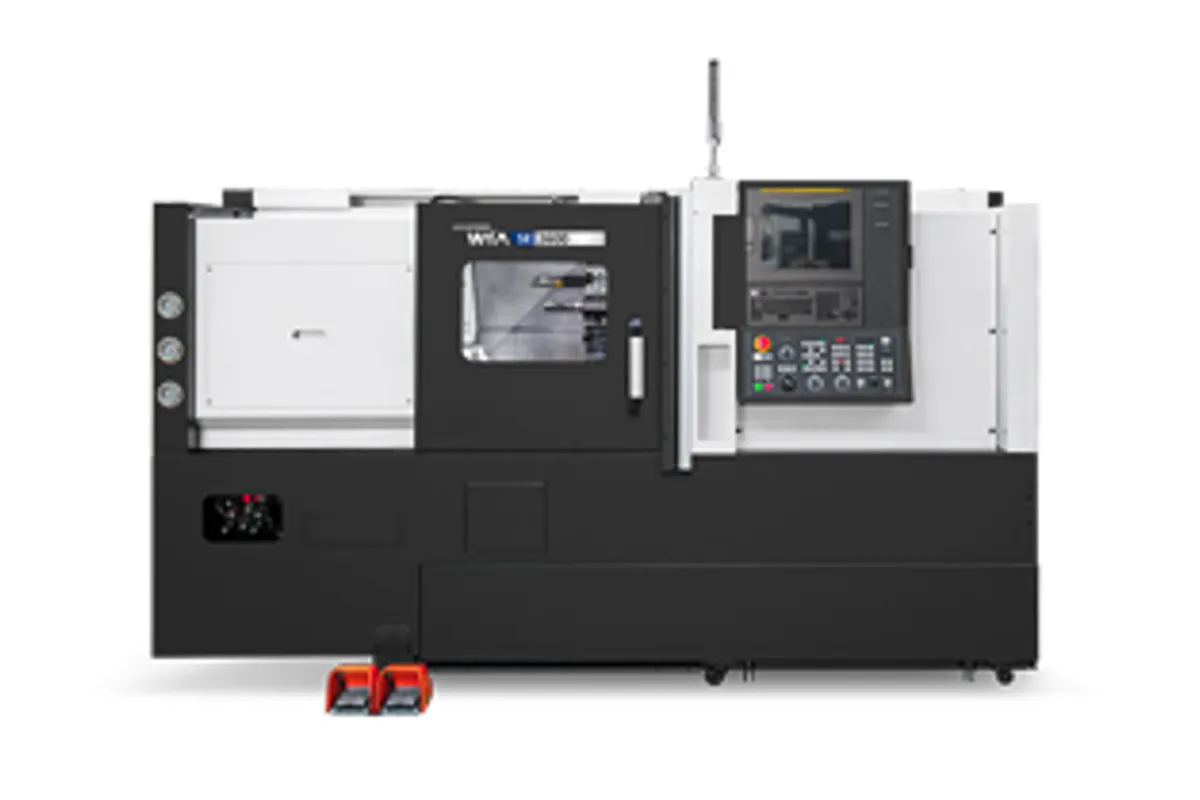

Hyundai WIA SE2600 Series
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA SE2600 Series is a family of four CNC turning centers — SE2600, SE2600L, SE2600M, and SE2600LM — featuring a 10-inch chuck and 18.5/15 kW (25/20 hp) spindle on a roller-guideway platform. Positioned above the SE2200 family, the SE2600 handles larger-diameter, heavier workpieces while maintaining the high-speed characteristics that define the SE-series architecture.
All SE2600 variants share a 3,500 RPM spindle with 470.9/286.4 Nm torque — significantly higher than the SE2200 family — making the SE2600 capable of aggressive roughing on medium-to-large steel, stainless, and cast iron parts. The standard models (SE2600, SE2600M) offer 671/630 mm turning length with 265/255 mm X-axis and 680 mm Z-axis travel. The long-bed variants (SE2600L, SE2600LM) extend Z-axis travel to 1,100 mm with turning lengths up to 1,091 mm (42.9 in).
Maximum turning diameter is 460 mm (18.1 in) on standard models and 380 mm (15 in) on milling variants. The turret provides 10 stations on standard models (25/50 mm tooling) and 12 stations on milling variants (25/40 mm) with 6,000 RPM live tooling. Rapid traverse rates of 30 m/min on both X and Z axes keep cycle times competitive.
Pricing ranges from approximately $80,000-$130,000 new. The SE2600 competes with the DN Solutions Puma 2600, Haas ST-25/ST-30, and Mazak Quick Turn 250M. For shops needing a high-torque 10-inch turning center with modern roller guideway speed and optional long-bed and live tooling configurations, the SE2600 Series offers compelling value.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 460 mm (18.1 in) / 380 mm (15 in) M-variants |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 3,500 RPM |
| Spindle Motor Power | 18.5/15 kW (25/20 hp) |
| Spindle Torque | N.m |
| X Axis Travel | 265 mm (10.4 in) / 255 mm (10 in) M-variants |
| Z Axis Travel | 680 mm (26.8 in) / 1,100 mm (43.3 in) L-variants |
| Rapid Traverse X | 30 m/min (1,181 ipm) |
| Rapid Traverse Z | 30 m/min (1,181 ipm) |
| Turret Stations | 10 standard / 12 M-variants |
| Tool Size | mm |
| Milling Tool Speed | r/min |
| Guideway Type | Roller guideways (LM) |
| Spindle Drive | Belt driven |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 470.9 Nm spindle torque enables aggressive roughing on medium-to-large steel and cast iron parts
- 10-inch chuck with 460 mm max turning diameter handles a wide range of medium and large workpieces
- Long-bed variants extend turning length to 1,091 mm for shaft and bar-type components over 40 inches
- Roller guideways provide higher speed and accuracy than box ways while maintaining rigidity
- Four variants cover standard/long-bed and turning/milling configurations for fleet standardization
- 25/50 mm tool size on standard turret accommodates large boring bars and heavy-duty toolholders
Limitations
- 3,500 RPM spindle speed limits surface speed on small-diameter finishing operations
- Milling variants reduce max turning diameter from 460 mm to 380 mm
- Roller guideways may not match box way damping for extremely heavy interrupted cuts
- 30 m/min rapid traverse is slower than the SE2200's 36 m/min Z-axis rapid
Best For
Frequently Asked Questions
01
The SE2600 uses roller LM guideways while the HD2600 uses box ways. The HD2600 has a more powerful 26 kW spindle with 734 Nm torque versus the SE2600's 18.5 kW and 471 Nm. The SE2600 is faster for production work while the HD2600 excels in heavy-duty interrupted cutting. Pricing is comparable.
02
SE2600 is standard 2-axis (671 mm turning length). SE2600L adds long bed (1,091 mm). SE2600M adds 6,000 RPM live tooling with 12-station turret. SE2600LM combines long bed and live tooling. All share the 10-inch chuck and 3,500 RPM spindle.
03
Pricing ranges from $80,000-$130,000 new. The base SE2600 is at the lower end, while the SE2600LM with long bed and live tooling reaches the upper range.
04
Yes, the 470.9 Nm spindle torque handles aggressive roughing. However, for extremely heavy interrupted cuts or scale removal, the HD2600 with box ways may provide better vibration damping. The SE2600 is better suited to production work where speed and accuracy are prioritized alongside cutting force.
