Hyundai WIA CNC Lathes / Turning Centers

Hyundai WIA L230A

Est. $50,000 - $70,000 Possible older model Specs verified 2026-03-28 · machinio.com Updated 2026-10-03

This model was not found in Hyundai WIA's current lineup when we checked on 2026-09-24 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

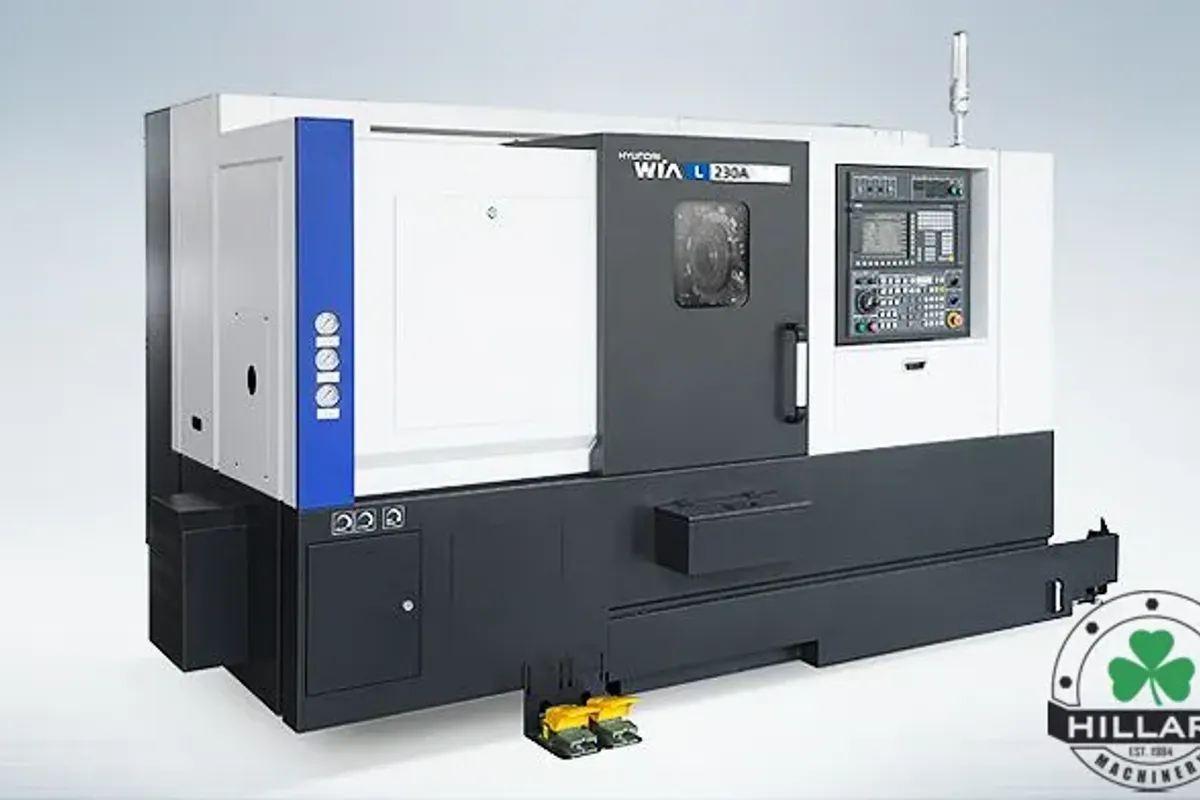

Hyundai WIA L230A CNC Lathes / Turning Centers

Key Specifications

X Travel

220 mm

Z Travel

560 mm

Max Spindle

4,000 RPM

Spindle Power

15/11 kW

Max Turn Length

521 mm

max turning diameter

310 mm

How much does the Hyundai WIA L230A cost?

Estimated price range

Est.$50,000 - $70,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA L230A is a linear-guide turning centre with a maximum turning diameter of 310 mm, a maximum turning length of 521 mm, a 210 mm chuck and 65 mm of bar capacity. It is not in Hyundai WIA's current lineup and may be an older model, so the listed figures matter mainly to a buyer looking at a used machine.

The spindle has an A2-6 nose, runs to 4,000 RPM and is rated 15/11 kW. Travels are 220 mm in X and 560 mm in Z. Swing over the bed is 600 mm (23.6 in), but swing over the carriage is 356 mm (14 in) and turning diameter 310 mm, so the large swing figure describes what clears the bed and not what can be cut.

The turret has 12 stations and is listed as BMT/BOT. Those are two mounting styles, and holders made for one do not fit the other, so look at the turret itself before budgeting for tooling. Guideways are linear guides, which favour quick positioning over the damping of box ways.

The machine occupies 2,760 x 1,685 mm (108.7 x 66.3 in) of floor and stands 1,860 mm (73.2 in) high. No weight, rapid rate or torque is listed. For reference, the L200A is listed with the same 15/11 kW (20/15 hp) and 65 mm (2.56 in) bar capacity on an A2-5 nose at 5,500 RPM, and the L300A steps up to a 10 in (254 mm) chuck and 22 / 18.5 kW (29.5 / 24.8 hp).

Full Specifications

Parameter	Value
Max Turning Diameter	310 mm
Max Turning Length	521 mm
Chuck Size	210 mm
Bar Capacity	65 mm
Swing Over Bed	600 mm (23.6 in)
Swing Over Carriage	356 mm (14 in)
Max Spindle Speed	4,000 RPM
Spindle Motor Power	15/11 kW
Spindle Nose	A2-6
Turret Stations	12
Turret Type	BMT/BOT turret
Guideway Type	Linear guides
Machine Dimensions	2,760 x 1,685 mm (108.7 x 66.3 in)
Machine Height	1,860 mm (73.2 in)
CNC Control	Fanuc i-Series
X-Axis Travel	220 mm
Z-Axis Travel	560 mm

Specifications sourced from machinio.com — verified 2026-03-28

Strengths & Limitations

Strengths

65 mm bar capacity through an A2-6 spindle nose
12-station turret on a machine with 310 mm of maximum turning diameter
4,000 RPM spindle rated 15/11 kW
Linear guides, on a footprint of 2,760 x 1,685 mm (108.7 x 66.3 in)

Limitations

Not in Hyundai WIA's current lineup, so only used machines are on offer
Turning length is 521 mm and Z travel 560 mm, which limits shaft work
The turret is listed as BMT/BOT, so the mount on a given machine has to be checked before buying holders
No torque, rapid traverse or machine weight is listed

Best For

Bar work up to 65 mm in diameter Chuck parts within 310 mm of diameter and 521 mm of length Floor space no larger than 2,760 x 1,685 mm (108.7 x 66.3 in)

Frequently Asked Questions

01 Is the L230A still sold new?

It is not in Hyundai WIA's current lineup and may be an older model. In the present L family the L300A is listed with a 10 in (254 mm) chuck, 500 mm (19.7 in) of turning diameter, 720 mm (28.3 in) of turning length and 22 / 18.5 kW (29.5 / 24.8 hp), which is a size above the L230A.

02 What size work does the L230A handle?

The listed figures are 310 mm of maximum turning diameter, 521 mm of maximum turning length and 65 mm of bar capacity, with a 210 mm chuck. Travels are 220 mm in X and 560 mm in Z. Swing over the carriage is 356 mm (14 in), so parts larger than that cannot pass over the cross slide.

03 What turret does the L230A have?

A 12-station turret, listed as BMT/BOT. The listing does not say which of the two a particular machine carries, and no live-tool speed is given. On a used machine, check the turret face and the holders supplied with it, because replacement tooling has to match the mount.

04 How much floor space does the L230A need?

The machine itself measures 2,760 x 1,685 mm (108.7 x 66.3 in) and is 1,860 mm (73.2 in) high. Add room for the chip conveyor, door opening, electrical cabinet access and, for bar work up to 65 mm, a bar feeder behind the spindle. No machine weight is listed, so obtain it before planning the lift.
