Hyundai WIA Horizontal Machining Centers (HMC)

Hyundai WIA KH6300/8000

Est. $450,000 - $700,000 Specs verified 2026-10-03 · wiamachine.com Updated 2026-10-03

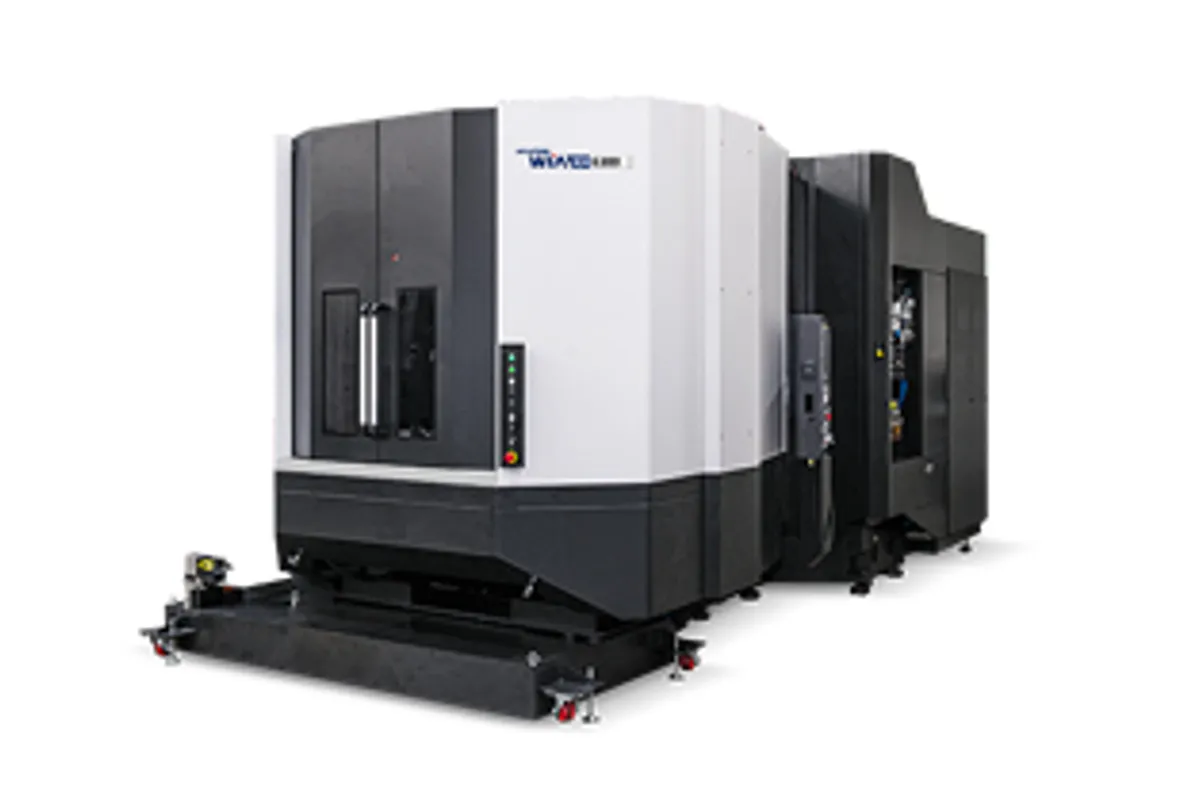

Image: wiamachine.com, Hyundai WIA

Key Specifications

Tool Capacity

Spindle Power

45 / 22 kW

pallet size kh6300

630 x 630 mm (24.8 x 24.8 in)

travel x kh6300

1,050 mm (41.3 in)

travel y kh6300

850 mm (33.5 in)

travel z kh6300

1,000 mm (39.4 in)

How much does the Hyundai WIA KH6300/8000 cost?

Estimated price range

Est.$450,000 - $700,000

Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA KH6300/8000 page covers two gear-driven horizontal machining centers, the KH6300 and the KH8000, which share a BT50 spindle listed at 45 / 22 kW and 2,193 / 1,074 Nm. That torque figure is the reason to look at this pair. The KH1000 lists 807 / 686 N·m and the KH50G 901 / 730 N·m, so the KH6300 and KH8000 carry well over twice the torque of either.

For the KH6300, WIA lists 1,050 mm (41.3 in) of X, 850 mm (33.5 in) of Y and 1,000 mm (39.4 in) of Z over a 630 x 630 mm (24.8 x 24.8 in) pallet, with a maximum workpiece weight of 1,200 kg (2,646 lb) and rapids of 30/30/30 m/min (1,181 ipm). The KH8000 rows give 1,050 mm (41.3 in) of Y and 1,200 mm (47.2 in) of Z, taller and deeper than the KH6300. The table states no X travel, pallet size, load or rapid rate for the KH8000, so those have to come from the quotation.

The spindle is the common part. Drive is through a 2-step gearbox, the tool shank is BT50 and the magazine holds 60 tools. No maximum spindle speed appears in the table. A geared 50-taper spindle with this much torque is aimed at low-speed roughing in steel and cast iron with large cutters; anyone who also needs high rpm for small tools should ask for the speed range before assuming it.

Pallet handling is a 2-pallet rotary trunnion APC, as the row words it, so one pallet is set up while the other is machined.

Full Specifications

Parameter	Value
Pallet Size Kh6300	630 x 630 mm (24.8 x 24.8 in)
Travel X Kh6300	1,050 mm (41.3 in)
Travel Y Kh6300	850 mm (33.5 in)
Travel Z Kh6300	1,000 mm (39.4 in)
Travel Y Kh8000	1,050 mm (41.3 in)
Travel Z Kh8000	1,200 mm (47.2 in)
Spindle Drive	Gear (2-step)
Tool Capacity	60
Pallet Changer	2-pallet rotary trunnion APC
Rapid Traverse Kh6300	30/30/30 m/min (1,181 ipm)
Max Workpiece Weight Kh6300	1,200 kg (2,646 lb)
CNC Control	Fanuc 31i-B Plus
Spindle Drive Type	GEAR BOX
Spindle Motor Power	45 / 22 kW
Tool Shank	BT50
Spindle Torque	2,193 / 1,074 Nm
Catalogue Models	KH6300, KH8000

Specifications sourced from wiamachine.com — verified 2026-10-03

Strengths & Limitations

Strengths

Spindle torque of 2,193 / 1,074 Nm through a 2-step gearbox, on a BT50 tool shank
45 / 22 kW spindle power listed for both the KH6300 and the KH8000
KH6300 travels of 1,050 x 850 x 1,000 mm (41.3 x 33.5 x 39.4 in) over a 630 x 630 mm (24.8 x 24.8 in) pallet
KH8000 extends Y to 1,050 mm (41.3 in) and Z to 1,200 mm (47.2 in)
60-tool magazine and a 2-pallet rotary trunnion APC

Limitations

No maximum spindle speed is listed, so high-rpm capability cannot be judged from the table
The KH8000 has no listed X travel, pallet size, workpiece weight or rapid rate; only its Y and Z travels are given
KH6300 rapids are 30/30/30 m/min (1,181 ipm), well short of the 50 / 50 / 50 m/min listed for the HS10000
KH6300 workpiece weight is limited to 1,200 kg (2,646 lb), which a heavy casting and its fixture can use up quickly

Best For

Heavy roughing in steel and cast iron that needs 2,193 / 1,074 Nm of spindle torque Large face mills, boring bars and big taps on BT50 tooling KH6300: parts within 1,050 x 850 x 1,000 mm (41.3 x 33.5 x 39.4 in) and 1,200 kg (2,646 lb) KH8000: taller parts needing up to 1,050 mm (41.3 in) of Y and 1,200 mm (47.2 in) of Z Two-pallet production with up to 60 tools per job

Frequently Asked Questions

01 What is the difference between the KH6300 and the KH8000?

The table separates them by travel. The KH6300 has 850 mm (33.5 in) of Y and 1,000 mm (39.4 in) of Z; the KH8000 has 1,050 mm (41.3 in) of Y and 1,200 mm (47.2 in) of Z. Spindle power, torque, tool shank and the 60-tool magazine are listed once for both. X travel, pallet size, workpiece weight and rapids are given for the KH6300 only.

02 How much torque does the KH6300/8000 spindle have?

2,193 / 1,074 Nm, with 45 / 22 kW of power, driven through a 2-step gearbox. The table gives the two values in each row without labelling them, and it lists no maximum spindle speed. For comparison, the KH1000 is listed at 807 / 686 N·m.

03 What pallet and workpiece weight does the KH6300 take?

A 630 x 630 mm (24.8 x 24.8 in) pallet with a maximum workpiece weight of 1,200 kg (2,646 lb). Pallets are exchanged by a 2-pallet rotary trunnion APC. The table does not give the equivalent figures for the KH8000.

04 What tooling does the KH6300/8000 use?

BT50 tool shanks in a 60-tool magazine. The table lists no optional larger magazine, no tool change time and no maximum tool size, so check tool length, diameter and weight limits against the cutters the job needs.

05 How fast are the rapids on the KH6300?

30/30/30 m/min (1,181 ipm) on X, Y and Z. That is higher than the 20 / 20 / 20 m/min of the KH1000 and lower than the 50 / 50 / 50 m/min listed for the HS10000. No rapid rate is given for the KH8000.
