Hyundai-WIA HS6308
This model was not found in Hyundai WIA's current lineup when we checked on 2026-09-24 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

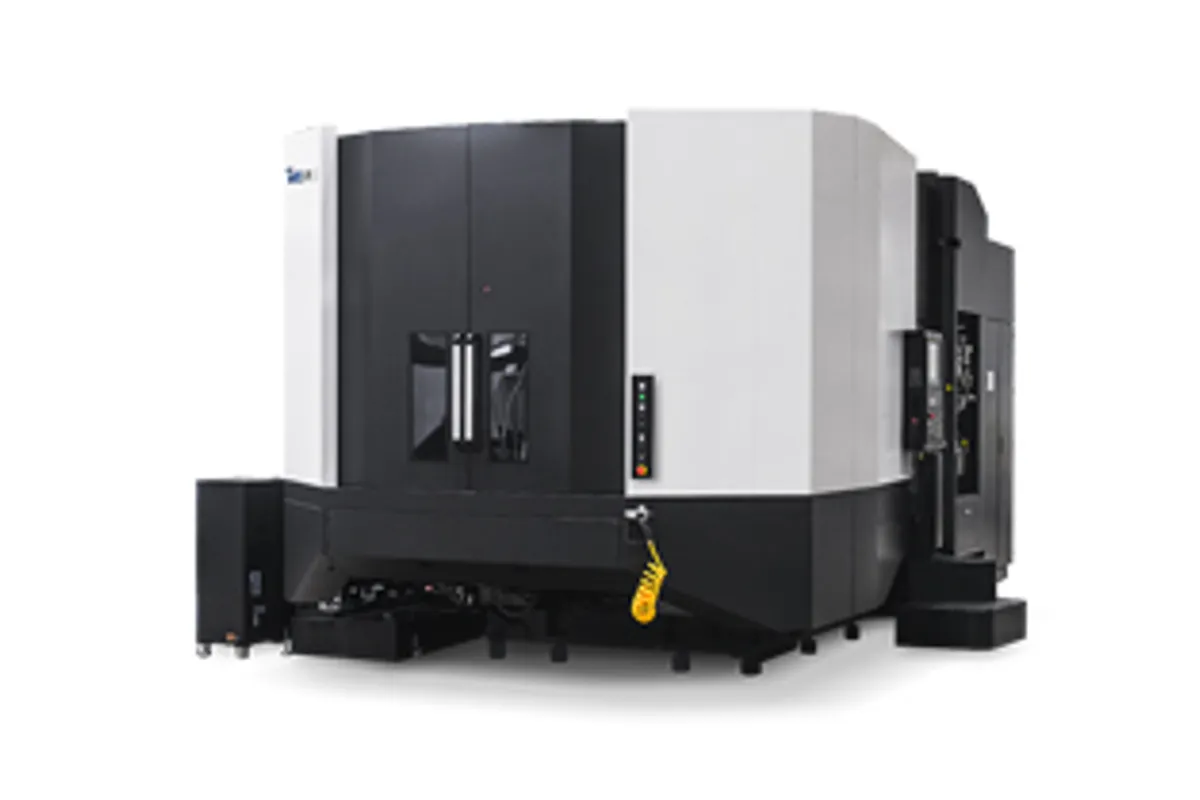

Image: wiamachine.com, Hyundai WIA
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Hyundai-WIA HS6308 cost?
Estimated price range
Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Hyundai WIA. Configuration moves it a long way.
Overview
The Hyundai-WIA HS6308 is a twin-pallet horizontal machining center on 630 x 630 mm (24.8 x 24.8 in) pallets with a 10,000 RPM BBT 50 dual-contact spindle. It is not in Hyundai WIA's current lineup, so the listed figures are a guide for assessing a used machine and should be checked against that machine's documents.
Travels are 1,050 mm (41.3 in) in X, 900 mm (35.4 in) in Y and 1,000 mm (39.4 in) in Z, and every axis rapids at 60 m/min (2,362 ipm). Each of the 2 pallets carries 1,500 kg (3,307 lb). The B axis is listed with 0.001° indexing, so angled faces and bores are not restricted to whole-degree positions.
Speed is what stands out. On the same pallet size, the KH63G lists 900 mm (35.4 in) on each axis, 8,000 RPM and 40/40/40 m/min (1,575 ipm) rapids, with a 60-tool magazine. The HS6308 has the longer X and Z, the faster spindle and the faster axes, and a smaller magazine at 40 tools.
The control is a Fanuc 0i-MF Plus, with the 31i-B5 listed as an option, and machine weight is 16,500 kg (36,376 lb). No spindle power or torque is listed, which is a gap on a 50-taper machine: get the motor rating from the machine's plate before quoting heavy cuts on it.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,050 mm (41.3 in) |
| Y-Axis Travel | 900 mm (35.4 in) |
| Z-Axis Travel | 1,000 mm (39.4 in) |
| Max Spindle Speed | 10,000 RPM |
| Spindle Taper | BBT 50 (dual-contact) |
| Pallet Size | 630 x 630 mm (24.8 x 24.8 in) |
| Number of Pallets | 2 |
| Pallet Load Capacity | 1,500 kg (3,307 lb) per pallet |
| Tool Capacity | 40 |
| Rapid Traverse Rate | 60 m/min (2,362 ipm) all axes |
| B Axis | 0.001° indexing |
| CNC Control | Fanuc 0i-MF Plus (31i-B5 optional) |
| Machine Weight | 16,500 kg (36,376 lb) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 60 m/min (2,362 ipm) rapid traverse on all axes
- 10,000 RPM BBT 50 dual-contact spindle
- Travels of 1,050 mm (41.3 in), 900 mm (35.4 in) and 1,000 mm (39.4 in) in X, Y and Z
- 1,500 kg (3,307 lb) per pallet on 2 pallets of 630 x 630 mm (24.8 x 24.8 in)
- B axis with 0.001° indexing
Limitations
- Not in Hyundai WIA's current lineup
- No spindle power or torque figure is listed
- 40 tools, against 60 tools on the KH63G
- At 16,500 kg (36,376 lb), moving and installing a used machine needs heavy rigging
Best For
Frequently Asked Questions
01
X travel is 1,050 mm (41.3 in), Y is 900 mm (35.4 in) and Z is 1,000 mm (39.4 in). The machine has 2 pallets of 630 x 630 mm (24.8 x 24.8 in), each listed for 1,500 kg (3,307 lb). Rapid traverse is 60 m/min (2,362 ipm) on all axes.
02
A BBT 50 dual-contact spindle with a maximum of 10,000 RPM. The listed figures give no power or torque, so those have to be read from the motor plate or the machine manual. The magazine holds 40 tools.
03
No, it is not in the current lineup. Anyone considering one is buying used, and should confirm the control fitted, since the listed figures show a Fanuc 0i-MF Plus with the 31i-B5 as an option.
04
Both use 630 x 630 mm (24.8 x 24.8 in) pallets. The HS6308 lists 10,000 RPM and 60 m/min (2,362 ipm) rapids with 40 tools. The KH63G lists 8,000 RPM, 40/40/40 m/min (1,575 ipm) rapids, 60 tools and 37/26 kW (50/35 hp), with 900 mm (35.4 in) of travel on each axis.
