Hyundai WIA Horizontal Machining Centers (HMC)

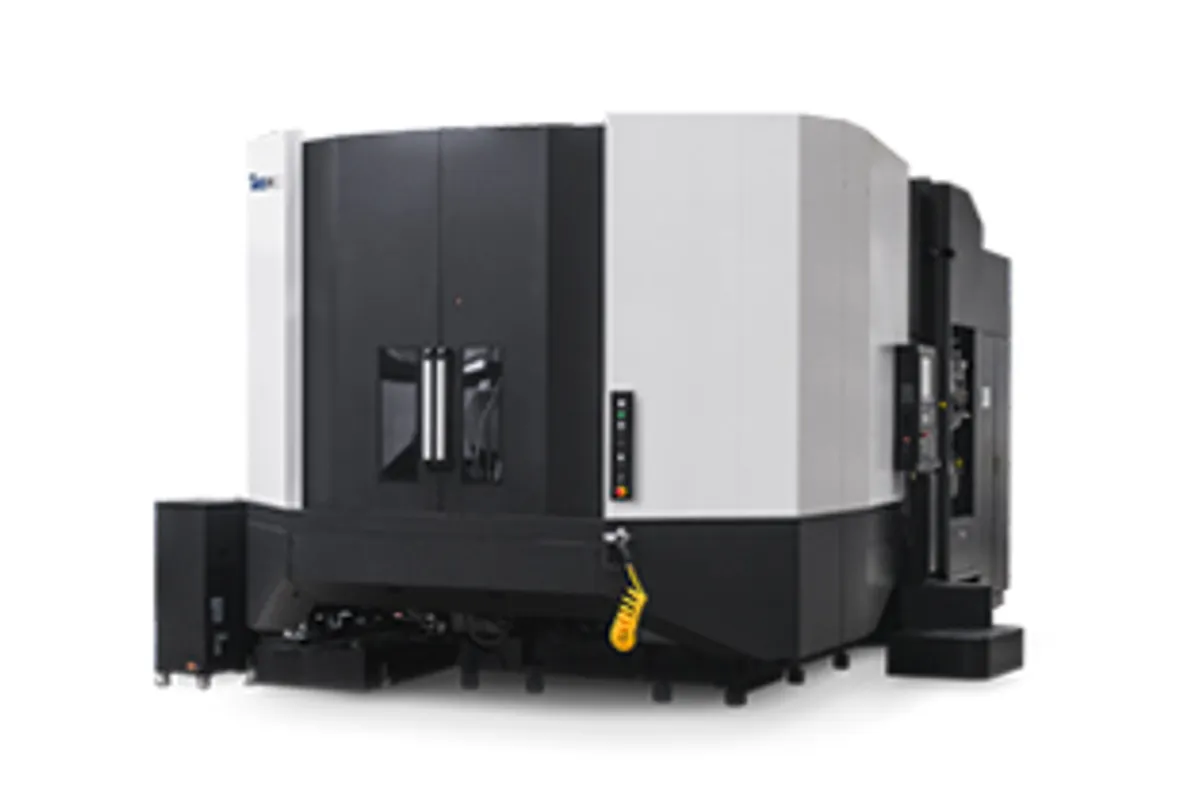

Hyundai WIA HS6300/8000 II

Est. $280,000 - $450,000 Specs verified 2026-10-03 · wiamachine.com Updated 2026-10-03

Image: wiamachine.com, Hyundai WIA

Key Specifications

Tool Capacity

40 [60,90,120]

Spindle Power

45 / 25 kW

hs6300 ii travel

1,050 x 900 x 1,000 mm

hs8000 ii travel

1,400 x 1,200 x 1,370 mm

pallet size hs6300

630 x 630 mm (2)

pallet size hs8000

800 x 800 mm (2)

How much does the Hyundai WIA HS6300/8000 II cost?

Estimated price range

Est.$280,000 - $450,000

Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Hyundai WIA. Configuration moves it a long way.

Overview

The Hyundai WIA HS6300/8000 II is a pair of twin-pallet horizontal machining centers with a BBT50 built-in spindle listed at 45 / 25 kW and 623 / 305 Nm. The HS6300 II works on 630 x 630 mm pallets loaded to 1,500 kg. The HS8000 II works on 800 x 800 mm pallets loaded to 2,000 kg.

The two sizes sit further apart in travel than the pallet figures suggest. The HS6300 II lists 1,050 / 900 / 1,000 mm in X, Y and Z. The HS8000 II lists 1,400 / 1,200 / 1,370 mm, a clear step up on every axis. Rapid traverse goes the other way: 60 / 60 / 60 m/min on the HS6300 II and 50 / 50 / 50 m/min on the HS8000 II.

Both sizes carry one spindle rating, and it matches what the HS10000 lists for its standard spindle, 45 / 25 kW and 623 / 305 N·m. Moving up this range therefore buys envelope and pallet load, not a harder cut. The step from the machines below is the large one: the HS4000/5000 II lists 30 / 18.5 kW and 230 / 119 Nm in its main rows.

Tool capacity is 40, with 60, 90 and 120 bracketed as the larger magazines. WIA's table for this series gives no spindle speed, machine weight or control, so ask for the speed and torque diagram along with the quotation.

Full Specifications

Parameter	Value
Hs6300 Ii Travel	1,050 x 900 x 1,000 mm
Hs8000 Ii Travel	1,400 x 1,200 x 1,370 mm
Pallet Size Hs6300	630 x 630 mm (2)
Pallet Size Hs8000	800 x 800 mm (2)
Pallet Load Hs6300	1,500 kg
Pallet Load Hs8000	2,000 kg
Tool Capacity	40 [60,90,120]
Rapid Traverse Hs6300	60 m/min
Rapid Traverse Hs8000	50 m/min
Max Table Load	HS6300 II: 2 - 1,500 kg; HS8000 II: 2 - 2,000 kg
Pallet Size	HS6300 II: 2 - 630 x 630 mm; HS8000 II: 2 - 800 x 800 mm
Rapid Traverse Xyz	HS6300 II: 60 / 60 / 60 m/min; HS8000 II: 50 / 50 / 50 m/min
Spindle Drive Type	Built-in
Spindle Motor Power	45 / 25 kW
Tool Shank	BBT50
Spindle Torque	623 / 305 Nm
Travel Xyz	HS6300 II: 1,050 / 900 / 1,000 mm; HS8000 II: 1,400 / 1,200 / 1,370 mm
Catalogue Models	HS6300 II, HS8000 II

Specifications sourced from wiamachine.com — verified 2026-10-03

Strengths & Limitations

Strengths

BBT50 built-in spindle with 45 / 25 kW and 623 / 305 Nm on both sizes
HS6300 II rapids of 60 / 60 / 60 m/min with 1,050 / 900 / 1,000 mm of travel
HS8000 II takes 2,000 kg per pallet on 800 x 800 mm pallets
Travels of 1,400 / 1,200 / 1,370 mm on the HS8000 II
40-tool magazine with 60, 90 and 120 listed as larger sizes

Limitations

No spindle speed is listed in WIA's table for the series
HS8000 II rapids drop to 50 / 50 / 50 m/min
Pallet load on the HS6300 II is 1,500 kg, which a large cast fixture can use up quickly
No machine weight, control or accuracy rows are given

Best For

Steel and cast iron housings on 630 x 630 mm pallets Large gearbox and pump cases within 1,400 / 1,200 / 1,370 mm on the HS8000 II Fixtures and parts up to 2,000 kg on the HS8000 II Two-pallet production where 623 / 305 Nm is needed at the spindle

Frequently Asked Questions

01 What is the difference between the HS6300 II and the HS8000 II?

The HS6300 II has two 630 x 630 mm pallets at 1,500 kg, travels of 1,050 / 900 / 1,000 mm and rapids of 60 / 60 / 60 m/min. The HS8000 II has two 800 x 800 mm pallets at 2,000 kg, travels of 1,400 / 1,200 / 1,370 mm and rapids of 50 / 50 / 50 m/min. Spindle and tool capacity are listed once for both.

02 What spindle is fitted to the HS6300/8000 II?

A built-in BBT50 spindle listed at 45 / 25 kW and 623 / 305 Nm. The rows on this page do not include a maximum speed. The HS10000 lists the same power and torque with a standard speed of 10,000 rpm, but confirm the speed for this series with WIA.

03 How many tools does the HS6300/8000 II carry?

40 tools as the first figure, with 60, 90 and 120 given in brackets in WIA's table. With BBT50 tooling the magazine size is worth settling early, because large boring bars and face mills are slow to swap by hand.

04 How does the HS6300/8000 II compare with the HS4000/5000 II?

It is the heavier-duty series. The HS4000/5000 II lists 30 / 18.5 kW and 230 / 119 Nm with pallet loads of 400 kg and 500 kg. The HS6300/8000 II lists 45 / 25 kW and 623 / 305 Nm with pallet loads of 1,500 kg and 2,000 kg.
