Hermle C 62 U
Key Specifications
Spindle Taper
Rapid Traverse
Max Workpiece ⌀
Accuracy
Repeatability
x axis travel
Overview

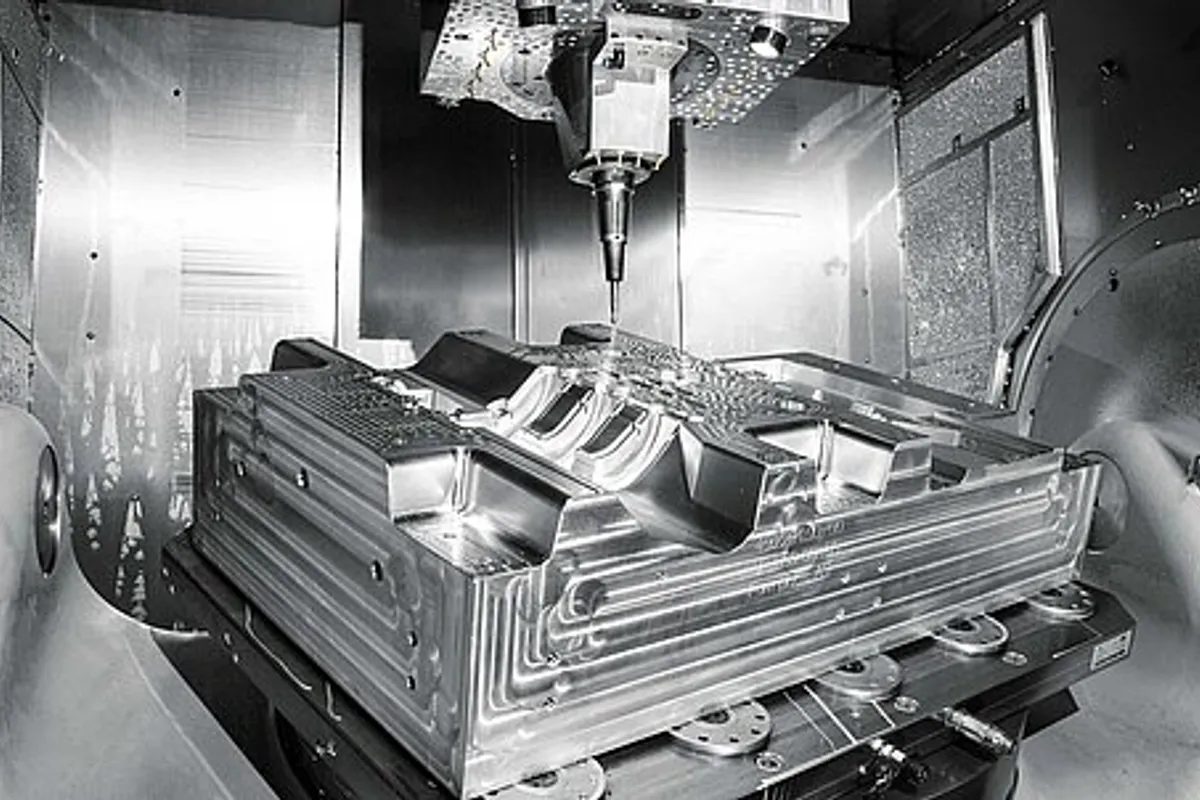

The Hermle C 62 U is the flagship large-capacity 5-axis machining center in Hermle's High-Performance Line, designed for the largest aerospace structural parts, mold and die work, and energy sector components. With X/Y/Z travels of 1,200 x 1,300 x 900 mm (47.2 x 51.2 x 35.4 in) and a trunnion table rated for 2,500 kg (5,512 lb), the C 62 U operates at a scale that few 5-axis trunnion-table machines can match.
The Z-axis travel of 900 mm is a significant dimension — it provides the depth needed for deep-cavity mold work and tall aerospace structural components. The swiveling rotary table measures 1,350 x 1,100 mm with a collision circle of 1,400 mm (55.1 in) and vertical table clearance of 1,100 mm. Maximum workpiece diameter is 1,200 mm.
Spindle options include 9,000, 14,000, and 18,000 rpm on HSK-A63 with 29 kW (39 hp) continuous power. The torque-oriented spindle options reflect the heavy-duty roughing requirements at this machine scale. Rapid traverse is 50 m/min (1,969 ipm) on all linear axes.
Hermle's gantry-style column architecture maintains rigidity and thermal stability across the full working volume. The mineral-cast base weighs approximately 26,000 kg total. Positioning accuracy is +/- 0.005 mm with repeatability of +/- 0.003 mm. Control options include Heidenhain TNC 640 or Siemens 840D sl. The 60-tool standard magazine expands to 325 positions.
The C 62 U competes with the DMG Mori DMU 125/160 and Starrag Ecospeed series. New pricing runs $1,050,000-$1,550,000. This is the machine for shops that need the absolute largest Hermle platform with full 5-axis capability.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 1,300 mm (51.2 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| A Axis Swivel | +30 / -130 degrees (160 degrees total) |
| C Axis | 360 degrees continuous |
| Collision Circle | Ø 1400 mm |
| Table Dimensions | 1,350 x 1,100 mm (53.1 x 43.3 in) |
| Max Workpiece Diameter | 1,200 mm (47.2 in) |
| Table Load Capacity | 2,500 kg (5,512 lb) |
| Vertical Clearance | 1,100 mm (43.3 in) max |
| Spindle Speed | 9,000 / 14,000 / 18,000 rpm |
| Spindle Motor | 29 kW (39 hp) continuous |
| Spindle Taper | HSK-A63 |
| Tool Magazine | 60 positions (expandable to 325) |
| Rapid Traverse Rate | 50 m/min (1,969 ipm) |
| Positioning Accuracy | +/- 0.005 mm (0.0002 in) |
| Repeatability | +/- 0.003 mm (0.00012 in) |
| Machine Base | Mineral cast |
| CNC Control | Heidenhain TNC 640 or Siemens 840D sl |
| Machine Weight | 26,000 kg (57,320 lb) |
| Power Supply | 400V, 3-phase, 50/60 Hz |
| Traverse Path | 1200 x 1300 x 900 mm |
| Body | Ø 1200 / H 900 |
| Vertical Table Clearance | max. 1100 mm |
| Rotational Speed | 9000/14000/18000 1/min |
| Rapid Traverse Linear X Y Z | 50m/min. |
| Swivelling Rotary Table | ø 1350 x 1100 mm |
| Max Table Loading | 2500 kg |
Specifications sourced from hermle.de — verified 2026-03-28
Strengths & Limitations
Strengths
- Largest Hermle 5-axis at 1,200 x 1,300 x 900 mm — handles true aerospace structural scale
- 900 mm Z-travel provides exceptional depth for deep-cavity mold and tall aerospace parts
- 2,500 kg table load accommodates heavy titanium and steel forgings
- 325-tool magazine option supports the most complex multi-operation programs
- Gantry column architecture maintains rigidity and accuracy across the full envelope
- 26,000 kg mineral-cast base delivers outstanding vibration damping at scale
Limitations
- Investment exceeds $1 million — justified only for large-part aerospace or energy applications
- 26,000 kg machine weight requires significant foundation engineering
- Hermle service network is smaller than DMG Mori or Mazak at this machine scale
- 50 m/min rapids are moderate for a machine of this size
Best For
Frequently Asked Questions
01
The C 62 U offers 200 mm more X, 200 mm more Y, 150 mm more Z, 500 kg more table capacity, and a much larger collision circle (1,400 vs 1,290 mm). The C 62 U targets true large-format aerospace and energy work.
02
New machines run $1,050,000-$1,550,000 depending on spindle, tool magazine, and automation options.
03
Yes, the C 62 U MT adds 800 rpm turning capability via direct-drive torque motor on the C-axis table, priced approximately $200,000-$300,000 higher.
04
At 26,000 kg, a properly engineered reinforced concrete foundation meeting Hermle's load and vibration isolation specifications is required. Foundation engineering consultation is recommended.
