Haas VF-14/50

Q: How much does the Haas VF-14/50 cost?

Haas Automation publishes a list price of US$476,995 for the Haas VF-14/50 (verified 2026-10-02). Options, tooling, freight and installation are extra, so a dealer quote will differ. A specific price can be requested at https://machinetoolindex.com/machines/haas-vf-14-50#price; the request is passed to Haas Automation or an authorised dealer.

List US$476,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

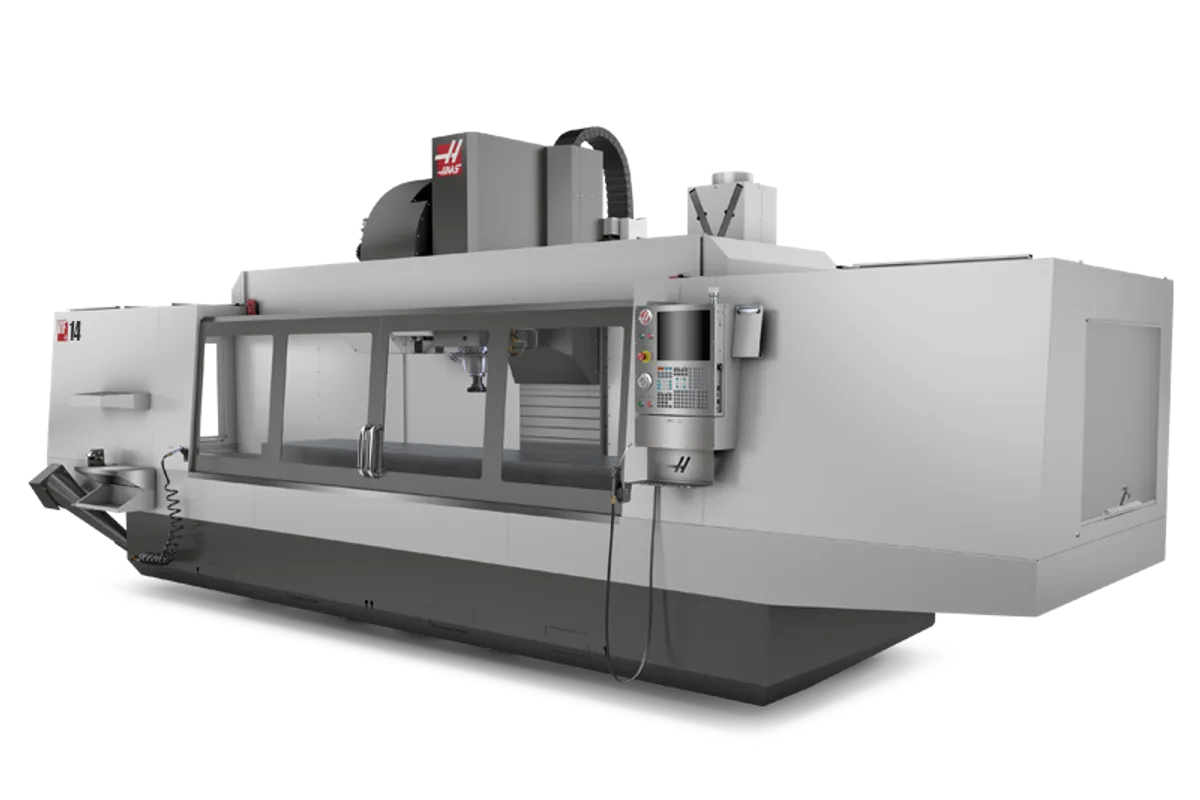

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

150 in (3,810 mm)

Y Travel

40 in (1,016 mm)

Z Travel

30 in (762 mm)

Max Spindle

7,500 rpm

Spindle Taper

CT or BT 50

Tool Capacity

30+1

How much does the Haas VF-14/50 cost?

Manufacturer list price

US$476,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas VF-14/50 combines the two upgrades Haas offers on its 150 in (3,810 mm) VF bed: 40 in (1,016 mm) of Y travel and a 50-taper geared spindle. Travels are 150 × 40 × 30 in (3,810 × 1,016 × 762 mm), and the 2-speed gearbox gives 340 ft-lbf (460 N·m) at 700 rpm with a 7,500 rpm top speed. Haas lists a starting price of US$476,995.

Each upgrade is available alone. The VF-12/50 has this spindle with 32 in (813 mm) of Y, and the VF-14/40 has this Y travel with an 8,100 rpm 40-taper spindle making 90 ft-lbf (122 N·m) at 2,000 rpm. Haas lists the VF-12/50 and the VF-14/40 at the same starting price, US$433,995. The VF-14/50 is for work that is wide and also needs the torque: large steel plates, weldments and frames, face-milled and bored with big tools.

With CT or BT 50 tooling the changer takes tools up to 30 lb (13.6 kg), 16 in (406 mm) long and 4 in (102 mm) in diameter, or 10 in (254 mm) with empty pockets either side. Thrust is 3,400 lbf (15,124 N) on X, 4,100 lbf (18,238 N) on Y and 5,600 lbf (24,910 N) on Z. Spindle power is 30 hp (22.4 kW), unchanged from the VF-14/40. The gearbox multiplies torque at low speed; it does not add power, so metal removal at high rpm is no greater.

Three figures need checking against the job before anything else. The table is 150 × 28 in (3,810 × 711 mm), shallower than the Y stroke. The table load is 4,000 lb (1,814 kg), and wide steel work reaches it fast. X rapids are 360 ipm (9.1 m/min). For installation, Haas's shipping figures are 37,200 lb (16,874 kg) and a domestic pallet of 344 × 120 × 140 in (874 × 305 × 356 cm), so the route into the building deserves a survey.

Full Specifications

Parameter	Value
X-Axis Travel	150 in (3,810 mm)
Y-Axis Travel	40 in (1,016 mm)
Z-Axis Travel	30 in (762 mm)
Spindle Nose to Table (max)	35 in (889 mm)
Spindle Nose to Table (min)	5 in (127 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	7,500 rpm
Spindle Torque	340 ft-lbf @ 700 rpm (460 N·m @ 700 rpm)
Spindle Drive	2-Speed Gearbox
Spindle Taper	CT or BT 50
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Table Size	150 × 28 in (3,810 × 711 mm)
T-Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
T-Slot Center Distance	4.92 in (125 mm)
T-Slots	5
Max Table Load	4,000 lb (1,814 kg)
Max Cutting Feedrate	360 ipm (9.1 m/min)
Rapid Traverse X	360 ipm (9.1 m/min)
Rapid Traverse Y	600 ipm (15.2 m/min)
Rapid Traverse Z	600 ipm (15.2 m/min)
Max Thrust X	3,400 lbf (15,124 N)
Max Thrust Y	4,100 lbf (18,238 N)
Max Thrust Z	5,600 lbf (24,910 N)
Tool Changer Type	SMTC
Tool Capacity	30+1
Max Tool Diameter (full magazine)	4 in (102 mm)
Max Tool Diameter (adjacent pockets empty)	10 in (254 mm)
Max Tool Length	16 in (406 mm)
Max Tool Weight	30 lb (13.6 kg)
Tool Change (tool-to-tool)	4.2 s
Tool Change (chip-to-chip)	6.3 s
Coolant Capacity	95 gal (360 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	344 × 120 × 140 in (874 × 305 × 356 cm)
Shipping Export Crate	344 × 122 × 133.5 in (874 × 310 × 339 cm)
Machine Weight	37,200 lb (16,874 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

Combines 150 × 40 × 30 in (3,810 × 1,016 × 762 mm) travels with 340 ft-lbf (460 N·m) at 700 rpm
CT or BT 50 spindle on a 2-speed gearbox, liquid cooled, with air/oil injection bearing lubrication
Tool capacity of 30+1, with tools up to 10 in (254 mm) in diameter when adjacent pockets are empty
Spindle nose to table distance runs from 5 in (127 mm) to 35 in (889 mm)
Y and Z rapids of 600 ipm (15.2 m/min)

Limitations

Table load stays at 4,000 lb (1,814 kg) despite the size of the envelope
Table depth is 28 in (711 mm) under 40 in (1,016 mm) of Y travel
6.3 s chip to chip and 360 ipm (9.1 m/min) X rapids make it a poor fit for short-cycle parts
Spindle power is 30 hp (22.4 kW), no more than the VF-14/40
Ships at 37,200 lb (16,874 kg) on a pallet 344 in (874 cm) long, so rigging and access need planning

Best For

Wide steel plate and weldments needing 40 in (1,016 mm) of Y and gearbox torque Boring and face milling large frames with 50-taper tools Long structural parts drilled and milled in one clamping Large parts that would need repositioning on a shorter or narrower machine

Frequently Asked Questions

01 What does the VF-14/50 offer that the VF-14/40 does not?

Torque and tool size. The VF-14/40 spindle makes 90 ft-lbf (122 N·m) at 2,000 rpm and reaches 8,100 rpm in CT40, BT40 or HSK-A63. The VF-14/50 makes 340 ft-lbf (460 N·m) at 700 rpm through a 2-speed gearbox, reaches 7,500 rpm, and takes CT or BT 50 tools of up to 30 lb (13.6 kg). Travels and the table are identical. Haas lists the VF-14/40 at 36,300 lb (16,466 kg) shipped and the VF-14/50 at 37,200 lb (16,874 kg).

02 How does the VF-14/50 differ from the VF-12/50?

Only Y travel differs in the headline figures: 40 in (1,016 mm) on the VF-14/50 and 32 in (813 mm) on the VF-12/50. Both have 150 in (3,810 mm) of X, 30 in (762 mm) of Z, a 150 × 28 in (3,810 × 711 mm) table, a 4,000 lb (1,814 kg) table load and the 7,500 rpm geared spindle.

03 How large is the VF-14/50 to ship and move?

Haas gives a shipping weight of 37,200 lb (16,874 kg). The domestic pallet is listed as 344 × 120 × 140 in (874 × 305 × 356 cm) and the export crate as 344 × 122 × 133.5 in (874 × 310 × 339 cm). These are shipping sizes and say nothing about the installed layout, which should be confirmed from Haas's drawings before a foundation or door opening is planned.

04 What are the feedrates and axis thrust figures?

Maximum cutting feedrate is 360 ipm (9.1 m/min). Rapids are 360 ipm (9.1 m/min) on X and 600 ipm (15.2 m/min) on Y and Z. Maximum thrust is 3,400 lbf (15,124 N) on X, 4,100 lbf (18,238 N) on Y and 5,600 lbf (24,910 N) on Z.

05 What tooling does the VF-14/50 spindle take?

CT or BT 50. The side-mount changer holds 30+1 tools, each up to 16 in (406 mm) long and 30 lb (13.6 kg). Diameter is limited to 4 in (102 mm) with a full magazine and 10 in (254 mm) with the adjacent pockets empty. Tool-to-tool time is 4.2 s and chip-to-chip time is 6.3 s.
