Haas ST-10LY
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
max swing
max cutting diameter
Overview

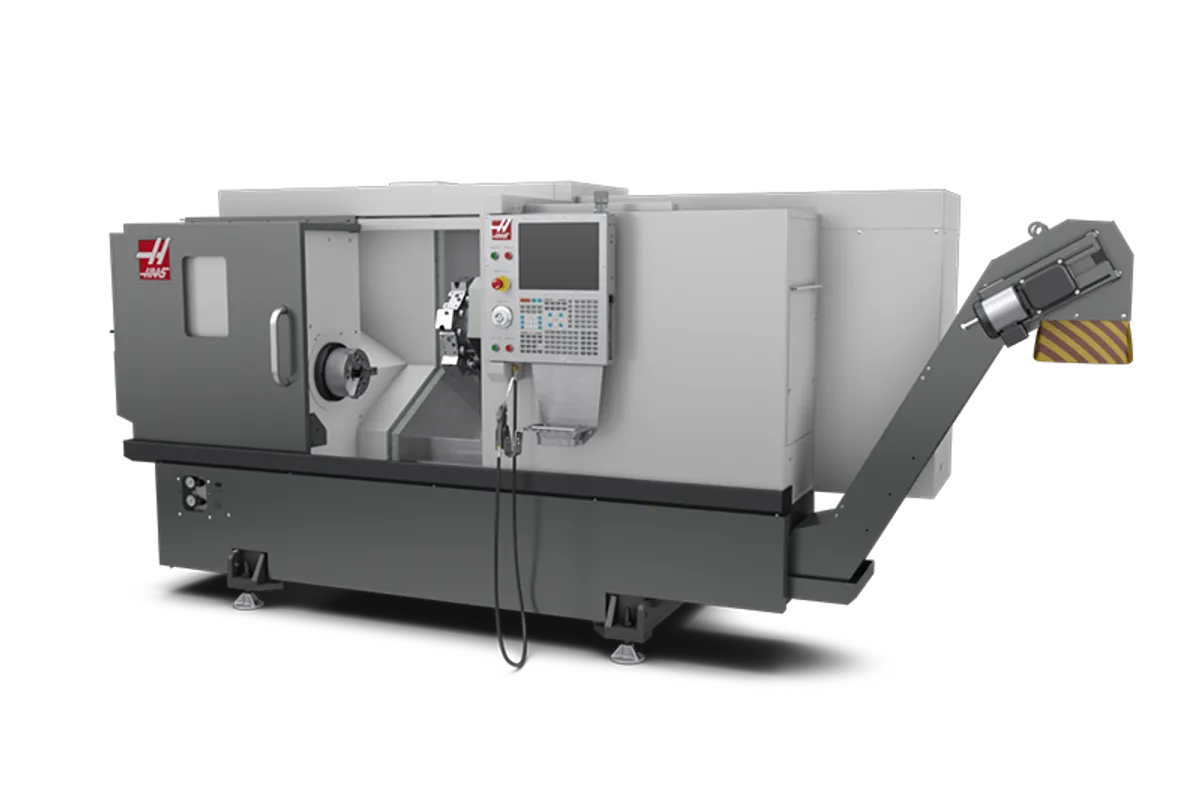

The Haas ST-10LY combines the long-bed Z-axis of the ST-10L with Y-axis and live tooling capability, creating the most compact long-bed mill-turn machine in the Haas lineup. With 610 mm (24 in) of Z-travel, +/-50.8 mm (+/-2.0 in) of Y-axis travel, and a BMT45 turret with 4,000 RPM live tooling, the ST-10LY handles done-in-one work on longer parts that need both turning and milling.
The A2-5 spindle delivers 14.9 kW (20 hp) and 102 Nm (75 ft-lb) of torque at 1,300 RPM, with a max speed of 6,000 RPM. The 44.5 mm (1.75 in) bar capacity and 165 mm (6.5 in) chuck keep the machine in the compact class, but the Y-axis and live tooling transform it from a simple turning center into a genuine multi-tasking cell.
Max cutting diameter is approximately 279 mm (11 in) with the BMT45 turret. Axis travels are 200 mm (7.9 in) in X, +/-50.8 mm in Y, and 610 mm (24 in) in Z. Rapids run at 12 m/min (472 ipm) on X and Y, and 30.5 m/min (1,200 ipm) on Z. The C-axis holds +/-0.01 degrees for precision milling work.
The ST-10LY fills a niche for shops machining small-diameter complex parts on longer stock — medical components, firearms parts, precision fittings, and instrumentation housings that need cross-drilling, flat milling, and tapping along with OD and ID turning.
At roughly $80,000-$110,000 configured, the ST-10LY delivers long-bed Y-axis mill-turn capability at the entry level of the Haas lineup. It eliminates second-op VMC work on longer parts while keeping the footprint and investment compact.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing | 419 mm (16.5 in) |
| Max Cutting Diameter | 11.00 in |
| Max Cutting Length | 32.5 in |
| Chuck Size | 5.3 in |
| Bar Capacity | 1.75 in |
| Spindle Nose | A2-5 |
| Spindle Bore | 1.50 in |
| Max Spindle Speed | 6,000 RPM |
| Spindle Motor Power | 15.0 hp |
| Spindle Torque | 102 Nm (75 ft-lb) @ 1,300 RPM |
| X Axis Travel | 200 mm (7.9 in) |
| Y Axis Travel | +/-50.8 mm (+/-2.0 in) |
| Z Axis Travel | 610 mm (24 in) |
| Rapid Traverse X Y | 12 m/min (472 ipm) |
| Rapid Traverse Z | 30.5 m/min (1,200 ipm) |
| Tool Capacity | 12 Stations |
| Live Tool Speed | 4,000 RPM |
| C Axis Accuracy | +/-0.01 degrees |
| Coolant Capacity | 30 gal |
| CNC Control | Haas Next Generation Control (NGC) |
| Capacities | S.A.E |
| Max Part Swing | 16.5 in |
| Travels | S.A.E |
| X Axis | 7.88 in |
| Y Axis | ± 2.0 in |
| Z Axis | 32.50 in |
| Feedrates | S.A.E |
| Rapids On X | 472 ipm |
| Rapids On Y | 472 ipm |
| Rapids On Z | 1200 ipm |
| Axis Motors | S.A.E |
| Max Thrust X | 2400 lbf |
| Max Thrust Y | 2300 lbf |
| Max Thrust Z | 3700 lbf |
| Spindle | S.A.E |
| Spindle Taper | A2-5 |
| Max Rating | 15.0 hp |
| Max Speed | 4000 rpm |
| Max Torque | 75.0 ft-lbf @ 1300 rpm |
| Draw Tube Bore | 1.81 in |
| Main Spindle C Axis | S.A.E |
| Positioning | 0.02 ° |
| Brake Diameter | 9.5 in |
| Brake Holding Torque | 140 ft-lbf |
| Control Type | Interpolated Motion and Positioning |
| Sub Spindle | S.A.E |
| Max Sync Speed W Main Spindle | 4800 rpm |
| Chuck Throat | Ø 1.30 in x 1.37 in DEEP |
| Drawbar Bore | Ø 1.00 in x 4.50 in DEEP |
| Integrated Brake Torque | 17 ft-lbf |
| Spindle Orientation Accuracy | ± 0.02 ° |
| Rapids | 400 ipm |
| Tailstock | S.A.E |
| Taper | MT3 |
| Hydraulic Quill Travel | 3.8 in |
| Manual Body Positioning | 44.0 in |
| Max Thrust | 1130 lbf |
| Min Thrust | 140 lbf |
| Turret | S.A.E |
| Od Vs Id Tools | Any Combination (will vary with turret) |
| Boring Bar Rear Clearance | 3.80 in |
| Live Tooling | S.A.E |
| Tooling | BMT45 |
| General | S.A.E |
| Air Requirements | S.A.E |
| Air Required | 4 scfm @ 100 psi |
| Inline Air Hose | 3/8 in |
| Coupler | 3/8 in |
| Air Pressure Min | 80 psi |
| Electrical Specification | S.A.E |
| Drive System | Direct Speed, Belt Drive |
| Input Ac Voltage Low | 220 VAC |
| Full Load Amps Low | 40 A |
| Input Ac Voltage High | 440 VAC |
| Full Load Amps High | 20 A |
| Dimensions Shipping | S.A.E |
| Domestic Pallet | 158.0 in x 70.0 in x 81.0 in |
| Export Pallet | 158.0 in x 70.0 in x 81.0 in |
| Machine Weight | 10000 lb |
Specifications sourced from haascnc.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Long-bed Y-axis mill-turn capability in the most compact package Haas offers — ideal for tight floor plans
- 6,000 RPM spindle speed delivers excellent surface speeds on small-diameter aluminum and brass finishing
- BMT45 turret with 4,000 RPM live tooling enables cross-drilling, flat milling, and tapping on longer parts
- 610 mm (24 in) Z-axis travel handles longer complex parts that won't fit the standard ST-10Y bed
- C-axis at +/-0.01 degrees provides precision for interpolated milling and positioning work
- At $80-110K configured, the most affordable long-bed Y-axis lathe from a tier-one manufacturer
Limitations
- 1.75-inch bar capacity limits the machine to small-diameter bar work; larger stock requires the ST-15LY or ST-20LY
- 15 hp spindle limits heavy roughing in stainless and tougher alloys on longer parts
- BMT45 turret is smaller and less rigid than the BMT-65 used on the ST-20LY and larger machines
- 30-gallon coolant tank is small for sustained production with live tooling generating additional heat
Best For
Frequently Asked Questions
01
Base price starts around $80,000. Adding sub-spindle option, parts catcher, chip conveyor, and common options pushes the configured price to $95,000-$110,000. The long-bed plus Y-axis premium over the standard ST-10 is approximately $35,000-$40,000.
02
The ST-10LY adds approximately 200 mm (8 in) of Z-axis travel, going from 406 mm to 610 mm (24 in). The spindle, Y-axis, turret, and live tooling specs are identical. Choose the LY when your parts with off-center features regularly exceed the standard bed length.
03
Yes. The ST-10LY can be ordered with an optional sub-spindle for back-working operations, enabling complete done-in-one machining on longer parts. The sub-spindle combined with Y-axis and live tooling creates a comprehensive small-part manufacturing cell.
04
The ST-20LY has a larger 2.5-inch bar capacity, 20 hp spindle, A2-6 nose, 8.3-inch chuck, and BMT-65 turret with 6,000 RPM live tooling. The ST-10LY is more compact and affordable with 6,000 RPM spindle speed. Choose the ST-10LY for small-diameter work. Choose the ST-20LY for larger bar stock and more milling power.
