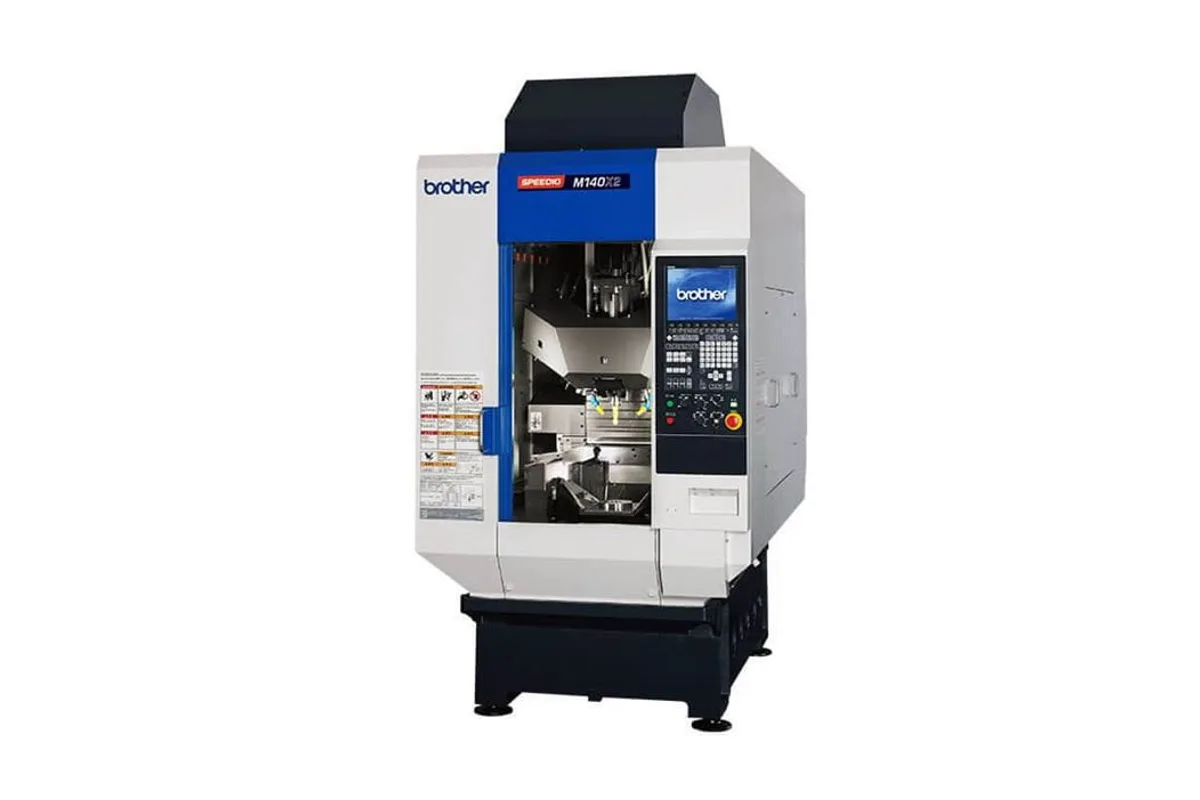

Brother Speedio M140X2

$150,000 - $200,000 Updated 2026-03-11

Key Specifications

X Travel

200 mm (7.9 in)

Y Travel

440 mm (17.3 in)

Z Travel

305 mm (12.0 in)

Tool Capacity

22 tools

Rapid Traverse

50 m/min (1,969 ipm) all axes

milling spindle speed

16,000 RPM

Overview

The Brother Speedio M140X2 is a compact 5-axis mill-turn center that packs 5-axis simultaneous machining and turning capability into one of the smallest footprints in its class. With X/Y/Z travels of 200 x 440 x 305 mm (7.9 x 17.3 x 12.0 in) and a BT30 milling spindle running at 16,000 RPM, the M140X2 is purpose-built for high-speed production of small precision parts — particularly in medical, electronics, automotive, and watchmaking industries where cycle time and accuracy matter more than heavy cutting capacity.

The integrated turning spindle adds 2,000 RPM turning capability with 55 Nm of torque and 8.7 kW of power, enabling true mill-turn operations without moving parts between machines. The A-axis tilts from +120 to -30 degrees using a backlashless roller gear drive that delivers high positioning accuracy without a clamp mechanism, enabling fast indexing between 5-axis positions. Rapid traverse hits 50 m/min (1,969 ipm) on all three linear axes — among the fastest in the compact 5-axis segment — keeping non-cutting time to a minimum on high-volume production runs.

The 22-tool ATC with 0.9-second tool change time keeps the machine moving between operations. At approximately 2,713 kg (5,979 lb), the M140X2 is light enough for most shop floors without special foundation work. The CNC-C00 control handles both milling and turning modes. Competitors include the Fanuc Robodrill, DMG Mori NTX 500, and Matsuura MX-330. New M140X2 machines price between $150,000 and $200,000. Used units from 2016-2020 trade between $70,000 and $120,000.

Full Specifications

Parameter	Value
X-Axis Travel	200 mm (7.9 in)
Y-Axis Travel	440 mm (17.3 in)
Z-Axis Travel	305 mm (12.0 in)
Milling Spindle Speed	16,000 RPM
Milling Spindle Taper	BT30
Milling Spindle Power	7.5 kW (10 hp)
Turning Spindle Speed	2,000 RPM
Turning Spindle Torque	55 Nm (41 ft-lb)
Turning Spindle Power	8.7 kW (11.7 hp)
A Axis Range	+120° to -30°
C Axis Range	360° continuous
Rapid Traverse Rate	50 m/min (1,969 ipm) all axes
Tool Capacity	22 tools
Tool Change Time	0.9 sec chip-to-chip
Max Table Load	40 kg (88 lb)
Machine Weight	2,713 kg (5,979 lb)
CNC Control	Brother CNC-C00
Coolant Pressure	3.0 MPa (435 PSI) high-pressure option

Specifications sourced from yamazen.com — verified 2026-03-28

Strengths & Limitations

Strengths

Integrated mill-turn capability with 16,000 RPM milling and 2,000 RPM turning eliminates part transfers between machines, reducing handling time and improving accuracy on complex small parts
50 m/min rapid traverse on all linear axes is among the fastest in the compact 5-axis class, dramatically reducing non-cutting time on high-volume production runs
0.9-second tool change time keeps the machine productive during multi-operation cycles with frequent tool swaps, a key advantage for parts requiring many different tools
Backlashless roller gear drive on the A-axis provides high positioning accuracy without a clamp mechanism, enabling both fast indexing and precise 5-axis simultaneous machining
Compact footprint and 2,713 kg machine weight means no special foundation preparation and easy placement on most shop floors, even in tight production cells

Limitations

40 kg maximum table load severely limits workpiece size and material — this is strictly a small-parts machine not suitable for heavy steel components or large castings
BT30 spindle taper limits cutting force capability compared to BT40/HSK-A63 machines, making heavy roughing in steel and titanium impractical
200 mm X-axis travel is very compact and restricts the machine to small workpieces, typically under 150 mm in the X dimension including fixturing
22-tool magazine may require creative tooling strategies for complex parts that need more tools, though the fast tool change partially compensates

Best For

Medical device manufacturers producing small implants, surgical instruments, and dental components that require 5-axis precision and mill-turn capability in a single setup Electronics and connector manufacturers running high-volume production of small precision parts where cycle time and rapid traverse speed are critical Automotive suppliers producing small turbo components, fuel system parts, and sensor housings in aluminum and brass at high volumes Watch and instrument manufacturers needing 5-axis simultaneous machining with turning capability for complex small geometry Production cells where floor space is limited and a compact all-in-one mill-turn solution replaces separate milling and turning machines

Frequently Asked Questions

01 What does a new Brother Speedio M140X2 cost?

New M140X2 machines typically price between $150,000 and $200,000 depending on options including high-pressure coolant, chip conveyor, probing, and automation interfaces. Used units from 2016-2020 trade between $70,000 and $120,000. Brother machines hold value well due to their reputation for reliability and speed in production environments.

02 Can the M140X2 do real turning or just indexing?

The M140X2 performs real turning operations with a dedicated turning spindle rated at 2,000 RPM and 55 Nm of torque. This enables OD/ID turning, facing, grooving, and threading — not just rotary indexing for milling. The turning capability is designed for small-part production where combining mill and turn operations in one setup saves handling time and improves accuracy.

03 How does the M140X2 compare to a Fanuc Robodrill?

The Robodrill is a pure milling machine (no turning spindle) with a larger work envelope and BT30 taper. The M140X2 adds turning capability and 5-axis simultaneous machining in a more compact package. If your parts need both milling and turning, the M140X2 eliminates a separate lathe. If you only need milling with high speed, the Robodrill offers more table space and is typically less expensive.

04 What materials can the M140X2 handle?

The M140X2 excels in aluminum, brass, copper, plastics, and mild steel for small parts. The BT30 taper and 40 kg table load limit heavy cutting in hard materials like stainless steel and titanium — it can machine them, but depth of cut and feed rates must be conservative. For small medical implants in titanium, it works well with appropriate tooling and parameters.

05 Is the M140X2 easy to automate?

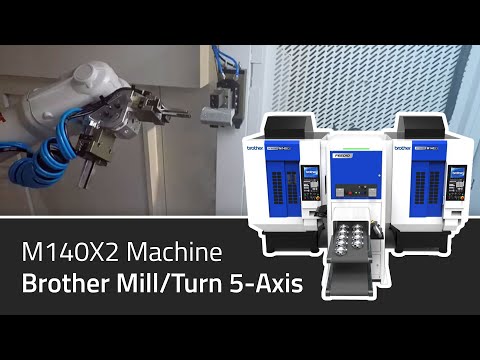

Yes. The compact design and front-loading access make the M140X2 well-suited for robotic loading cells. Brother offers automation interfaces, and the machine is commonly paired with compact robot loaders from providers like Erowa and System 3R. The fast cycle times and reliability make it an excellent candidate for lights-out production of small parts.

06 What is the accuracy of the M140X2?

The M140X2 achieves positioning accuracy of ±0.002 mm and repeatability of ±0.001 mm on linear axes. The backlashless roller gear drive on the A-axis provides consistent rotary positioning without mechanical backlash compensation. The high-accuracy machining option includes additional thermal compensation and spindle growth management for tighter tolerance work.
