Goodway SW-12

Q: How much does the Goodway SW-12 cost?

The price estimate for the Goodway SW-12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-sw-12#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

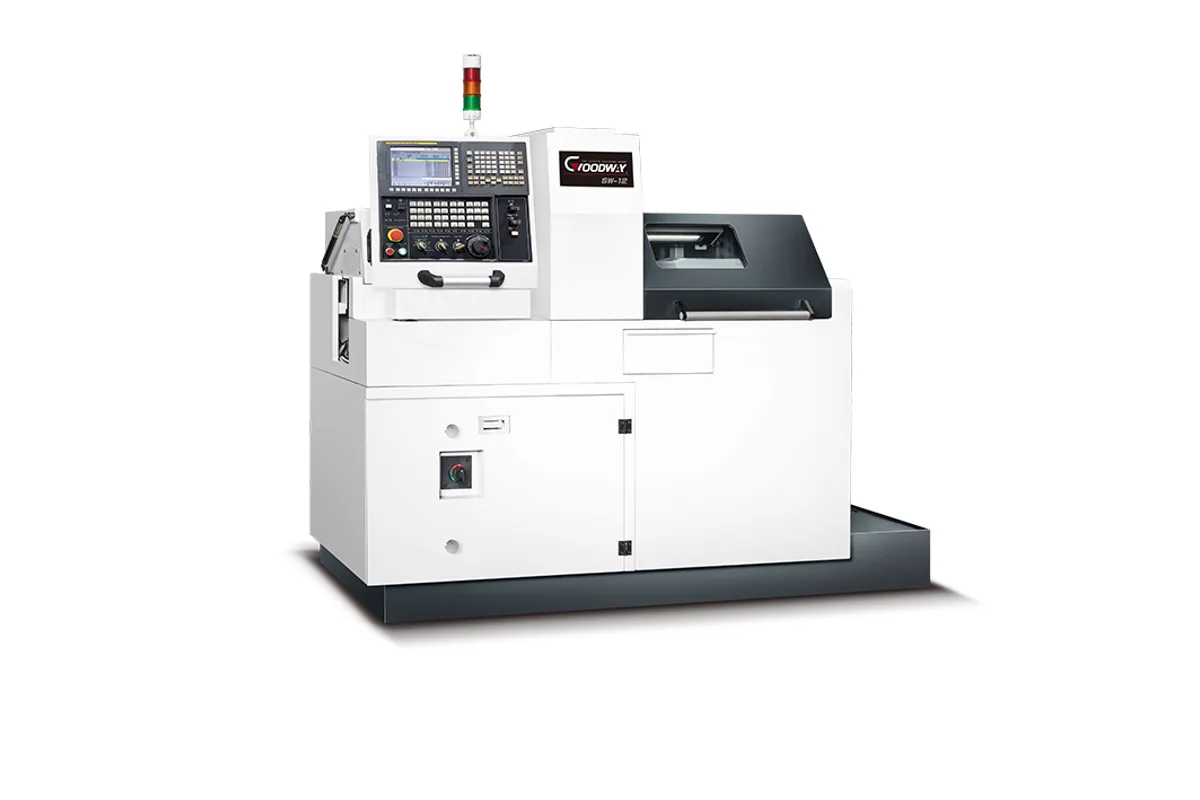

Goodway SW-12 series ultra performance swiss turning centers (SW-12)

Image: goodwaycnc.com, Goodway

Key Specifications

Max Spindle

10,000 rpm

Spindle Power

2.2 kW (3.0 hp) (cont.)

max machining diameter

Ø13 mm (0.5 in)

max turning length per chuck

140 mm (5.5 in) / 30 mm (1.2 in) (bush / bushless)

od tools

od tool shank size

□ 10 mm (0.4 in)

How much does the Goodway SW-12 cost?

Price estimate

Uncertain

We do not have a price for the Goodway SW-12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway SW-12 is a Swiss-type lathe for micro parts, taking bar up to Ø13 mm (0.5 in) at 10,000 rpm. Everything on it is scaled to small work: 10 mm (0.4 in) square tool shanks, ER11 collets for the I.D. tools, and a main spindle motor of 2.2 kW (3.0 hp) continuous, 3.7 kW (5.0 hp) for 15 min.

At this diameter speed is the constraint. A pin only a few millimetres across needs every one of those 10,000 rpm to reach a sensible cutting speed, and the cross live tools match the spindle at 10,000 rpm so small drills and end mills can run properly too. Goodway also quotes an axial rapid feed rate of 32 m/min., which shortens the moves between tools.

With the guide bush in place the machine turns 140 mm (5.5 in) per chucking. Run bushless, for short parts and less remnant, it turns 30 mm (1.2 in). The front tooling consists of 6 O.D. tools, 4 I.D. tools and 4 cross live tools, and Goodway offers the live tooling in a standard or an expandable configuration that accepts interchangeable holders.

Three variations exist. A is the single-spindle machine. C adds a sub-spindle, and here the sub-spindle is as strong as the main one, with the same 10,000 rpm and the same 2.2 kW and 3.7 kW ratings. D adds a backworking tooling system with 4 rear-end tools at 8,000 rpm. The sub-spindle clamps up to Ø13 mm and ejects parts up to 80 mm (3.1 in) long from the front.

Full Specifications

Parameter	Value
Max Machining Diameter	Ø13 mm (0.5 in)
Max Turning Length per Chuck	140 mm (5.5 in) / 30 mm (1.2 in) (bush / bushless)
OD Tools	6
OD Tool Shank Size	□ 10 mm (0.4 in)
ID Tools	4
ID Tool Sleeve Size	ER11
Cross Live Tools	4
Cross Live Tool Speed	10,000 rpm
Max Spindle Speed	10,000 rpm
Spindle Motor Power	2.2 kW (3.0 hp) (cont.)
Spindle Power 15 Min	3.7 kW (5.0 hp) (15 min.)
Back Max Chucking Diameter	Ø13 mm (0.5 in)
Back Max Length for Front Ejection	80 mm (3.1 in)
Rear End Tools	4
Rear End Tool Speed	8,000 rpm
Sub Spindle Speed Max	10,000 rpm
Sub Spindle Power	2.2 kW (3.0 hp) (cont.)
Sub Spindle Power 15 Min	3.7 kW (5.0 hp) (15 min.)
Guide Bush Design	Bush / Bushless

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

10,000 rpm on main spindle, sub-spindle and cross live tools
Sub-spindle with the same 2.2 kW (3.0 hp) continuous rating as the main spindle
Hybrid guide bush design: bush or bushless operation
Axial rapid feed rate of 32 m/min., per Goodway
Expandable live tooling configuration available as an option

Limitations

Bar capacity is Ø13 mm (0.5 in)
Bushless turning length is 30 mm (1.2 in) per chucking
Only 4 rear-end tools, and only in the D variation
No Y2-axis or B-axis is listed for this model

Best For

Micro parts and pins from bar up to Ø13 mm (0.5 in) Watch, electronics and dental-type components Small cross-drilled and milled features at 10,000 rpm

Frequently Asked Questions

01 What is the maximum bar size for the SW-12?

Maximum machining diameter is Ø13 mm (0.5 in). The sub-spindle chucks the same Ø13 mm (0.5 in). Turning length per chucking is 140 mm (5.5 in) with the guide bush and 30 mm (1.2 in) bushless.

02 How fast are the SW-12 spindles?

Both the main spindle and the sub-spindle run to 10,000 rpm, and each is rated 2.2 kW (3.0 hp) continuous and 3.7 kW (5.0 hp) for 15 min. Cross live tools also reach 10,000 rpm; rear-end live tools reach 8,000 rpm.

03 What tools does the SW-12 hold?

6 O.D. turning tools with 10 mm (0.4 in) square shanks, 4 I.D. tools in ER11 sleeves and 4 cross live tools. The D variation adds 4 rear-end tools for back working. Goodway notes the sub-spindle body can also carry a deep hole drill.

04 What are the A, C and D versions of the SW-12?

A is the basic single-spindle machine. C adds the sub-spindle. D adds the sub-spindle and the backworking tooling system. Goodway lists an Air Bag collision function as standard and OCR oscillation cutting as an option.
