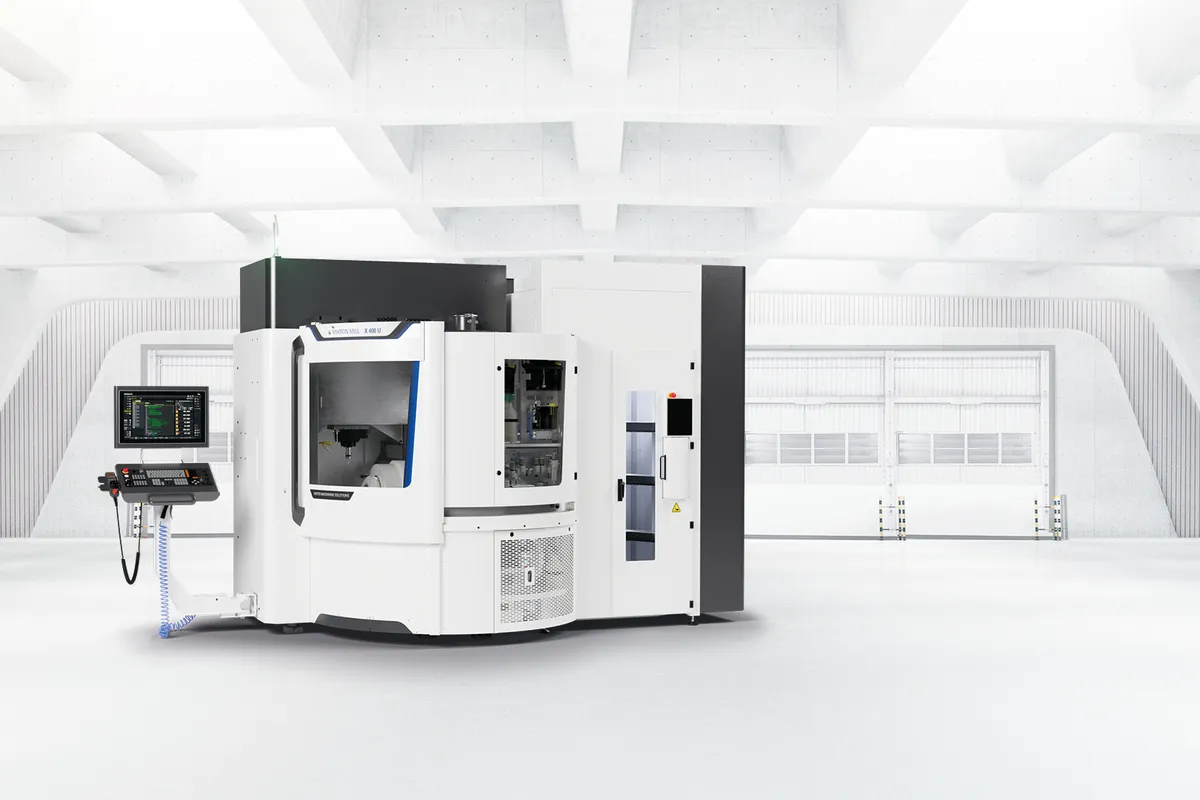

GF Machining MIKRON MILL S 600 U
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Mikron MILL S 600 U offers 800 x 600 x 500 mm (31.5 x 23.6 x 19.7 in) travels. Trunnion: 120 kg, A-axis +30/-110 deg. Spindle: 42,000 RPM/HSK-E40 or 36,000/33 kW/HSK-E50. Rapid: 61 m/min. 9,900 kg. TNC 7 or SINUMERIK ONE. Pricing: $400,000-$650,000.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 800 mm (31.5 in) |
| Y-Axis Travel | 600 mm (23.6 in) |
| Z-Axis Travel | 500 mm (19.7 in) |
| Table Load Capacity | 120 kg (265 lb) |
| A Axis Swivel Range | +30 deg / -110 deg |
| C Axis Rotation | n x 360 deg (continuous) |
| Max Spindle Speed | 42,000 RPM (HSK-E40) / 36,000 RPM (HSK-E50) |
| Spindle Taper | HSK-E40 or HSK-E50 |
| Spindle Motor Power | 13.5 kW (HSK-E40) / 33 kW (HSK-E50) |
| Spindle Torque | 8.8 Nm (HSK-E40) / 21 Nm (HSK-E50) |
| Spindle Technology | Step-Tec precision spindle |
| Rapid Traverse Rate | 61 m/min (2,402 ipm) |
| Machine Weight | 9,900 kg (21,825 lb) |
| CNC Control | Heidenhain TNC 7 / Siemens SINUMERIK ONE |
| Travel Xyz | 800 x 600 x 500 mm31.5 x 23.62 x 19.68 in |
| Swiveling Range | +30°-110° |
| Rotary Range | n x 360° |
| Rapid Traverse Xyz | 61 m/min (MILL S)2,401 in/min100 m/min (MILL X)3,937 in/min |
| Rapid Traverse Swiveling Rotating | 60 / 150 rpm |
| Working Spindle | 42,000 (HSK-E40) / 13.5 / 8.8 rpm/kW/Nm36,000 (HSK-E50) / 33 / 21 rpm/kW/Nm |
| Pallet Clamping Surface | Dynafix 280 x 280/350 x 350GPS 240 x 240UPC 320 x 320 |
| Max Load | 120 kg (264 lbs) |
| Tool Capacity | 68/168 (HSK-E40)15/30/60/120/170/220 (HSK-E50) |
| Machine Weight | 9,900 kg (21,825 lbs) |
| Control Unit | Heidenhain TNC 7Siemens SINUMERIK ONE |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 800 x 600 mm for medium mold cavities
- Dual spindle: 42,000 RPM E40 or 36,000/33 kW E50
- Step-Tec delivers Ra 0.05-0.1 um on hardened steel
- TNC 7 or SINUMERIK ONE with Smart Machine
- 120 kg table for medium inserts
- 9,900 kg vibration damping
Limitations
- 120 kg restricts to small-to-medium workpieces
- 8.8 Nm on E40 limits roughing
- HSK-E40/E50 require dedicated toolholders
- $400K-$650K needs surface finish justification
Best For
Frequently Asked Questions
01
E40 at 42,000 for micro-precision. E50 at 36,000/33 kW more versatile.
02
Same envelope. S: 61 m/min. X: 100 m/min.
03
Yes, dedicated MILL S Graphite has purpose-built extraction.
04
System 3R, WorkShopManager, Automation Cube.
