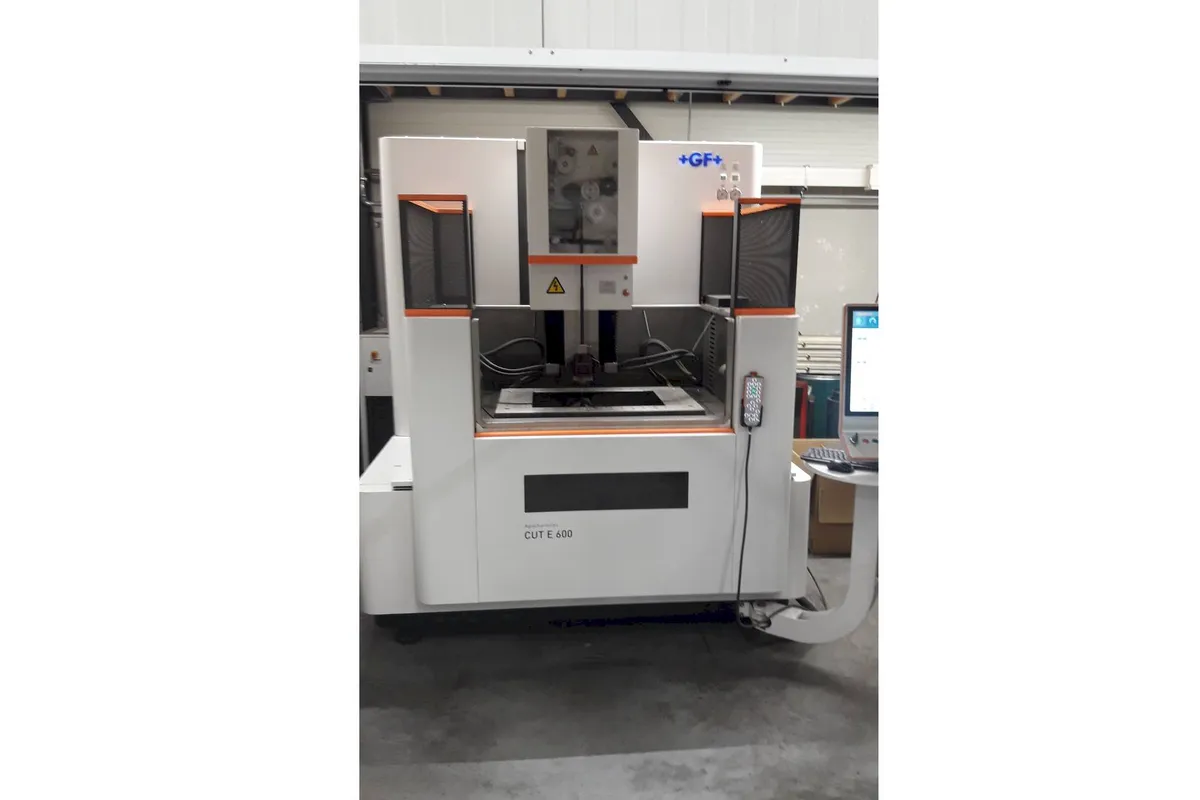

GF AgieCharmilles CUT E 600

$90,000 - $130,000 Updated 2026-03-11

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

400 mm (15.7 in)

Z Travel

350 mm (13.8 in)

Accuracy

3 um

u axis

+/-50 mm (+/-1.97 in)

v axis

+/-50 mm (+/-1.97 in)

Overview

The GF AgieCharmilles CUT E 600 is the large-travel version of GF Machining Solutions' entry-level wire EDM line, and it's built to do one thing well: get shops cutting parts faster without blowing the budget. With 600 x 400 x 350 mm (23.6 x 15.7 x 13.8 in) of X/Y/Z travel and a 1,000 kg (2,205 lb) workpiece capacity, you've got enough room and payload for serious mold and die work — progressive die plates, extrusion tooling, and stamping components all fit comfortably on this machine.

The UNIQUA touchscreen HMI is one of the CUT E's strongest selling points. It's intuitive enough that operators with limited wire EDM experience can get up and running quickly, and the object-oriented programming approach lets experienced guys build jobs faster than traditional sequential methods. GF designed the interface around minimizing setup time, and it shows — job-to-job changeover is noticeably quicker than on older Charmilles platforms.

Under the hood, the ISPG (Intelligent Spark Generator) handles the power delivery. It's a digital generator that adapts cutting parameters in real time, which translates to better surface finishes and more consistent results across different materials and thicknesses. Standard 3-pass machining delivers Ra 0.14 um (6 uin Ra) surface finish, and the machine handles wire diameters from 0.15 to 0.30 mm (0.006 to 0.012 in) with an optional 0.10 mm (0.004 in) fine-wire capability.

The T-shaped cast iron base frame is a smart design choice — it lets you load heavy workpieces through the standard drop door without the table deflecting or affecting positioning accuracy. GF specs the machine at 3 um accuracy, which is solid for this price class. Taper cutting goes up to +/-30 degrees at 50 mm height, covering most angular work you'd encounter in a general-purpose wire EDM shop.

At roughly 4 square meters of floor space, the CUT E 600 has a surprisingly compact footprint for the travel it offers. That's meaningful for shops where every square foot counts. The machine weighs around 4,440 kg (9,789 lb) without dielectric, so you'll need proper rigging but won't need extraordinary floor preparation.

Pricing for a new CUT E 600 typically falls in the $90,000-$130,000 range depending on options and dealer, making it one of the more affordable large-travel wire EDMs on the market. Used machines from 2015-2020 trade between $40,000 and $75,000. The CUT E 600 competes directly with machines like the Sodick VL600Q, Mitsubishi MV1200R, and Makino U3 in the mid-range wire EDM segment.

Full Specifications

Parameter	Value
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	350 mm (13.8 in)
U Axis	+/-50 mm (+/-1.97 in)
V Axis	+/-50 mm (+/-1.97 in)
Max Taper Angle	+/-30° at 50 mm height
Max Workpiece Size	1,030 x 800 x 350 mm (40.6 x 31.5 x 13.8 in)
Max Workpiece Weight	1000 kg2205 lbs
Wire Diameter Range	0.15 - 0.30 mm (0.006 - 0.012 in); 0.10 mm optional
Surface Finish	Ra 0.14 um (6 uin Ra)
Positioning Accuracy	3 um
Max Cutting Speed	180 mm²/min (28 in²/hr)
CNC Control	UNIQUA HMI (touchscreen)
Generator	ISPG (Intelligent Spark Generator)
Machine Weight	4,440 kg (9,789 lb) without dielectric
Machine Dimensions	2,790 x 2,020 x 2,320 mm (109.8 x 79.5 x 91.3 in)
Axis Speed	0 - 3,000 mm/min with anti-collision protection
Travel X Y Z	600 x 400 x 350 mm23.62 x 15.75 x 13.78 in
Min Surface Roughness Ra	0.14 μm6 μin
Dimensions Of Complete Equipment	2160 x 3400 x 2320 mm85.04 x 133.86 x 91.34 in
Max Taper Angle Height	± 30°/50 mm± 30°/1.97 in
Max Workpiece Dimensions	1030 x 800 x 350 mm40.55 x 31.5 x 13.78 in
Travel U V	± 50 mm± 1.97 in
Wire Diameters	0.15-0.30 (0.10 optional) mm0.006-0.012 (0.04 optional) in
Max Wire Spool Weight	8 (25 optional) kg

Specifications sourced from gfms.com — verified 2026-03-28

Strengths & Limitations

Strengths

UNIQUA touchscreen HMI with object-oriented programming significantly reduces job setup time and flattens the learning curve for new operators
ISPG digital generator adapts spark parameters in real time for consistent surface finishes across varying materials and part thicknesses
T-shaped cast iron base frame allows heavy workpiece loading through the drop door without deflection or accuracy loss
Compact 4 square meter footprint delivers 600 mm X-travel — more travel per square foot than most competitors in this class
1,000 kg (2,205 lb) workpiece capacity handles large progressive die plates and extrusion tooling without restriction
Wire compatibility from 0.15 to 0.30 mm (optional 0.10 mm) covers both production cutting and fine-detail work on one platform

Limitations

U/V axis travel is limited to +/-50 mm, which restricts taper cutting capability on thicker parts compared to machines with +/-75 mm or more
Z-axis travel maxes out at 350 mm (13.8 in) — shops regularly cutting parts taller than 300 mm should look at the CUT P or CUT X series
GF Machining Solutions' EDM service network in North America is thinner than Makino's or Mitsubishi's, which can mean longer response times in some regions
No built-in large-spool wire system as standard — the 8 kg spool requires more frequent wire changes on long unattended runs without the optional 25 kg upgrade

Best For

Mold and die shops needing an affordable large-travel wire EDM for progressive dies, extrusion tooling, and stamping components Job shops looking for a versatile mid-range wire EDM that handles a variety of materials and part sizes without a premium price tag Shops with operators transitioning to wire EDM who benefit from the intuitive UNIQUA touchscreen interface Production environments where compact footprint matters — the CUT E 600 fits in spaces where larger-travel competitors won't General-purpose wire EDM work in tool steel, carbide, and hardened materials requiring Ra 0.14 um or better surface finish

Frequently Asked Questions

01 What's the difference between the AgieCharmilles CUT E 350 and CUT E 600?

The main difference is axis travel and workpiece capacity. The CUT E 350 offers 350 x 250 x 256 mm X/Y/Z travel with a 500 kg max workpiece weight, while the CUT E 600 steps up to 600 x 400 x 350 mm travel and 1,000 kg capacity. Both share the same UNIQUA control, ISPG generator, and wire compatibility. The CUT E 600 is the better choice for shops working with larger mold plates and progressive dies.

02 What does a GF AgieCharmilles CUT E 600 cost?

New CUT E 600 machines typically price between $90,000 and $130,000 delivered, depending on options like the 0.10 mm fine-wire package and 25 kg spool upgrade. Used machines from 2015-2020 vintages show up on the secondary market between $40,000 and $75,000. The CUT E 600 is positioned as GF's affordable large-travel wire EDM, priced below the CUT P and CUT X series.

03 How does the UNIQUA control compare to other wire EDM interfaces?

UNIQUA is a modern touchscreen HMI that supports both sequential and object-oriented programming. Most operators find it more intuitive than traditional Fanuc or Mitsubishi EDM controls, especially for job setup and parameter selection. The object-oriented approach lets you build jobs by defining geometry objects rather than writing line-by-line code, which speeds up programming for complex parts. Operators typically get comfortable within a few days of hands-on use.

04 What wire types work with the CUT E 600?

The machine runs standard brass wire from 0.15 to 0.30 mm diameter, and GF's AC CUT VS 900+ coated wire reduces cost per part by up to 25 percent through lower consumption and higher cutting speeds. The optional fine-wire package enables 0.10 mm wire for detail work. Standard spool capacity is 8 kg, with an optional 25 kg spool for longer unattended runs.

05 Is the CUT E 600 accurate enough for precision mold work?

At 3 um positioning accuracy and Ra 0.14 um surface finish capability, the CUT E 600 handles most general mold and die work well. For ultra-precision applications requiring sub-micron accuracy or mirror finishes below Ra 0.10 um, you'd want to step up to GF's CUT X series with twin-wire technology. But for the vast majority of mold cavities, stamping dies, and production EDM work, the CUT E 600's accuracy is more than sufficient.
