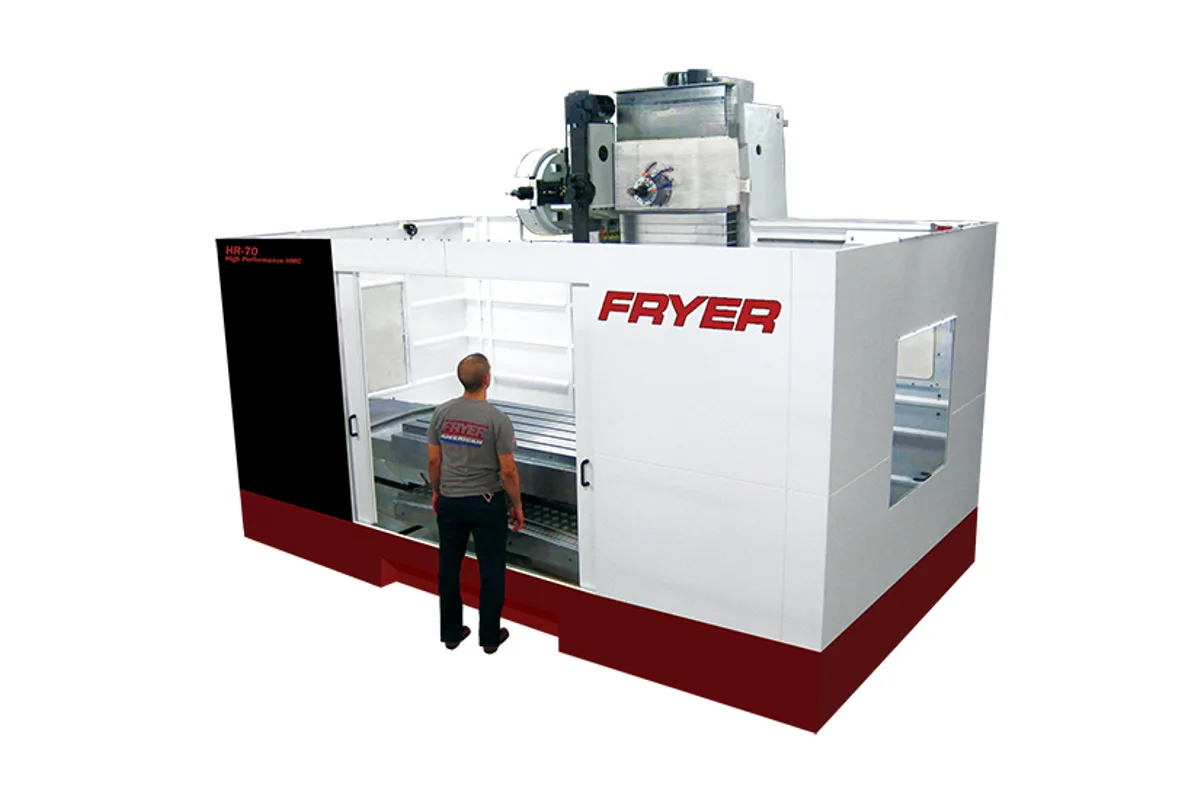

Fryer HR-70
Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Fryer HR-70 cost?
Price estimate
We do not have a price for the Fryer HR-70 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer HR-70 is a large fixed spindle horizontal machining center: 70 x 55 in (1,778 x 1,397 mm) of X and Y travel, 36 in (914 mm) of Z and a 36 x 80 in (914 x 2,032 mm) table rated 10,000 lb (4,536 kg). It weighs 36,000 lb (16,330 kg), twice the HR-40, and its 55 in of vertical travel is nearly double as well.
That Y stroke is the reason to look at this model. Spindle center to table top runs from 6 to 61 in (152 - 1,549 mm), so the spindle can reach the top of a tall weldment, a gearbox case or a valve body standing on the table. An extended 46 in (1,168 mm) Z travel is on the options sheet for the HB/HR-70 and increases spindle nose to table center to 53".
Two rotary tables are offered for this size only. One is a 36" built-in 4th axis table, flush mounted in the 36" x 80" machine table. The other is a rectangular 60" x 48" rotating table. Both are listed with full contouring, 12 arc/sec accuracy and 10,000 lbs capacity. The rectangular table suits frames and plates that would overhang a round platter.
The 50 taper spindle gives 306 ft-lb (415 Nm) at 350 rpm with 40 hp (29.8 kW) peak, moved by 2.18 in (55 mm) ballscrews with 7,500 lb of peak axis thrust. Rapids are 750 ipm (19.1 m/min). Plan for 180 x 150 in (4,572 x 3,810 mm) of floor and 145 in (3,683 mm) of height.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 70 in (1,778 mm) |
| Y Axis Travel | 55 in (1,397 mm) |
| Z Axis Travel | 36 in (914 mm); 46 in (1,168 mm) with the extended travel option |
| Max Table Load | 10,000 lb (4,536 kg) |
| Table Size | 36 x 80 in (914 x 2,032 mm) |
| T-Slots | 5 / 0.866 in (22 mm) |
| Table Top to Floor | 40 in (1,016 mm) |
| Spindle Motor Power | 40 hp (29.8 kW) peak (55 hp (41.0 kW)) |
| Max Spindle Speed | 60 - 6,000 rpm (8,000 and 10,000 rpm) |
| Spindle Torque | 306 ft-lb (415 Nm) at 350 rpm; 1,224 ft-lb (1,660 Nm) with 2-speed gearbox |
| Spindle Speed Ranges | 1 range (2-speed ZF gearbox optional) |
| Spindle Taper | CAT 50 or BT-50 |
| Distance Spindle Nose to Table Center | 7 - 43 in (178 - 1,092 mm) |
| Distance Spindle Center to Table Top | 6 - 61 in (152 - 1,549 mm) |
| Rotary Table Option Platter Size | 36 in (914 mm) |
| Rotary Table Option Max Speed | 12 rpm |
| Rotary Table Option Max Load | 10,000 lb (4,536 kg) |
| Rotary Table Option Positioning Accuracy | 12 arc sec |
| Rotary Table Option Repeatability | 5 arc sec |
| Rotary Table Option Spindle Center to Table Top | 0 - 53 in (0 - 1,346 mm) |
| Tool Capacity | 24 station arm type (40-60 tool) |
| Tool Change Time | 4 seconds |
| Max Tool Diameter (full magazine) | 5.90 in (150 mm) |
| Max Tool Diameter (adjacent pockets empty) | 9.85 in (250 mm) |
| Max Tool Weight | 33.0 lb (15.0 kg) |
| Max Tool Length | 16 in (406 mm) |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Ballscrew Diameter | 2.18 in (55 mm) |
| Rapid Traverse Xyz | 750 ipm (19.1 m/min) X, Y, Z |
| Cutting Feed Rate | 0.001 - 600 ipm (up to 15.2 m/min) |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 7,500 lb (3,402 kgf) |
| Air Requirement | 90 psi (6.2 bar), 5 cfm (142 L/min) |
| Coolant Capacity | 100 gal (379 L) |
| Coolant Flow | 5 gpm (19 L/min) |
| Power Requirement | 80 A at 480 VAC |
| Shipping Dimensions | 120 x 94 x 96 in (3,048 x 2,388 x 2,438 mm) |
| Machine Dimensions | 180 x 150 x 145 in (4,572 x 3,810 x 3,683 mm) |
| Machine Weight | 36,000 lb (16,330 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 55 in (1,397 mm) of Y travel with spindle center up to 61 in (1,549 mm) above the table
- 36 x 80 in (914 x 2,032 mm) table rated 10,000 lb (4,536 kg)
- Choice of a 36" built-in rotary table or a rectangular 60" x 48" rotating table
- 7,500 lb of peak axis thrust on 2.18 in (55 mm) ballscrews
- Extended 46 in (1,168 mm) Z travel available
Limitations
- Stands 145 in (3,683 mm) tall and weighs 36,000 lb (16,330 kg)
- Rapids of 750 ipm (19.1 m/min) are slower than the 1,000 ipm (25.4 m/min) of the HR-40
- Standard Z travel is 36 in (914 mm); the longer travel is an option
- Rotary tables, guarding and coolant through the spindle are options
Best For
Frequently Asked Questions
01
X is 70 in (1,778 mm), Y is 55 in (1,397 mm) and Z is 36 in (914 mm), or 46 in (1,168 mm) with the extended travel option. Spindle nose to table center ranges from 7 to 43 in (178 - 1,092 mm) and spindle center to table top from 6 to 61 in (152 - 1,549 mm).
02
Two, both listed for the HR/HB-70 only: a 36" built-in 4th axis rotary table flush mounted in the 36" x 80" machine table, and a rectangular 60" x 48" 4th axis rotary table. Each has 12 arc/sec accuracy and 10,000 lbs capacity. The table gives a maximum rotation speed of 12 rpm.
03
The 24 station arm type changer takes tools up to 33.0 lb and 16 in (406 mm) long, 5.90 in (150 mm) in diameter with the magazine full and 9.85 in (250 mm) with adjacent pockets empty. Tool change time is 4 seconds; 40 and 60 tool changers are options.
04
Operating dimensions are 180 x 150 x 145 in (4,572 x 3,810 x 3,683 mm). It ships at 120 x 94 x 96 in (3,048 x 2,388 x 2,438 mm) after some disassembly and weighs 36,000 lb (16,330 kg). Power is 80 A at 480 VAC.
