Matsuura MX-420 PC10

$350,000 - $500,000 Updated 2026-03-19

Key Specifications

X Travel

560 mm (22.0 in)

Y Travel

460 mm (18.1 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (optional 20,000 RPM)

Spindle Taper

BT40 (HSK-A63 optional)

Tool Capacity

60 standard (90, 120 optional)

Overview

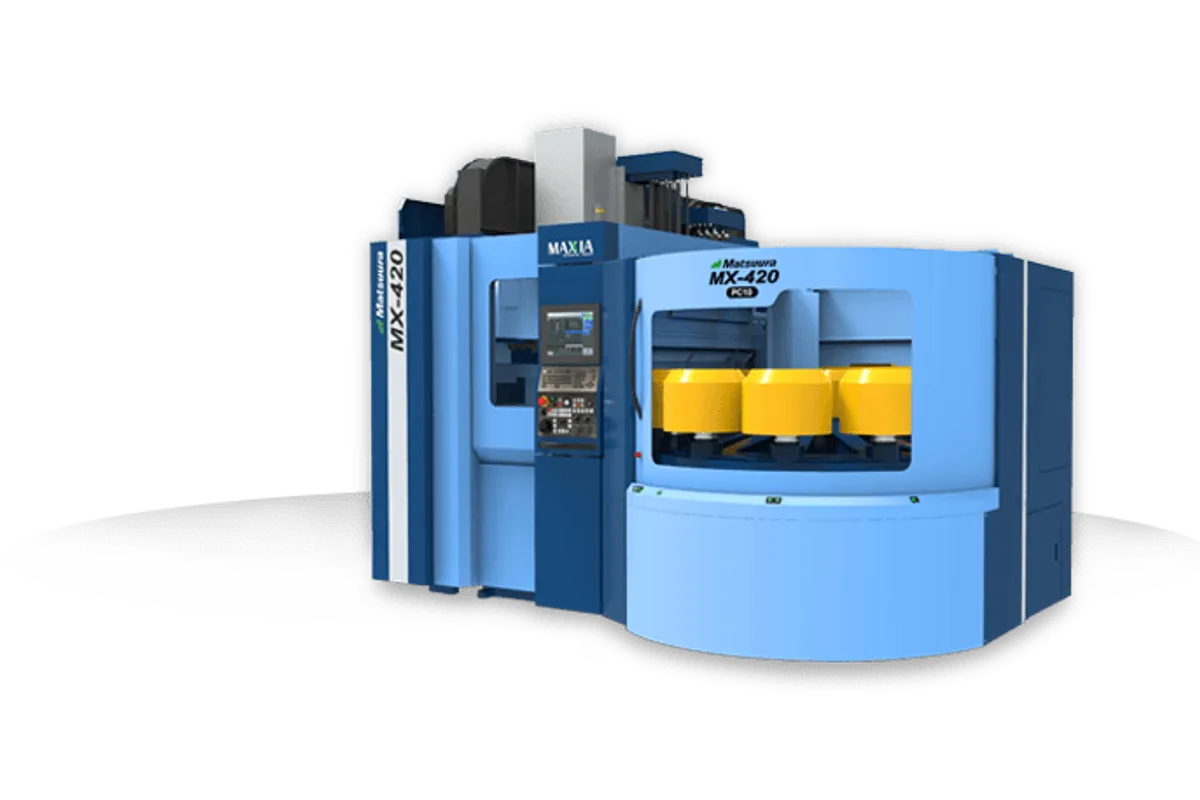

The Matsuura MX-420 PC10 slots between the MX-330 and MX-520 in Matsuura's 5-axis lineup, offering a 420 mm (16.5 in) workpiece diameter capacity with a 10-pallet tower changer. This machine fills a gap that many shops encounter: the MX-330 is too small for their parts, but the MX-520 is more machine than they need. The 420 mm envelope accommodates a wider range of medical implants, aerospace fittings, and precision industrial components while the 10-pallet system delivers genuine lights-out production capacity.

Axis travel measures 560 x 460 x 510 mm (22.0 x 18.1 x 20.1 in) on X/Y/Z, a significant step up from the MX-330's 450 x 400 x 400 mm envelope. The A-axis tilts from +20 to -120 degrees and the C-axis provides full 360-degree continuous rotation. The standard spindle is a BT40 at 12,000 RPM with 11/15 kW (15/20 hp), giving the machine noticeably more cutting authority than the BT30-equipped MX-330. A 20,000 RPM high-speed spindle option is available for aluminum-dominant work, and HSK-A63 tooling can be specified for improved high-speed rigidity.

The 10-pallet tower system is the defining feature. Each pallet station holds a 420 mm diameter workpiece with up to 100 kg (220 lb) load capacity per pallet — significantly more than the MX-330's 60 kg limit. The tool magazine holds 60 tools standard, expandable to 90 or 120 positions. Tool-to-tool change time is 1.0 seconds. The G-Tech 31i control with MIMS cell management handles pallet scheduling, tool life tracking, and production reporting.

The MX-420 PC10 weighs approximately 10,000 kg (22,046 lb) with a footprint of roughly 3,400 x 2,600 mm. This is competitive with the standalone MX-520 but with 10 pallets of automation built in. The machine targets the same shops that buy the MAM72-42V but at a lower price point and with a simpler, more approachable tower pallet design rather than the MAM72's full FMS architecture.

Full Specifications

Parameter	Value
X-Axis Travel	560 mm (22.0 in)
Y-Axis Travel	460 mm (18.1 in)
Z-Axis Travel	510 mm (20.1 in)
A Axis Range	+20° to -120°
C Axis Range	360° (continuous)
Max Spindle Speed	12,000 RPM (optional 20,000 RPM)
Spindle Taper	BT40 (HSK-A63 optional)
Spindle Motor Power	11 / 15 kW (15 / 20 hp)
Tool Capacity	60 standard (90, 120 optional)
Pallet Capacity	10 pallets
Table Diameter	420 mm (16.5 in)
Max Workpiece Size	420 mm dia x 315 mm H (16.5 x 12.4 in)
Table Load Capacity	100 kg (220 lb) per pallet
Rapid Traverse Xyz	50 m/min (1,969 ipm)
Tool Change Time	1.0 sec (tool-to-tool)
Pallet Change Time	< 15 sec
Machine Weight	10,000 kg (22,046 lb)
Floor Space Required	3,400 x 2,600 mm
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen)
Mx Series	MAM72 Series
Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4	MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H
Max Work Sizemm	ø330 × H300 (Ø12.99×H11.81) \| ø420 × H300 (ø16.54×H11.81)
Spindle Speedrpm	15,000:BT40Standard\| 15,000PowerUp \| :BT40Option\| 20,000:BT40Option
Travel Mm	435/465/560 \| (17.13/18.31/22.05)
Industriesautomotive And High Performance Die Mold Medical	Technology5-Axis Vertical/Horizontal Machining Center ›

Specifications sourced from matsuurausa.com — verified 2026-03-28

Strengths & Limitations

Strengths

420 mm workpiece capacity splits the difference between MX-330 and MX-520, covering a sweet spot of medical implant and aerospace fitting sizes
10-pallet tower provides exceptional unattended capacity without the complexity and cost of a full MAM72 FMS system
BT40 spindle with 15 kW power provides genuine cutting authority in steel and titanium, unlike the MX-330's BT30
100 kg per-pallet load capacity is practical for real production fixtures with multiple parts per setup
1.0-second tool-to-tool change minimizes non-cutting time across all 10 pallet stations
MIMS cell controller and G-Tech 31i interface are shared across the entire Matsuura lineup for seamless operator transition

Limitations

Price premium over the MX-520 single-table machine is significant — shops must have enough production volume to fill 10 pallets regularly
420 mm diameter falls in a middle ground — if parts occasionally exceed this, you need the MX-520 anyway
Standard 12,000 RPM spindle speed may limit high-speed aluminum finishing compared to the MX-330's 20,000 RPM BT30
Matsuura's U.S. service footprint is smaller than Mazak or DMG Mori, which can affect support response times

Best For

Medical device manufacturers running families of mid-sized orthopedic implants and surgical instruments across multiple setups Aerospace prototype and production shops machining fittings and brackets in aluminum and titanium under 420 mm diameter Contract manufacturers needing high-mix automated 5-axis production without the capital commitment of a full MAM72 FMS Shops stepping up from single-pallet 5-axis machines that need significantly more unattended runtime capacity Precision engineering firms producing complex components across diverse part families that benefit from 10-pallet flexibility

Frequently Asked Questions

01 What does a Matsuura MX-420 PC10 cost?

New MX-420 PC10 pricing typically falls between $350,000 and $500,000 depending on spindle configuration, tool magazine capacity, and software options. This positions it between the MX-330 PC10 ($250K-$375K) and the MAM72-42V ($500K-$750K), offering a compelling middle ground for shops that need more than the MX-330 can deliver but don't require the MAM72's full FMS capabilities.

02 How does the MX-420 PC10 compare to the MAM72-42V?

Both handle 420 mm workpieces, but the MAM72-42V offers up to 32 pallets and expandable tool magazines up to 520 tools for true FMS-level automation. The MX-420 PC10 counters with a simpler, more affordable tower pallet design, lower purchase price, and easier operator learning curve. Choose the MAM72-42V for maximum unattended capacity; choose the MX-420 PC10 for a more approachable and cost-effective automation entry point.

03 Can the MX-420 PC10 handle steel and titanium?

Yes. The BT40 spindle with 15 kW of power provides adequate cutting authority for semi-finishing and moderate roughing in steel and titanium. It is a significant step up from the MX-330's BT30 spindle in terms of rigidity and power. For aggressive heavy roughing in hard metals, the MX-850 with its BT50 spindle would be more appropriate.

04 What is the advantage of 10 pallets over 4 pallets?

Ten pallets provide roughly 2.5x the unattended runtime of a 4-pallet system. With typical cycle times of 20-60 minutes per pallet, a 10-pallet system can run 3-10 hours unattended versus 1-4 hours with 4 pallets. The real benefit is in high-mix production: 10 different setups running continuously means fewer changeovers and higher spindle utilization across a diverse part mix.
