Ermak Power-Bend Falcon 1270-60
Image: ermaksan.com.tr, Ermak
Key Specifications
bending length
bending power
distance between columns
y rapid speed
y working speed
y return speed
How much does the Ermak Power-Bend Falcon 1270-60 cost?
Price estimate
We do not have a price for the Ermak Power-Bend Falcon 1270-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A short bed with a full-size ram is the idea behind the Ermak Power-Bend Falcon 1270-60. Bending length is 1,270 mm (50 in) and bending power 60 Ton (66 US tons), yet the stroke, daylight and throat are those of Falcons three times as long.
Those three figures are 275 mm, 530 mm and 410 mm. Compare the Power-Bend Falcon 1270-40, which offers a 170 mm stroke, 387 mm of daylight and a 350 mm throat. For a shop bending small but deep parts, such as enclosures or channels with tall legs, the extra opening is the reason to choose this model over its lighter neighbour.
The heavier frame shows in the dimensions. This press brake weighs 4,320 kg and stands 2,580 mm high, with a footprint of 3,175 mm by 2,100 mm. The gap between the columns is 1,000 mm (39.4 in), so only parts narrower than that pass between the side frames.
In the cycle, the ram approaches at 160 mm/s, bends at 10 mm/s and returns at 165 mm/s. The motor is rated 7.5 kW and the tank holds 150 L of oil. Backgauge travel is 500 mm in X and 250 mm in R.
No crowning is listed for this size: the cell in Ermak's table is a dash. Bed deflection over 1,270 mm is modest at 60 Ton, though anyone coining thick material near full tonnage should raise the point with Ermak.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 1,270 mm (50 in) |
| Bending Power | 60 Ton (66 US tons) |
| Distance Between Columns | 1,000 mm (39.4 in) |
| Y Rapid Speed | 160 mm/s (6.3 in/s) |
| Y Working Speed | 10 mm/s (0.39 in/s) |
| Y Return Speed | 165 mm/s (6.5 in/s) |
| X Axis Travel | 500 mm (19.7 in) |
| X Axis Speed | 500 mm/s (19.69 in/s) |
| R Axis Travel | 250 mm (9.8 in) |
| R Axis Speed | 350 mm/s (13.78 in/s) |
| Backgauge Finger Blocks | 2 |
| Sheet Supports | 2 |
| Oil Capacity | 150 L (39.6 US gal) |
| Motor Power | 7.5 kW (10.1 hp) |
| Stroke | 275 mm (10.8 in) |
| Daylight | 530 mm (20.9 in) |
| Throat Depth | 410 mm (16.1 in) |
| Table Height | 900 mm (35.4 in) |
| Table Width | 90 mm (3.5 in) |
| Length | 3,175 mm (125 in) |
| Height | 2,580 mm (101.6 in) |
| Width | 2,100 mm (82.7 in) |
| Machine Weight | 4,320 kg (9,524 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 275 mm stroke and 530 mm daylight on a 1,270 mm bed
- 60 Ton of bending power concentrated on a short length
- 410 mm throat depth, the series standard
- 160 mm/s approach and 165 mm/s return keep cycles short on small parts
Limitations
- Only 1,000 mm between the columns
- Crowning is not listed for this size in Ermak's table
- 4,320 kg is heavy for a bed this short
- Backgauge X travel is 500 mm, the short gauge of the series
Best For
Frequently Asked Questions
01
Beyond the 60 Ton rating, it has a longer stroke (275 mm), more daylight (530 mm) and a deeper throat (410 mm). The Power-Bend Falcon 1270-40 lists 170 mm, 387 mm and 350 mm and weighs 3,220 kg, against 4,320 kg here.
02
The distance between the columns is 1,000 mm (39.4 in). Wider parts, up to the 1,270 mm bending length, have to be bent within the 410 mm throat.
03
The main motor is 7.5 kW and the oil capacity is 150 L. Ermak offers a start-stop system as an option that switches the main motor off when the upper beam has not moved for 2 minutes.
04
Yes. A motorized two-axis backgauge (X and R) is standard on the series. On this size X travels 500 mm at 500 mm/s and R travels 250 mm at 350 mm/s, with 2 finger blocks.
More from Ermak
Other CNC Press Brakes
Salvagnini P4 LEAN
LVD Easy-Form 110/42

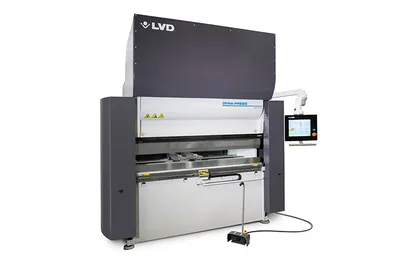

LVD Dyna-Press 60/20 Pro
