Enshu Enshu EV540
Key Specifications
X Travel
Y Travel
Z Travel
Spindle Taper
Tool Capacity
Table Size
Overview

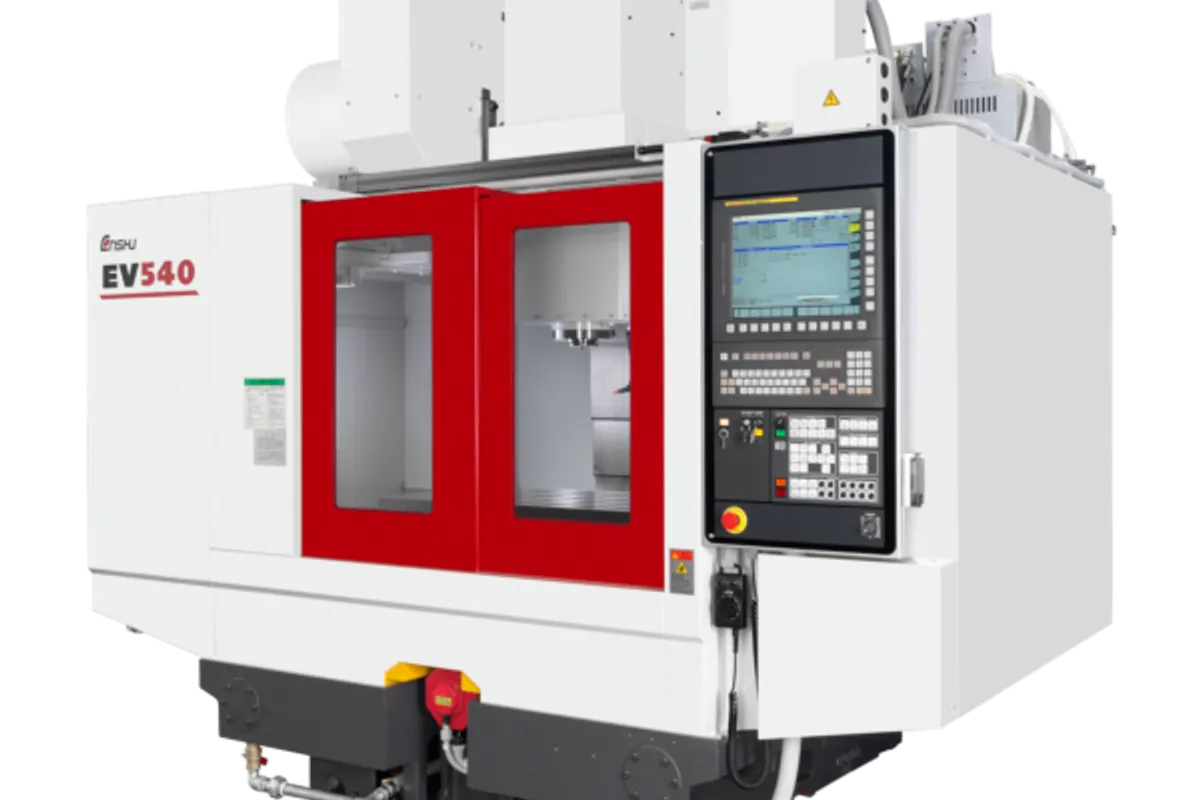

The Enshu EV540 is a large-table vertical machining center designed for medium to large workpieces requiring substantial cutting capability. With axis travels of 1,000 x 540 x 510 mm and a generous 1,100 x 550 mm working surface, the EV540 provides the work envelope for machining larger automotive and industrial components that exceed the capacity of compact production VMCs. The 1,000 kg table load capacity handles heavy fixtures and substantial workpieces.
The standard configuration features a BT50 taper spindle running at 6,000 RPM, delivering the torque and rigidity needed for heavy face milling, boring, and roughing operations on cast iron and steel. An optional BT40 configuration pushes spindle speed to 13,000 RPM for shops focused on aluminum and light alloy machining where speed matters more than torque. Rapid traverse reaches 32,000 mm/min with AI contour control for optimized cutting feed rates.
The EV540 accommodates 20 tools with BT50 or 30 tools with the BT40 option, providing solid tool capacity for production operations. Enshu's AI contour control system optimizes feed rates during cutting to maintain surface quality while maximizing material removal rates. The machine's rigid construction handles the higher cutting forces generated by BT50 tooling during heavy roughing and face milling operations.
This machine targets shops machining engine blocks, cylinder heads, large pump housings, and other components where the combination of a large work envelope, heavy cutting capability, and production reliability is essential. The EV540 competes with other large-table production VMCs from Mazak, Okuma, and Mori Seiki in the medium-volume production segment.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,100 x 550 mm (43.3 x 21.7 in) |
| X-Axis Travel | 1,000 mm (39.4 in) |
| Y-Axis Travel | 540 mm (21.3 in) |
| Z-Axis Travel | 510 mm (20.1 in) |
| Spindle Speed | 6,000 RPM (BT50 standard) / 13,000 RPM (BT40 option) |
| Spindle Taper | BT50 standard / BT40 optional |
| Tool Capacity | 20 tools (BT50) / 30 tools (BT40) |
| Rapid Traverse Rate | 32,000 mm/min (1,260 ipm) |
| Max Workpiece Weight | 1,000 kg (2,205 lb) |
| CNC Control | Fanuc 31i-B5 |
| Axis Travel | X axis |
| Y Axis | 540mm |
| Z Axis | 510mm |
| Cutting Feedrate | 32,000mm/min ※With AI contour control |
| Table | Table working surface |
| Maximum Loading Weight | 1,000kg |
| Spindle | Maximum spindle speeds |
| Tool Shank Type | MAS BT50（Standard）, MAS BT40（BT40 Option） |
| Auto Tool Changer | Magazine tool capacity |
Specifications sourced from enshu.co.jp — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,000 mm X-travel and 1,100 x 550 mm table accommodate large automotive and industrial components in a single setup
- Dual taper options (BT50 for torque, BT40 for speed) let shops configure the machine for their primary material and application
- 1,000 kg table capacity handles heavy castings and substantial fixturing without compromising accuracy
- AI contour control optimizes feed rates during cutting for improved surface quality and cycle time balance
- BT50 spindle provides the torque and rigidity for heavy face milling and boring on cast iron and steel
- Production-proven Enshu design delivers consistent accuracy and reliability across multi-shift operations
Limitations
- BT50 standard spindle at 6,000 RPM is relatively slow for aluminum machining; the BT40 option should be considered for high-speed applications
- 32,000 mm/min rapid traverse is moderate compared to high-speed production VMCs with 50,000+ mm/min rapids
- Large footprint and weight may limit placement options in smaller shops
- Enshu's service network outside Japan is limited compared to Mazak, Okuma, and DMG Mori
Best For
Frequently Asked Questions
01
New Enshu EV540 machines typically price between $250,000 and $400,000 depending on spindle taper selection, tool magazine capacity, and automation options. The BT50 configuration is standard, with the BT40 high-speed option at a similar price point.
02
Choose BT50 if your primary work involves cast iron, steel, or heavy roughing where torque and rigidity are critical. Choose BT40 if you primarily machine aluminum and light alloys where higher spindle speed (13,000 RPM vs 6,000 RPM) and faster tool changes drive productivity.
03
AI contour control is Enshu's feed rate optimization system that automatically adjusts cutting feed rates based on the programmed contour and machine dynamics. It maintains surface quality during complex profiles while maximizing material removal rates during straight-line and large-radius sections.
04
The EV540 is significantly larger with 1,000 mm X-travel versus 560 mm, 1,000 kg table capacity versus 500 kg, and BT50 standard taper versus BT40. The EV540 handles much larger and heavier parts but has slower rapids. The EV450Te is better for medium-sized parts at higher production rates.
