Enshu Enshu GE30V

$150,000 - $250,000 Updated 2026-03-19

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

600 mm (23.6 in)

Z Travel

400 mm (15.7 in)

Spindle Taper

BT30 standard / BT40 optional

Tool Capacity

24 tools (BT30) / 20 tools (BT40)

Table Size

650 x 400 mm (25.6 x 15.7 in)

Overview

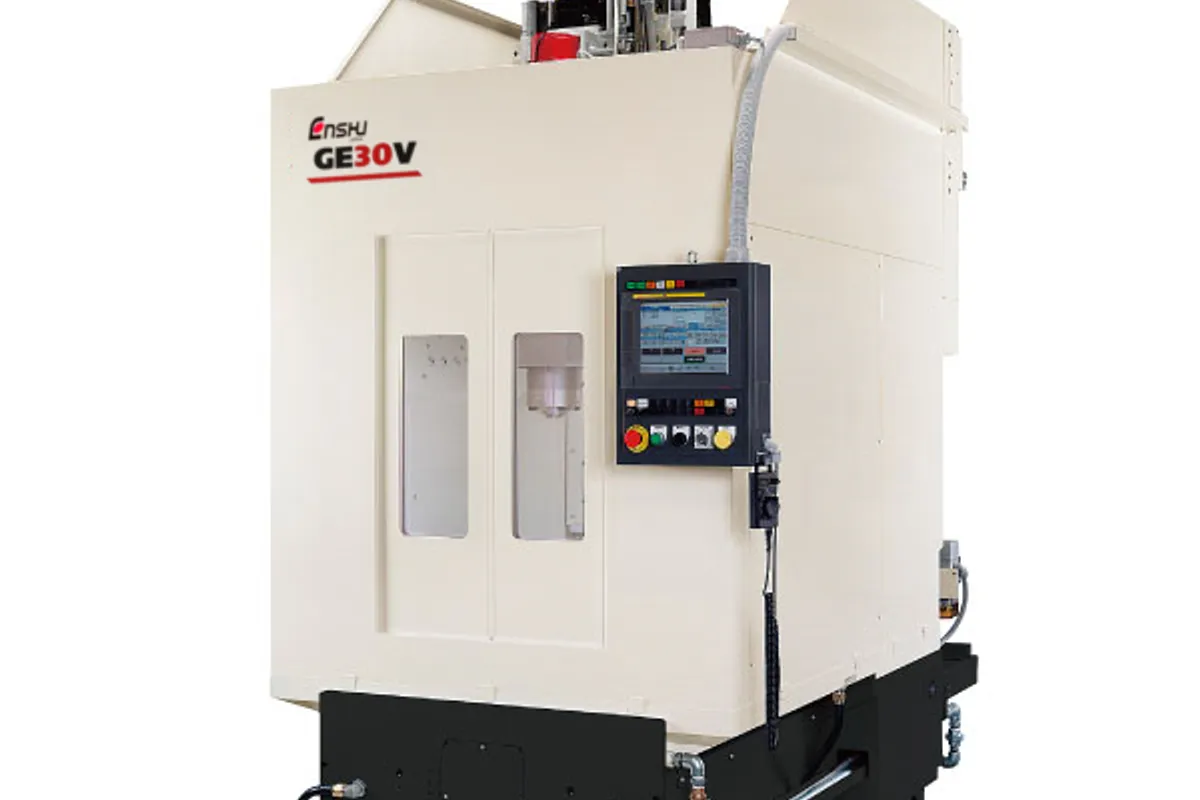

The Enshu GE30V is a production-oriented vertical machining center specifically designed for integration into automated system lines and high-volume manufacturing cells. With axis travels of 600 x 600 x 400 mm and a 650 x 400 mm working surface, the GE30V is built from the ground up as a component in mass production systems rather than a standalone job shop machine. Enshu describes it as a special VMC most suited for mass production of small parts.

The standard configuration features a BT30 taper spindle running at 13,000 RPM, optimized for high-speed drilling, tapping, and light milling on aluminum and non-ferrous parts. An optional BT40 configuration at 8,000 RPM provides more torque and rigidity for shops needing heavier cutting capability on ferrous materials. Rapid traverse reaches 50,000 mm/min across all axes, matching the speed requirements of production environments where non-cutting time directly affects throughput.

The 24-tool magazine in BT30 configuration (20 tools with BT40) provides adequate capacity for the repetitive operations typical in mass production. The table supports workpieces up to 500 kg, which is generous for the machine's intended application of small-part production and allows heavy production fixtures. The machine's design emphasizes repeatability and reliability over versatility, with every aspect optimized for sustained high-volume output.

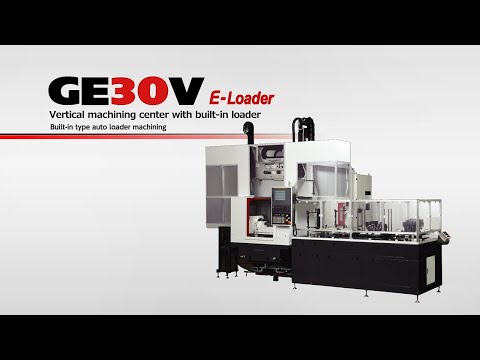

The GE30V is frequently deployed in multi-machine system lines with automated part transfer, where several machines perform sequential operations on parts moving through a production flow. Enshu's systems integration division offers turnkey solutions connecting multiple GE30V machines into unified production systems with central control and monitoring. This system-line focus is a key differentiator from general-purpose VMCs.

Full Specifications

Parameter	Value
Table Size	650 x 400 mm (25.6 x 15.7 in)
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	600 mm (23.6 in)
Z-Axis Travel	400 mm (15.7 in)
Spindle Speed	13,000 RPM (BT30 standard) / 8,000 RPM (BT40 option)
Spindle Taper	BT30 standard / BT40 optional
Tool Capacity	24 tools (BT30) / 20 tools (BT40)
Rapid Traverse Rate	50,000 mm/min (1,969 ipm) all axes
Max Workpiece Weight	500 kg (1,102 lb)
CNC Control	Fanuc 31i-B5
Axis Travel	X axis
Y Axis	600mm (23.6in)
Z Axis	400mm (15.7in)
Cutting Feedrate	50,000mm/min (1,968.5in/min) *AI Advanced preview control
Table	Table working surface
Maximum Loading Weight	500kg (1,102.3lbs)
Spindle	Maximum spindle speeds
Tool Shank Type	MAS BT30 (Standard), MAS BT40 (Option)
Atc	Magazine tool capacity

Specifications sourced from enshu.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

Purpose-built for system line integration with automated part transfer and multi-machine production flows
Dual taper options (BT30 at 13,000 RPM or BT40 at 8,000 RPM) allow matching the machine to material and application requirements
50,000 mm/min rapid traverse across all axes minimizes non-cutting time in production cycles
500 kg table capacity supports heavy production fixtures for reliable part location and clamping
Enshu's systems integration division provides turnkey multi-machine production line solutions
600 x 600 mm XY travels offer good reach for small-part production with room for multi-part fixtures

Limitations

System-line orientation means the machine is overspecialized for general-purpose job shop use
BT30 standard taper limits cutting forces for steel and cast iron machining applications
Machine is designed for specific production tasks rather than the varied work mix typical in job shops
Enshu's limited North American and European dealer network affects availability and service support

Best For

Automotive mass production lines machining small aluminum castings, brackets, and fittings in automated sequence System line installations requiring compact, fast VMCs integrated with automated part transfer systems High-volume small-part production where multiple machines perform sequential operations on a production flow Manufacturers needing turnkey multi-machine production systems from a single supplier with proven integration capability Electronics and precision hardware production requiring consistent accuracy across tens of thousands of parts

Frequently Asked Questions

01 What does an Enshu GE30V cost?

New Enshu GE30V machines typically price between $150,000 and $250,000 per machine, though system-line installations with multiple machines, automated transfer, and central control represent significantly larger total investments.

02 What is the difference between BT30 and BT40 configuration?

The BT30 configuration runs at 13,000 RPM with 24 tools, optimized for high-speed aluminum and non-ferrous machining. The BT40 option runs at 8,000 RPM with 20 tools, providing more torque and rigidity for shops that need to cut steel or cast iron. Choose based on your primary material.

03 How does the GE30V differ from the WE30Ve?

Both machines share similar table sizes, but the GE30V has 600 mm Y-travel versus 400 mm on the WE30Ve, and runs at 13,000 RPM versus 12,000 RPM. The GE30V has greater travel flexibility, while the WE30Ve may differ in its specific production cell integration approach.

04 Can the GE30V operate as a standalone machine?

Yes, the GE30V functions as a standalone VMC, but its design is optimized for system line integration. Shops buying a single machine for general job shop work would likely be better served by a conventional VMC designed for flexibility.
