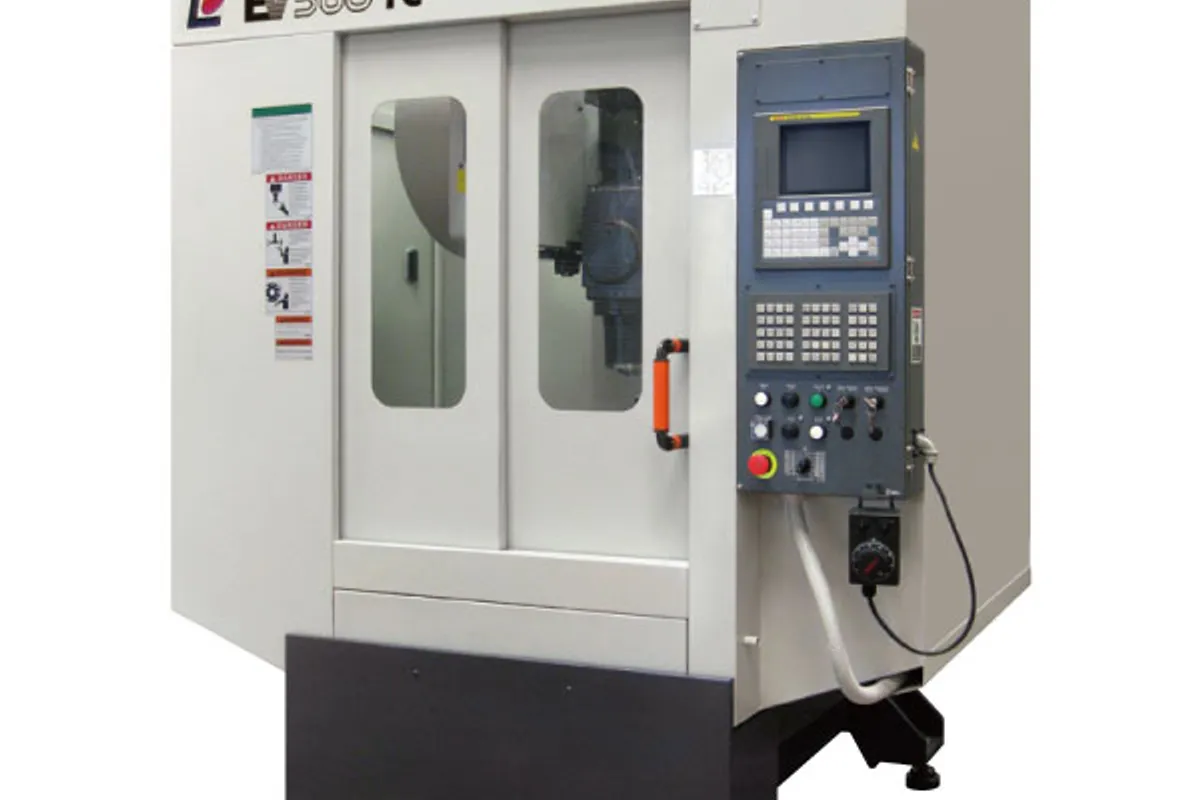

Enshu Enshu EV360Te

$120,000 - $200,000 Updated 2026-03-19

Key Specifications

X Travel

600 mm (23.6 in)

Y Travel

360 mm (14.2 in)

Z Travel

300 mm (11.8 in)

Spindle Taper

BT30

Tool Capacity

24 tools

Table Size

650 x 350 mm (25.6 x 13.8 in)

Overview

The Enshu EV360Te is a compact, high-speed vertical machining center built for production drilling, tapping, and milling of small to medium parts. With axis travels of 600 x 360 x 300 mm and a 650 x 350 mm working surface, this BT30-class machine delivers rapid processing of aluminum, brass, and light alloy components in high-volume production environments. The EV360Te is designed to minimize cycle times through fast axis movement and quick tool changes.

The spindle runs at 10,000 RPM standard with a BT30 taper, and an optional 20,000 RPM configuration is available for shops demanding the highest speeds on aluminum parts. Rapid traverse reaches 50,000 mm/min on X and Y axes and 60,000 mm/min on Z, keeping non-cutting time to an absolute minimum during production cycles. The 24-tool magazine provides ample capacity for typical small-part production operations.

The table supports workpieces up to 250 kg, which is generous for the machine's intended work envelope of small to medium parts. Enshu's AI Advanced preview control optimizes cutting feed rates up to 50,000 mm/min, allowing aggressive material removal during contouring operations while maintaining surface quality. The compact machine design integrates well into multi-machine production cells and automated lines.

The EV360Te excels in production environments machining electronics enclosures, small automotive components, hydraulic fittings, and precision hardware. Its combination of high speed, compact footprint, and production-oriented design makes it a natural fit for shops that need to maximize throughput on small parts without the cost and floor space of larger machines.

Full Specifications

Parameter	Value
Table Size	650 x 350 mm (25.6 x 13.8 in)
X-Axis Travel	600 mm (23.6 in)
Y-Axis Travel	360 mm (14.2 in)
Z-Axis Travel	300 mm (11.8 in)
Spindle Speed	10,000 RPM standard (20,000 RPM optional)
Spindle Taper	BT30
Tool Capacity	24 tools
Rapid Traverse Xy	50,000 mm/min (1,969 ipm)
Rapid Traverse Z	60,000 mm/min (2,362 ipm)
Cutting Feedrate	50,000mm/min (2,362.2in/min) *AI Advanced preview control
Max Workpiece Weight	250 kg (551 lb)
CNC Control	Fanuc 31i-B5
Axis Travel	X axis
Y Axis	360mm (14.2in)
Z Axis	300mm (11.8in)
Rapid Feedratez	60,000mm/min (2,362.2in/min)
Table	Table working surface
Maximum Loading Weight	250kg (551.2lbs)
Spindle	Maximum spindle speeds
Tool Shank Type	MAS BT30
Atc	Magazine tool capacity

Specifications sourced from enshu.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

Rapid traverse of 50,000/60,000 mm/min on XY/Z axes delivers class-leading non-cutting time reduction for small-part production
Optional 20,000 RPM spindle doubles the speed capability for high-speed aluminum drilling and tapping applications
24-tool magazine provides ample capacity without the bulk and cost of larger tool changers
AI Advanced preview control optimizes cutting feed rates for improved cycle times on contoured features
250 kg table capacity is generous for the machine's compact work envelope, supporting heavy fixturing
Compact footprint integrates easily into multi-machine production cells and automated manufacturing lines

Limitations

BT30 taper limits cutting forces and tooling options compared to BT40 machines for heavier material removal
360 mm Y-travel is relatively short, limiting the size of parts that can be machined in the depth direction
300 mm Z-travel restricts tall part and deep cavity machining applications
Enshu's limited dealer network outside Japan affects service availability in North America and Europe

Best For

High-volume production of small aluminum and light alloy parts requiring rapid drilling, tapping, and milling cycles Electronics and telecommunications manufacturers machining enclosures, heat sinks, and connector housings Automotive tier suppliers producing small fittings, brackets, and precision components at high throughput rates Multi-machine production cells where compact, fast VMCs process parts in parallel for maximum output Shops needing optional 20,000 RPM capability for high-speed aluminum machining at production volumes

Frequently Asked Questions

01 What does an Enshu EV360Te cost?

New Enshu EV360Te machines typically price between $120,000 and $200,000 depending on spindle speed option, automation integration, and control upgrades. The 20,000 RPM spindle option adds to the base price.

02 Should I choose 10,000 or 20,000 RPM?

Choose 20,000 RPM if you primarily machine aluminum and light alloys where higher spindle speed directly reduces cycle times on drilling and tapping operations. The 10,000 RPM standard is sufficient for brass, mild steel, and mixed-material production where extreme speed is less critical.

03 How does the EV360Te compare to the SV130?

The EV360Te is significantly larger with 600 x 360 x 300 mm travels versus 320 x 400 x 250 mm, BT30 taper versus No. 15 taper, and 250 kg table capacity versus 110 kg. The SV130 is an ultra-compact machine for the smallest parts, while the EV360Te handles a broader range of small to medium components.

04 What is AI Advanced preview control?

AI Advanced preview control is Enshu's feed rate optimization technology that looks ahead in the program to anticipate contour changes and optimize feed rates accordingly. It enables cutting feed rates up to 50,000 mm/min while maintaining surface quality through corners and complex profiles.
