Emco Hyperturn 65 Powermill G2

Q: How much does the Emco Hyperturn 65 Powermill G2 cost?

The price estimate for the Emco Hyperturn 65 Powermill G2 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/emco-hyperturn-65-powermill-g2#price; the request is passed to Emco or an authorised dealer.

Specs verified 2026-10-05 · emco-world.com Updated 2026-10-05

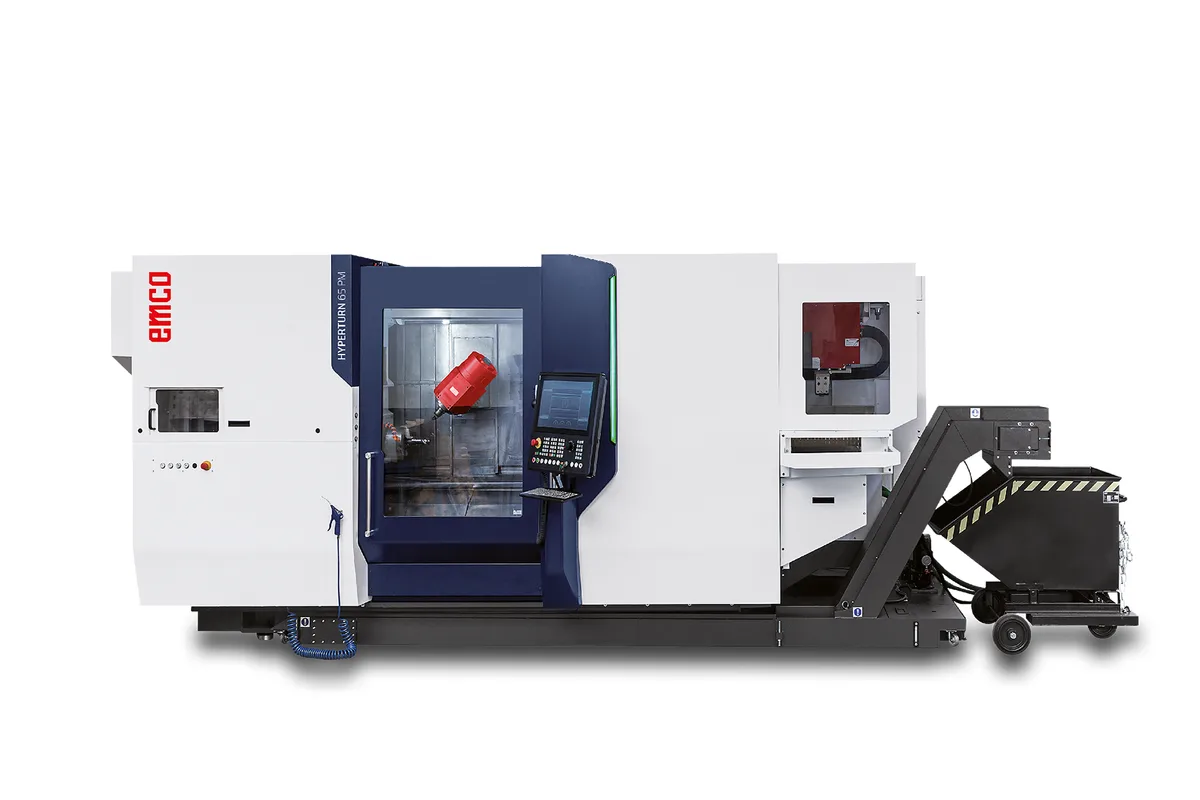

Emco Hyperturn 65 Powermill G2 turn-mill centre

Image: emco-world.com, Emco

Key Specifications

Max Spindle

0-5000 (4000) rpm

Tool Capacity

40 / 80 / 120

Spindle Power

29 (38) kW

x axis travel

X1/X2 530/210 mm

y axis travel

Y1 240 mm

z axis travel

Z1/Z2 1215/1205 mm

How much does the Emco Hyperturn 65 Powermill G2 cost?

Price estimate

Uncertain

We do not have a price for the Emco Hyperturn 65 Powermill G2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Emco Hyperturn 65 Powermill G2 combines three cutting systems in one work area: a main and counter spindle for turning, a milling spindle on a B and Y axis above them, and a lower tool turret with its own milling drive. Bar capacity is 65 (102) mm and maximum turning diameter 500 mm (19.7 in).

The milling spindle is what makes it a multi-tasking machine. It is rated 37 (30) kW and 110 (58) Nm and draws its tools from a chain magazine with 40, 80 or 120 slots. The upper slide carrying it travels 530 mm in X and Y1 240 mm, far more than any turret Y axis, so prismatic features can be machined on a turned blank much as they would be on a machining centre. Emco notes that both tool systems can be used on both spindles.

Below, the turret keeps turning tools and short drilling cycles out of the tool-change queue. Its driven positions are rated 0-12000 rpm, 11.7 (11.7) kW and 28 (25) Nm, on BMT55P or BMT45P.

The spindles deserve a careful read. Main spindle power is 29 (38) kW and torque 250 (800) Nm; the counter spindle has 29 (33) kW and 250 (420) Nm. The bracketed values are the big-bore, high-torque variants and run to the bracketed speed in 0-5000 (4000) rpm. All spindles are liquid-cooled. With 1,500 mm (59.1 in) between the spindles and Z travels of Z1/Z2 1215/1205 mm, the machine handles long parts for its diameter. It weighs approx. 16500 kg.

Full Specifications

Parameter	Value
X Axis Travel	X1/X2 530/210 mm
Y Axis Travel	Y1 240 mm
Z Axis Travel	Z1/Z2 1215/1205 mm
Bar Capacity	65 (102) mm
Max Turning Diameter	500 mm (19.7 in)
Swing Over Bed	500 mm (19.7 in)
Spindle Distance	1,500 mm (59.1 in)
Max Spindle Speed	0-5000 (4000) rpm
Spindle Motor Power	29 (38) kW
Spindle Torque	250 (800) Nm
Counter Spindle Speed	0-5000 (4000) rpm
Counter Spindle Power	29 (33) kW
Counter Spindle Torque	250 (420) Nm
Tool Capacity	40 / 80 / 120
Turret Driven Stations	12 (16) / BMT55P (BMT45P)
Turret Driven Tool Speed	0-12000 rpm
Turret Driven Tool Power	11.7 (11.7) kW
Turret Driven Tool Torque	28 (25) Nm
Milling Spindle Power	37 (30) kW
Milling Spindle Torque	110 (58) Nm
Machine Dimensions	5,970 x 2,430 x 2,480 mm (235.0 x 95.7 x 97.6 in)
Machine Weight	approx. 16500 kg

Specifications sourced from emco-world.com — verified 2026-10-05

Strengths & Limitations

Strengths

Milling spindle with B and Y axis, rated 37 (30) kW and 110 (58) Nm
40-, 80- or 120-slot chain-type tool magazine
Additional lower turret with milling drive: 11.7 (11.7) kW, 0-12000 rpm
Main spindle torque of 250 (800) Nm depending on variant
Both tool systems can be used on both spindles
All spindles liquid-cooled

Limitations

The high-torque spindle variants are limited to the bracketed speed in 0-5000 (4000) rpm
One lower turret only; the Hyperturn 65 Powermill High Performance carries two
Needs 5,970 x 2,430 x 2,480 mm (235.0 x 95.7 x 97.6 in) of floor and weighs approx. 16500 kg
Emco's table gives the milling spindle speed in a format that could not be read cleanly, so confirm it with the quotation

Best For

Complex turned-and-milled parts finished in one setup Bar work up to 65 (102) mm with 5-axis features Chuck parts up to 500 mm (19.7 in) diameter Small to medium batches with large tool lists

Frequently Asked Questions

01 What is the Powermill part of the Hyperturn 65 Powermill G2?

A separate milling spindle on a B and Y axis, fed from a chain-type tool magazine with 40, 80 or 120 slots. It is rated 37 (30) kW and 110 (58) Nm, and it works alongside a lower tool turret with its own milling drive.

02 What spindle options are there?

The main spindle is listed with 29 (38) kW, 250 (800) Nm and 0-5000 (4000) rpm; the counter spindle with 29 (33) kW and 250 (420) Nm. The first value is the standard spindle and the bracketed one the larger variant, which goes with the bracketed bar size in 65 (102) mm.

03 How long a part can it machine?

The distance between the spindles is 1,500 mm (59.1 in) and the Z travels are Z1/Z2 1215/1205 mm. Maximum turning diameter and swing over the bed are both 500 mm (19.7 in).

04 How does it differ from the Hyperturn 65 Powermill High Performance?

The Hyperturn 65 Powermill High Performance has two lower turrets, listed as 2x12 (2x16), each on its own X/Y/Z axes, where the G2 has one. The G2 offers the larger magazine choice of 40, 80 or 120 slots.
