DN Solutions CNC Lathes / Turning Centers

DN Solutions PUMA 2600 SYB II

Est. $175,000 - $230,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

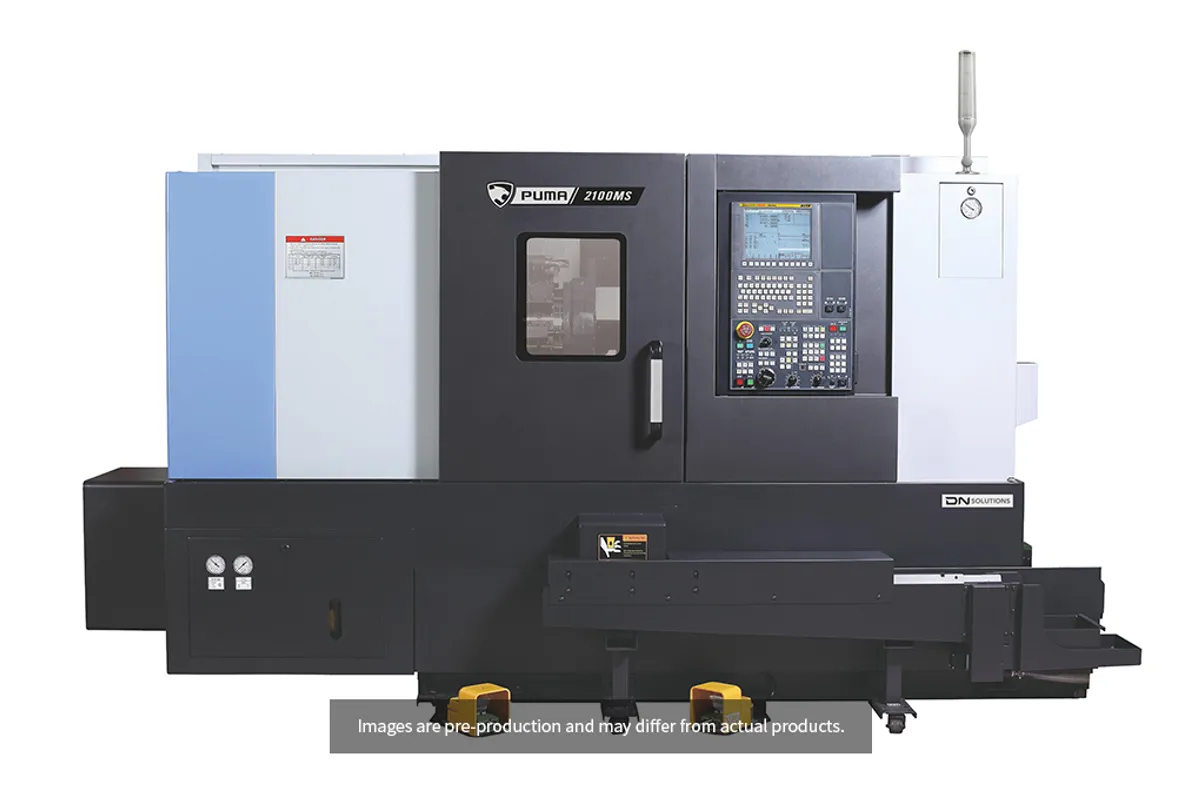

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

260 mm (10 in)

Y Travel

105 mm (4 in)

Z Travel

830 mm (33 in)

Max Spindle

2,800 rpm

Rapid Traverse

30 m/min (1,181 ipm)

Spindle Power

26 kW (35 hp)

How much does the DN Solutions PUMA 2600 SYB II cost?

Estimated price range

Est.$175,000 - $230,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA 2600 SYB II is the short-bed 12 in member of the PUMA 2600 Y-axis range with a sub-spindle added. The main spindle delivers 1,123 N·m (828 ft-lb) from 26 kW (35 hp) at up to 2,800 rpm; the sub-spindle is listed at 4,500 rpm and 7.5 kW (10 hp).

Read those two lines together and the intended division of labour is plain. Nearly all of the metal removal belongs on the main side, where a 12 in chuck and four-figure torque can take deep cuts in large bar and castings. The second spindle, with well under a third of the power, receives the part for a facing pass, a chamfer, a back bore or a few drilled holes. For parts whose second side is as demanding as the first, this is the wrong pairing, and DN's 10 in long-bed PUMA 2600 LSY II lists a 15 kW (20 hp), 6,000 rpm sub-spindle.

Three different speed ceilings apply on one machine: 2,800 rpm at the main spindle, 4,500 rpm at the sub-spindle and 5,000 rpm at the live tools. The turret has 12 stations and the Y axis travels 105 mm (4 in), so cross-holes and flats can be cut at whichever spindle is holding the part.

The envelope is 376 mm (15 in) in turning diameter and 725 mm (29 in) in turning length, on 260 mm (10 in) of X and 830 mm (33 in) of Z. Parts longer than that belong on the PUMA 2600 LSYB II, which lists 1,245 mm (49 in). The PUMA 2600 SYB II weighs 6,650 kg (14,661 lb) and occupies 3,873 × 1,945 mm (152 × 77 in) of floor, standing 2,163 mm (85 in) high.

Full Specifications

Parameter	Value
Chuck Size	12 in
Max Turning Diameter	376 mm (15 in)
Max Turning Length	725 mm (29 in)
Rapid Traverse Rate	30 m/min (1,181 ipm)
X-Axis Travel	260 mm (10 in)
Y-Axis Travel	105 mm (4 in)
Z-Axis Travel	830 mm (33 in)
Max Spindle Speed	2,800 rpm
Spindle Motor Power	26 kW (35 hp)
Spindle Torque	1,123 N·m (828 ft-lb)
Sub Spindle Speed	4,500 rpm
Sub Spindle Power	7.5 kW (10 hp)
Turret Stations	12
Live Tool Speed	5,000 rpm
Floor Space Required	3,873 × 1,945 × 2,163 mm (152 × 77 × 85 in)
Machine Weight	6,650 kg (14,661 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

1,123 N·m (828 ft-lb) and 26 kW (35 hp) at the main spindle with a 12 in chuck
Sub-spindle at 4,500 rpm and 7.5 kW (10 hp) completes the back of the part in the same cycle
Live tools to 5,000 rpm and 105 mm (4 in) of Y travel on a 12-station turret
6,650 kg (14,661 lb), against 7,950 kg (17,527 lb) for the long-bed PUMA 2600 LSYB II
30 m/min (1,181 ipm) rapid traverse

Limitations

The sub-spindle's 7.5 kW (10 hp) is half the 15 kW (20 hp) listed for the PUMA 2600 LSY II sub-spindle
Main spindle speed stops at 2,800 rpm
Turning length is 725 mm (29 in); the PUMA 2600 LSYB II lists 1,245 mm (49 in)
Sub-spindle chuck size and torque are missing from DN's table

Best For

Heavy first-operation turning followed by light back-end work Flanges, hubs and short shafts in a 12 in chuck Parts up to 725 mm (29 in) long that should leave the machine complete Tough materials roughed at low rpm with 1,123 N·m (828 ft-lb)

Frequently Asked Questions

01 How strong is the sub-spindle on the PUMA 2600 SYB II?

DN lists it at 7.5 kW (10 hp) with a maximum speed of 4,500 rpm. That compares with 26 kW (35 hp) at the main spindle. The table does not give the sub-spindle's torque or chuck size, so ask for both if the second operation involves more than light cuts.

02 What is the difference between the PUMA 2600 SYB II and the PUMA 2600 YB II?

The sub-spindle. Both list a 12 in chuck, 1,123 N·m (828 ft-lb), 2,800 rpm and a 725 mm (29 in) turning length in the same 3,873 × 1,945 × 2,163 mm (152 × 77 × 85 in) outline. The PUMA 2600 YB II has no sub-spindle rows and weighs 6,200 kg (13,669 lb), against 6,650 kg (14,661 lb) for the PUMA 2600 SYB II.

03 What part sizes does the PUMA 2600 SYB II handle?

Up to 376 mm (15 in) in turning diameter and 725 mm (29 in) in turning length. Travels are 260 mm (10 in) in X, 105 mm (4 in) in Y and 830 mm (33 in) in Z.

04 How fast do the spindles and live tools run?

The main spindle reaches 2,800 rpm, the sub-spindle 4,500 rpm and the live tools 5,000 rpm. The low main-spindle limit goes with its 1,123 N·m (828 ft-lb) torque rating, so small-diameter finishing at high surface speed is not this machine's strength.
