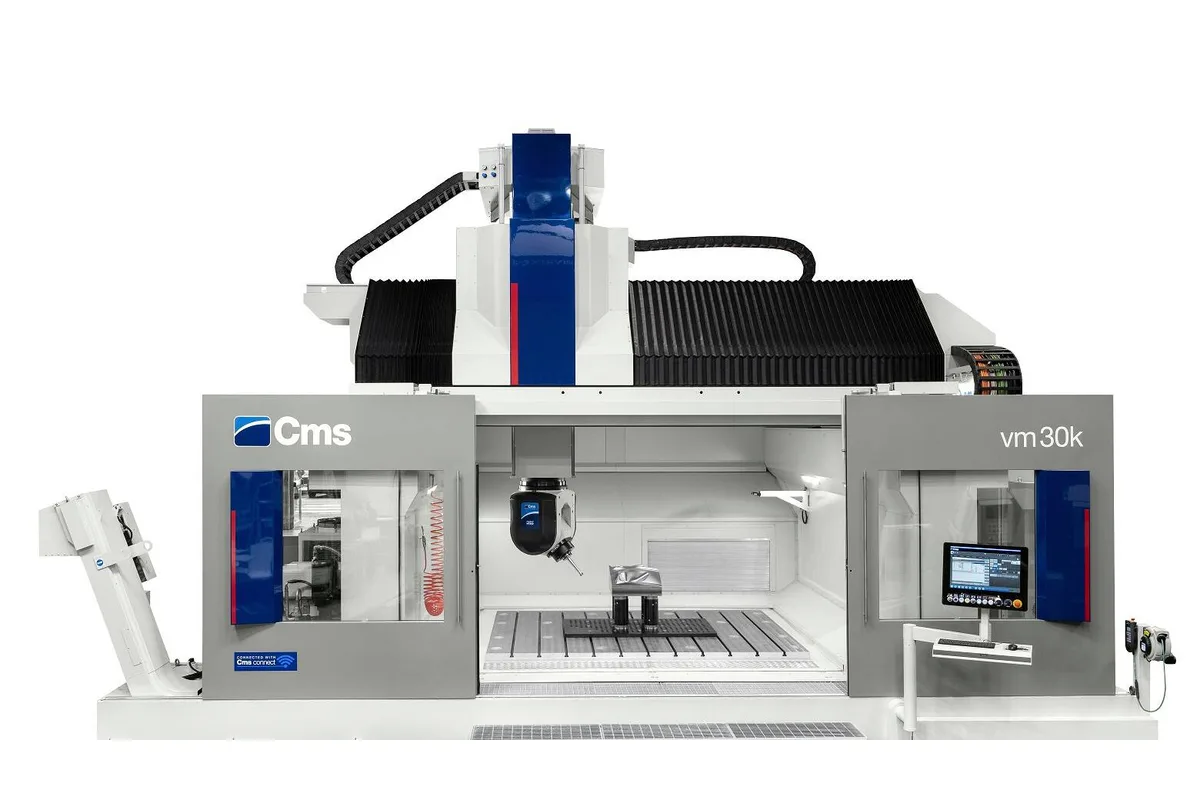

CMS VM 30K

Specs verified 2026-10-05 · cms.it Updated 2026-10-05

Image: cms.it, CMS

Key Specifications

versions

vm 30 K (monobloc), vm 30 OF (open frame)

x axis stroke

2,200 mm (86.6 in) (vm 30 K); 2,200 mm (86.6 in), 4,000 mm (157.5 in), 6,000 mm (236.2 in) (vm 30 OF)

y axis stroke

3,000 mm (118.1 in)

z axis stroke

1,300 mm (51.2 in)

machine weight

32,000 kg (70,547 lb)

machining units

TORQUE 5, TILT G, TILT M

How much does the CMS VM 30K cost?

Price estimate

Uncertain

We do not have a price for the CMS VM 30K that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CMS VM 30K is a 5-axis vertical machining center that CMS builds for steel as well as aluminum, light alloys and composites. Machine weight is 32,000 kg (70,547 lb), and the travels of the monobloc version are 2,200 mm (86.6 in) in X, 3,000 mm (118.1 in) in Y and 1,300 mm (51.2 in) in Z.

CMS names mold making, aeronautical and automotive parts as the target, with roughing through to finishing of medium-large components on one machine. The monobloc version has an integrated table with a load capacity of 10000 kg/m2 and stands on levelling devices, so CMS says no heavy-duty foundation is needed. An open-frame version, the vm 30 OF, extends X to 4,000 mm (157.5 in) or 6,000 mm (236.2 in) with the same Y and Z.

Three machining units are offered. TORQUE 5 rotates ± 300° in C and ± 110° in A with a blocking torque of 1000 / 1000 Nm. TILT G and TILT M both reach ± 360° and ± 120°, and their blocking torques rise to 3000 / 3000 Nm and 4000 / 4000 Nm. Positioning precision of the rotary axes tightens in the same order, from ± 6 arcsec to ± 2.5 arcsec and ± 2 arcsec.

Spindle choice follows the head. TILT M takes the widest set, including a 47 kW, 150 Nm unit at 15000 rpm on HSK 100A and a 73 kW unit at 28000 rpm on HSK 63A. CMS pairs this head with a 70 bar pump for internal cutting fluid, for deep drilling and heavy stock removal. On TORQUE 5 the options are 32 kW at 24000 rpm or 31 kW, 100 Nm at 15000 rpm.

Full Specifications

Parameter	Value
Versions	vm 30 K (monobloc), vm 30 OF (open frame)
X Axis Stroke	2,200 mm (86.6 in) (vm 30 K); 2,200 mm (86.6 in), 4,000 mm (157.5 in), 6,000 mm (236.2 in) (vm 30 OF)
Y Axis Stroke	3,000 mm (118.1 in)
Z Axis Stroke	1,300 mm (51.2 in)
Machine Weight	32,000 kg (70,547 lb)
Machining Units	TORQUE 5, TILT G, TILT M
C Axis Rotation	± 300° (TORQUE 5); ± 360° (TILT G, TILT M)
A Axis Rotation	± 110° (TORQUE 5); ± 120° (TILT G, TILT M)
Rotary Axes Torque S1 S6 C A	783 - 1300 / 521 - 868 Nm (TORQUE 5); 787 - 1560 / 504 - 998 Nm (TILT G); 787 - 1560 / 830 - 1472 Nm (TILT M)
Blocking Torque C A	1000 / 1000 Nm (TORQUE 5); 3000 / 3000 Nm (TILT G); 4000 / 4000 Nm (TILT M)
Rotary Axes Precision	± 6 arcsec (TORQUE 5); ± 2.5 arcsec (TILT G); ± 2 arcsec (TILT M)
Electrospindles Torque 5	32 kW, 68 Nm, 24000 rpm, HSK 63A; 31 kW, 100 Nm, 15000 rpm, HSK 63A
Electrospindles Tilt G	42 kW, 34 Nm, 24000 rpm, HSK 63A; 42 kW, 67 Nm, 24000 rpm, HSK 63A; 30 kW, 95 Nm, 22000 rpm, HSK 63A
Electrospindles Tilt M	42 kW, 34 Nm, 24000 rpm, HSK 63A; 42 kW, 67 Nm, 24000 rpm, HSK 63A; 30 kW, 95 Nm, 22000 rpm, HSK 63A; 47 kW, 150 Nm, 15000 rpm, HSK 100A; 73 kW, 70 Nm, 28000 rpm, HSK 63A

Specifications sourced from cms.it — verified 2026-10-05

Strengths & Limitations

Strengths

Built for steel as well as aluminum, light alloys and composites
TILT M head with a blocking torque of 4000 / 4000 Nm and rotary precision of ± 2 arcsec
Electrospindles up to 47 kW, 150 Nm at 15000 rpm on HSK 100A
Integrated table with 10000 kg/m2 load capacity and no heavy-duty foundations
70 bar pump for internal cutting fluid with the TILT M head

Limitations

Machine weight of 32,000 kg (70,547 lb) has to be planned for in transport and floor loading
X is 2,200 mm (86.6 in) on the monobloc version; longer strokes need the open-frame vm 30 OF
TORQUE 5 is limited to ± 300° in C and ± 110° in A
No tool magazine capacity, rapid traverse or accuracy of the linear axes is listed

Best For

Molds and dies in steel and aluminum Aeronautical and automotive structural parts of medium-large size Deep drilling and heavy roughing with through-spindle fluid at 70 bar

Frequently Asked Questions

01 What is the difference between the vm 30 K and the vm 30 OF?

The vm 30 K is the monobloc version, with an X stroke of 2,200 mm (86.6 in). The vm 30 OF is the open-frame version and is listed with X strokes of 2,200 mm (86.6 in), 4,000 mm (157.5 in) or 6,000 mm (236.2 in). Y is 3,000 mm (118.1 in) and Z is 1,300 mm (51.2 in) on both.

02 Which machining heads are available?

TORQUE 5, TILT G and TILT M. TORQUE 5 has rotations of ± 300° in C and ± 110° in A. TILT G and TILT M have ± 360° and ± 120°. Blocking torque is 1000 / 1000 Nm, 3000 / 3000 Nm and 4000 / 4000 Nm respectively.

03 What spindles can the VM 30K carry?

For TILT M the table lists 42 kW units at 24000 rpm, a 30 kW, 95 Nm unit at 22000 rpm, a 47 kW, 150 Nm unit at 15000 rpm on HSK 100A and a 73 kW, 70 Nm unit at 28000 rpm. TORQUE 5 takes a 32 kW, 68 Nm unit at 24000 rpm or a 31 kW, 100 Nm unit at 15000 rpm.

04 Does the machine need a special foundation?

CMS describes the monobloc machine as having an integrated table with 10000 kg/m2 load capacity, supported by dedicated levelling devices, and states that there is no need for heavy-duty foundations. The machine weighs 32,000 kg (70,547 lb).
