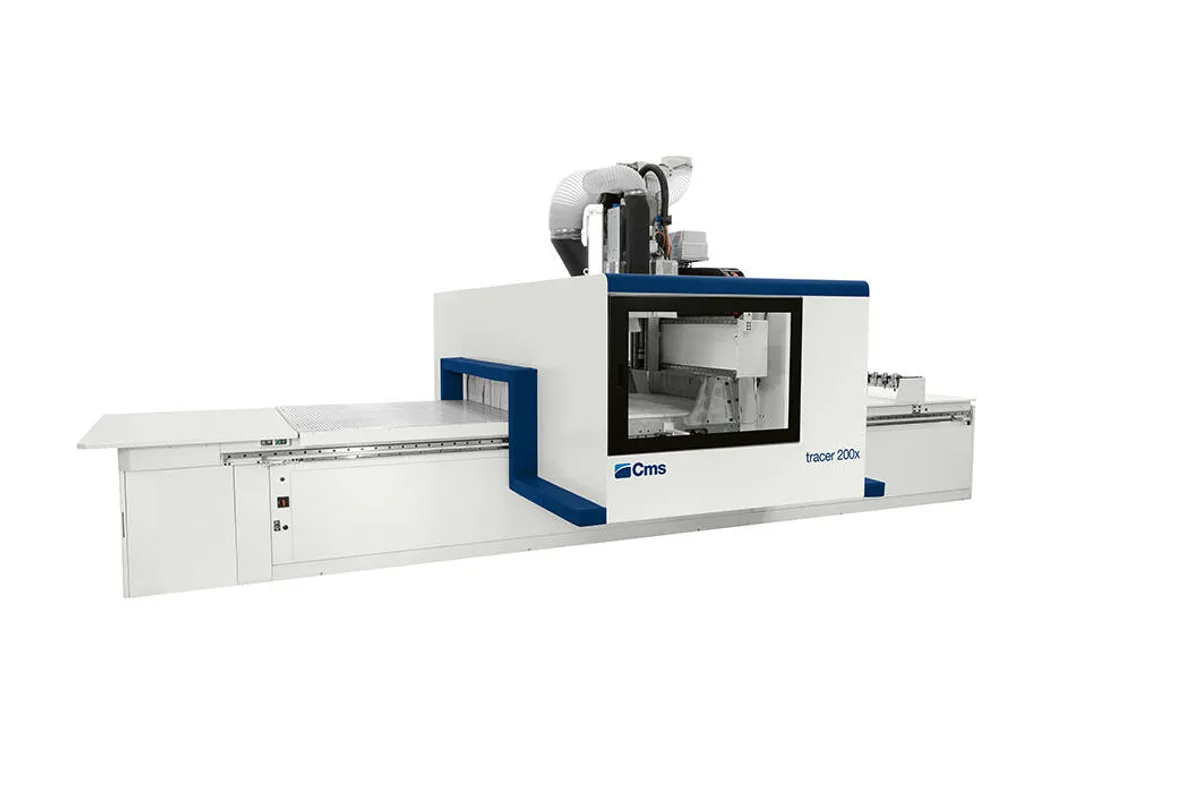

CMS Tracer 200X-300X
Image: cms.it, CMS
Key Specifications
Tool Capacity
models
vectorial speed pro space
vectorial speed pro speed
z axis panel passage
spindle power 3 4 axis
How much does the CMS Tracer 200X-300X cost?
Price estimate
We do not have a price for the CMS Tracer 200X-300X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CMS Tracer 200X-300X is a pair of CNC nesting centres for drilling and routing plastics and advanced materials. They are the fast machines of the Tracer line: vectorial speed in X-Y is 113 m/min in the PRO-SPEED version and 84 m/min in PRO-SPACE.
Between the two, the 300x is the taller and better-equipped model. Its Z axis panel passage is 180 mm (7.1 in) against 150 mm (5.9 in) on the 200x, and its tool changer takes up to 53 places against 38. Both list a 3- or 4-axis spindle of up to 15 kW (20.5 hp). A second power row of 13.5 kW (18.4 hp) applies to the 300x only; CMS's text speaks of a gantry able to house 5-axis units with 13.5Kw power.
Hold-down is the centre of the design. With the X-Vacuum System the vacuum is concentrated in the area of the worktable involved in machining, which CMS recommends for small parts and for very breathable materials that would otherwise shift. That matters in plastics nesting, where thin sheet and foam-backed laminates are hard to hold.
The drilling unit has up to 21 independent vertical spindles and 12 horizontal spindles at 8000 rpm, with a 125 mm (4.9 in) integrated blade in X. A 14-station FAST rack magazine rides in the mobile cabin for tool changes in less than 15 seconds. Both models can be supplied as a cell with automatic loading and an unloading belt.
Full Specifications
| Parameter | Value |
|---|---|
| Models | 200x, 300x |
| Vectorial Speed Pro Space | 84 m/min |
| Vectorial Speed Pro Speed | 113 m/min |
| Z Axis Panel Passage | 150 mm (5.9 in) (200x); 180 mm (7.1 in) (300x) |
| Spindle Power 3 4 Axis | 15 kW (20.5 hp) max. |
| Spindle Power Row 4 Axis | 13.5 kW (18.4 hp) max. (300x only) |
| Tool Capacity | up to 38 places (200x); up to 53 places (300x) |
| Drilling Vertical Spindles | up to 21 independent vertical spindles |
| Drilling Horizontal Spindles | 12 horizontal spindles max. |
| Drilling Rotation Speed Max | 8000 rpm |
| Integrated Blade in X Diameter | 125 mm (4.9 in) |
| Exhaust Air Consumption | 4430 m3/h |
| Exhaust Air Speed | 25 m/sec |
| Exhaust Outlet Diameter | 250 mm (9.8 in) |
Specifications sourced from cms.it — verified 2026-10-05
Strengths & Limitations
Strengths
- Vectorial speed of 113 m/min in the PRO-SPEED version
- X-Vacuum System concentrates vacuum in the area being machined
- Up to 53 places on the tool changer of the 300x
- Cell version with automatic loading and unloading belt
- 14-station FAST rack magazine for tool changes in less than 15 seconds
Limitations
- Panel passage is 150 mm (5.9 in) on the 200x and 180 mm (7.1 in) on the 300x, so formed parts with depth do not fit
- The 13.5 kW (18.4 hp) unit is listed for the 300x only
- CMS's table gives no X-Y working area and no clean spindle speed figure for these models
Best For
Frequently Asked Questions
01
The Z axis panel passage is 150 mm (5.9 in) on the 200x and 180 mm (7.1 in) on the 300x. The tool changer has up to 38 places on the 200x and up to 53 places on the 300x. The 13.5 kW (18.4 hp) spindle row is filled in for the 300x only.
02
CMS lists a vectorial speed in X-Y of 84 m/min for the PRO-SPACE version and 113 m/min for the PRO-SPEED version, the same for both models. The Tracer 100, by comparison, is listed at 78 m/min in its PRO-SPEED version.
03
It concentrates the vacuum in the worktable area involved in machining. CMS describes it as ideal for machining small parts or very breathable materials without the risk that the workpiece may move.
04
Yes. CMS states that the models are also available in cell version with both automatic loading and unloading belt. Extraction needs to handle 4430 m3/h of exhaust air through a 250 mm (9.8 in) outlet.
