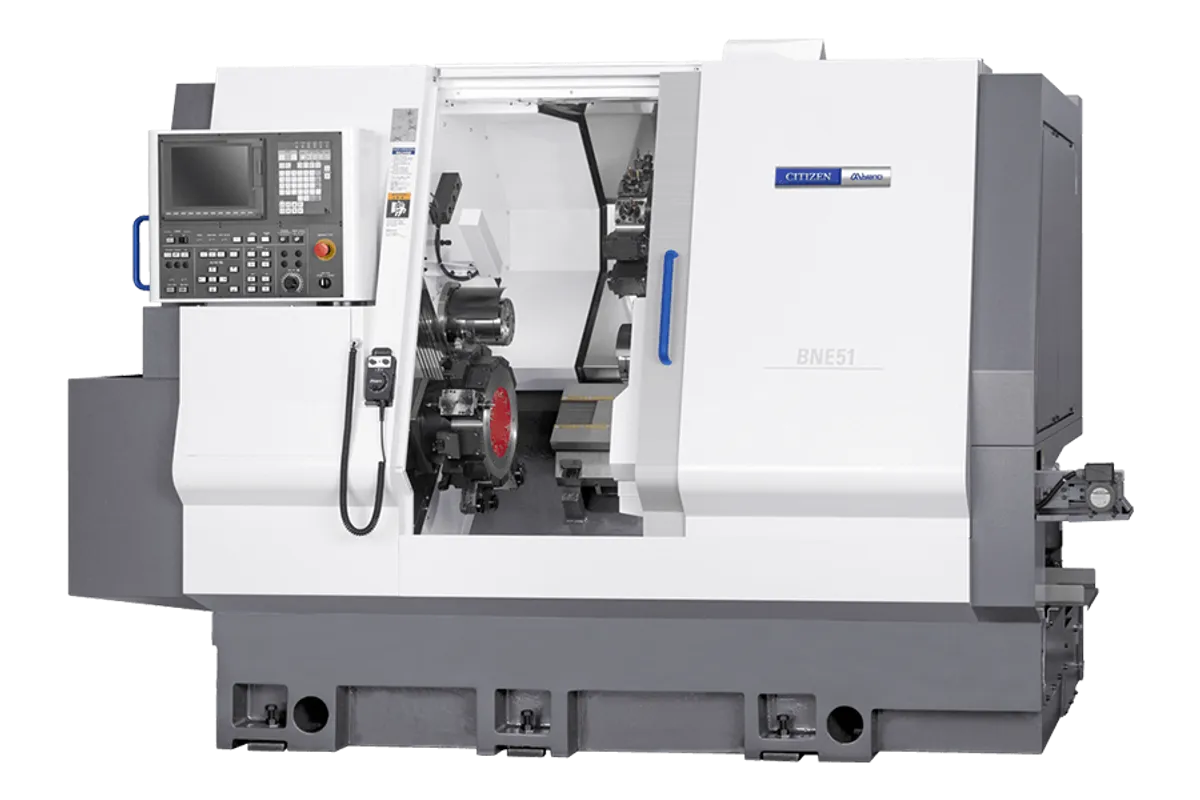

Citizen Miyano BNE-51MSY
Image: cmj.citizen.co.jp, Citizen Machinery
Key Specifications
maximum machining diameter of bar work sp1
maximum machining diameter of bar work sp2
maximum machining length
type of turret hd1
type of turret hd2
slide stroke hd1 x1 axis
How much does the Citizen Miyano BNE-51MSY cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Citizen Miyano BNE-51MSY is a two-spindle, two-turret fixed-headstock lathe made for short parts from 51 mm bar: Citizen gives a maximum machining length of 90 mm. Both spindles take 51 mm bar and run to 5,000 rpm, and each of the two 12-station turrets, HD1 and HD2, can hold up to 12 revolving tools.
The axis layout explains how the work is shared. HD1 moves 195 mm in X1 and 380 mm in Z1 and has the machine's Y axis, 80 (±40) mm. HD2 has 195 mm of X2 and 175 mm of Z2, and the table gives it no Y stroke. The second spindle (SP2) travels on its own slide, 155 mm in X3 and 450 mm in Z3, so it can pick the part off the main spindle and present the back end to a turret. Off-centre holes and milled flats therefore belong in the HD1 program, while HD2 suits turning, grooving and on-centre drilling.
Power is split unevenly between the spindles. SP1 has a 15/11 kW motor and SP2 a 7.5/5.5 kW motor, so heavy stock removal is planned on the main spindle and the back end is kept to finishing, facing and drilling. The revolving tools are driven by a 2.2 kW motor with 20 Nm as standard; a 4.0 kW, 25 Nm motor is an option. Turning tools take 20 mm square shanks and the tool holes are 25 mm in diameter.
The machine weighs 8,000 kg, stands 2,050 mm high and needs 2,725×2,159 mm of floor. Its close relative, the Miyano BNE-51MYY, has 18.5/15 kW on SP1, 11/7.5 kW on SP2, a 195 mm maximum machining length and weighs 8,080 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Maximum Machining Diameter of Bar Work Sp1 | 51 mm dia. |
| Maximum Machining Diameter of Bar Work Sp2 | 51 mm dia. |
| Maximum Machining Length | 90 mm |
| Type of Turret Hd1 | 12St.Turret |
| Type of Turret Hd2 | 12St.Turret |
| Slide Stroke Hd1 X1 Axis | 195 mm |
| Slide Stroke Hd1 Z1 Axis | 380 mm |
| Slide Stroke Hd1 Y1 Axis | 80 (±40) mm |
| Slide Stroke Hd2 X2 Axis | 195 mm |
| Slide Stroke Hd2 Z2 Axis | 175 mm |
| Slide Stroke Sp2 X3 Axis | 155 mm |
| Slide Stroke Sp2 Z3 Axis | 450 mm |
| Shank Height of Square Turning Tool | 20 mm Sq. |
| Tool Hole Diameter | 25 mm dia. |
| Maximum Number of Revolving Tools Hd1 | 12 |
| Maximum Number of Revolving Tools Hd2 | 12 |
| Main Spindle Speed Range Sp1 Sp2 | 5,000 rpm |
| Spindle Motor Sp1 | 15/11 kW |
| Spindle Motor Sp2 | 7.5/5.5 kW |
| Rivolving Tool Motor | 2.2kw 20Nm 4.0kw 25Nm(OP.) |
| Machine Height | 2,050 mm |
| Floor Space | 2,725×2,159 mm |
| Machine Weight | 8,000 kg |
Specifications sourced from cmj.citizen.co.jp — verified 2026-10-03
Strengths & Limitations
Strengths
- Both spindles take 51 mm bar and run to 5,000 rpm, so the back end can be finished at full diameter
- Two 12-station turrets, each able to hold up to 12 revolving tools
- HD1 carries 80 (±40) mm of Y travel for off-centre drilling and milling
- The second spindle moves 155 mm in X3 and 450 mm in Z3 on its own slide
- Optional 4.0 kW, 25 Nm revolving-tool motor in place of the standard 2.2 kW, 20 Nm
Limitations
- Maximum machining length is 90 mm, so longer shafts are outside its range
- Only HD1 has a Y stroke in the table; HD2 has 195 mm of X2 and 175 mm of Z2 and no Y
- SP2 has a 7.5/5.5 kW motor, half the 15/11 kW of SP1, which limits heavy cuts on the back end
- 8,000 kg on a 2,725×2,159 mm footprint needs a floor prepared for it
Best For
Frequently Asked Questions
01
Citizen gives a maximum machining length of 90 mm. Both the main spindle and the second spindle are rated for 51 mm bar work, so the machine is aimed at short, relatively large-diameter parts that are finished on both ends.
02
HD1. Its strokes are 195 mm in X1, 380 mm in Z1 and 80 (±40) mm in Y1. HD2 has 195 mm in X2 and 175 mm in Z2, with no Y stroke listed, so plan off-centre work on HD1.
03
The standard revolving-tool motor is 2.2 kW with 20 Nm. Citizen lists a 4.0 kW, 25 Nm motor as an option. Each turret holds up to 12 revolving tools; turning tools use 20 mm square shanks and the tool holes are 25 mm.
04
The Miyano BNE-51MYY is listed with an 18.5/15 kW main spindle, an 11/7.5 kW second spindle, a 195 mm maximum machining length and 8,080 kg. The BNE-51MSY has 15/11 kW and 7.5/5.5 kW spindle motors, 90 mm machining length and weighs 8,000 kg.
05
The BNE-51MSY needs a floor area of 2,725×2,159 mm, stands 2,050 mm high and weighs 8,000 kg. Check access for rigging and the bar feeder before the machine arrives.
