AKS Cutting Systems accu-kut

Specs verified 2026-10-05 · akscutting.com Updated 2026-10-05

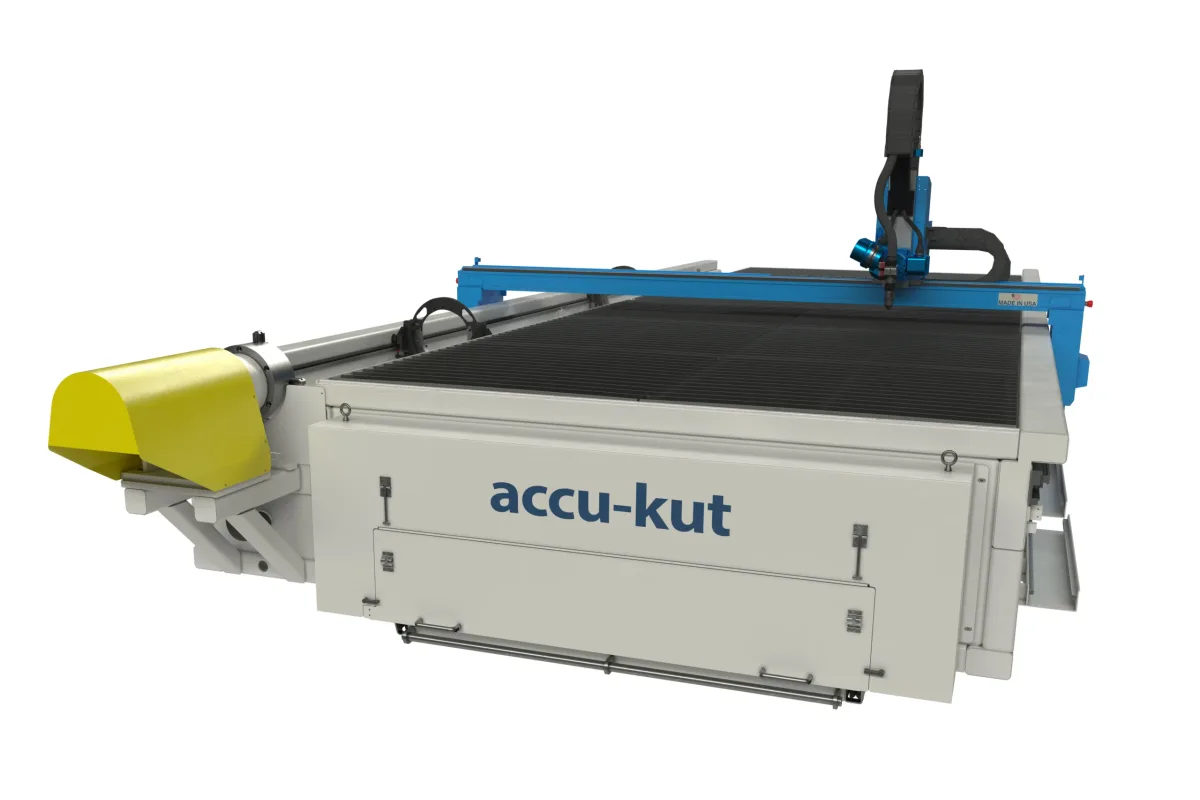

Image: akscutting.com, AKS Cutting Systems

Key Specifications

Rapid Traverse

1,200 ipm (30.5 m/min)

motion accuracy

+/- 0.003 in per 3 ft of motion (+/- 0.08 mm per 914 mm)

max cut depth

Up to 8 in (203 mm) thick material

max cut width

Up to 10 ft (3.05 m) depending on machine size

max cut length

Up to 60 ft (18.29 m) depending on machine size

available widths

6, 8 and 10 ft (1.83, 2.44 and 3.05 m)

How much does the AKS Cutting Systems accu-kut cost?

Price estimate

Uncertain

We do not have a price for the AKS Cutting Systems accu-kut that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

AKS bills the accu-kut as the largest unitized plasma system on the market. Unitized is the operative word. The table and the motion system are one fully-welded, modular frame, with no rails laid on the shop floor, and the product page lists it in widths of 6, 8 and 10 ft (1.83, 2.44 and 3.05 m) and lengths of 12, 24, 36 and 48 ft (3.66, 7.32, 10.97 and 14.63 m).

The headline numbers are a motion accuracy of +/- 0.003 in per 3 ft, which is the tightest AKS publishes for a plasma machine, a travel speed of 1,200 ipm (30.5 m/min) and material up to 8 in (203 mm) thick. A hy-definition torch is standard, as is the Hypertherm Edge Connect CNC controller with a 19 in (483 mm) color touch screen console. The machine comes with a local license of ProNest 2025.

How does it sit against the rest of the range? The tru-kut shares the controller and the travel speed but stops at 6 ft x 12 ft and a 3 in (76 mm) cut depth. The dura-kut goes far wider on floor rail, with a looser accuracy figure. The accu-kut covers the ground between: plate-shop bed lengths with small-table accuracy.

Table equipment is chosen per order. AKS lists downdraft options with a dust collector and HEPA filter, a water table upgrade with raise/lower controls for above-water or underwater cutting, heavy-duty slide-out slag pans and a self-clean model. Riser spacer blocks of 2, 3 or 4 in (51, 76 or 102 mm) adjust pierce height. Because the frame is modular, sections can be added as volume grows.

One point needs checking with AKS. The specification gives a maximum cut length of up to 60 ft (18.29 m) depending on machine size, while the size list on the same page ends at 48 ft.

Full Specifications

Parameter	Value
Motion Accuracy	+/- 0.003 in per 3 ft of motion (+/- 0.08 mm per 914 mm)
Rapid Traverse Rate	1,200 ipm (30.5 m/min)
Max Cut Depth	Up to 8 in (203 mm) thick material
Max Cut Width	Up to 10 ft (3.05 m) depending on machine size
Max Cut Length	Up to 60 ft (18.29 m) depending on machine size
Available Widths	6, 8 and 10 ft (1.83, 2.44 and 3.05 m)
Available Lengths	12, 24, 36 and 48 ft (3.66, 7.32, 10.97 and 14.63 m)
CNC Control	Hypertherm Edge Connect CNC controller
Operator Screen	19 in (483 mm) color touch screen console
Software	Local license of ProNest 2025
Frame	Modular, unitized and fully-welded frame
Torch	Hy-definition torch (standard)
Riser Spacer Blocks	2, 3 or 4 in (51, 76 or 102 mm)

Specifications sourced from akscutting.com — verified 2026-10-05

Strengths & Limitations

Strengths

Motion accuracy of +/- 0.003 in per 3 ft, the tightest figure among AKS's plasma machines
Unitized, fully-welded frame in lengths of 12, 24, 36 and 48 ft (3.66, 7.32, 10.97 and 14.63 m)
Cuts material up to 8 in (203 mm) thick at up to 10 ft (3.05 m) wide
Standard hy-definition torch and Hypertherm Edge Connect CNC controller
Includes a local license of ProNest 2025
Modular design allows modules to be added or removed as production volume changes

Limitations

Width tops out at 10 ft (3.05 m); wider plate means moving to the rail-mounted dura-kut
The specification says up to 60 ft (18.29 m) of cut length but the listed sizes end at 48 ft
The self-clean model, smoke collector filtration unit and water table are upgrades or separate models
The page does not tie the 8 in (203 mm) thickness to a specific plasma or oxy-fuel process

Best For

Plate shops that want long beds without floor-mounted rail Precision plasma parts needing +/- 0.003 in per 3 ft motion accuracy Nesting several 8 ft or 10 ft wide plates on one table Underwater plasma cutting with the water table and raise/lower controls

Frequently Asked Questions

01 What sizes is the AKS accu-kut available in?

AKS lists available widths of 6, 8 and 10 ft (1.83, 2.44 and 3.05 m) and lengths of 12, 24, 36 and 48 ft (3.66, 7.32, 10.97 and 14.63 m). The specification block separately states a maximum cut length of up to 60 ft (18.29 m) depending on machine size, so longer builds should be confirmed with AKS.

02 How accurate is the accu-kut?

The published figure is +/- 0.003 in per 3 ft accuracy of motion, at a travel speed of 1,200 ipm (30.5 m/min). AKS attributes it to the unitized, fully-welded frame design. For comparison, the dura-kut gantry is listed at +/- 0.006 in per 3 ft.

03 What software comes with the accu-kut?

The specification lists a local license of ProNest 2025, and the control is the Hypertherm Edge Connect CNC controller with a 19 in (483 mm) color touch screen console. AKS also lists the SureCut suite, which applies optimized cutting parameters automatically.

04 Can the accu-kut cut underwater?

With the water table, yes. AKS lists raise/lower controls that allow above-water or underwater cutting and notes that underwater cutting lowers the volume of the operation. The downdraft table can be exchanged for a water table as an upgrade.

05 What are the riser spacer blocks for?

They set pierce height. AKS offers 2, 3 or 4 in (51, 76 or 102 mm) riser spacer blocks and describes them as a way to get optimal pierce height adjustment, protect consumables and keep cutting consistent. They matter most on thick plate, where piercing throws the most molten metal back at the torch.
