You Ji VTS1200ATC

Q: How much does the You Ji VTS1200ATC cost?

The price estimate for the You Ji VTS1200ATC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/you-ji-vts1200atc#price; the request is passed to You Ji or an authorised dealer.

Specs verified 2026-10-04 · image.youji.com Updated 2026-10-04

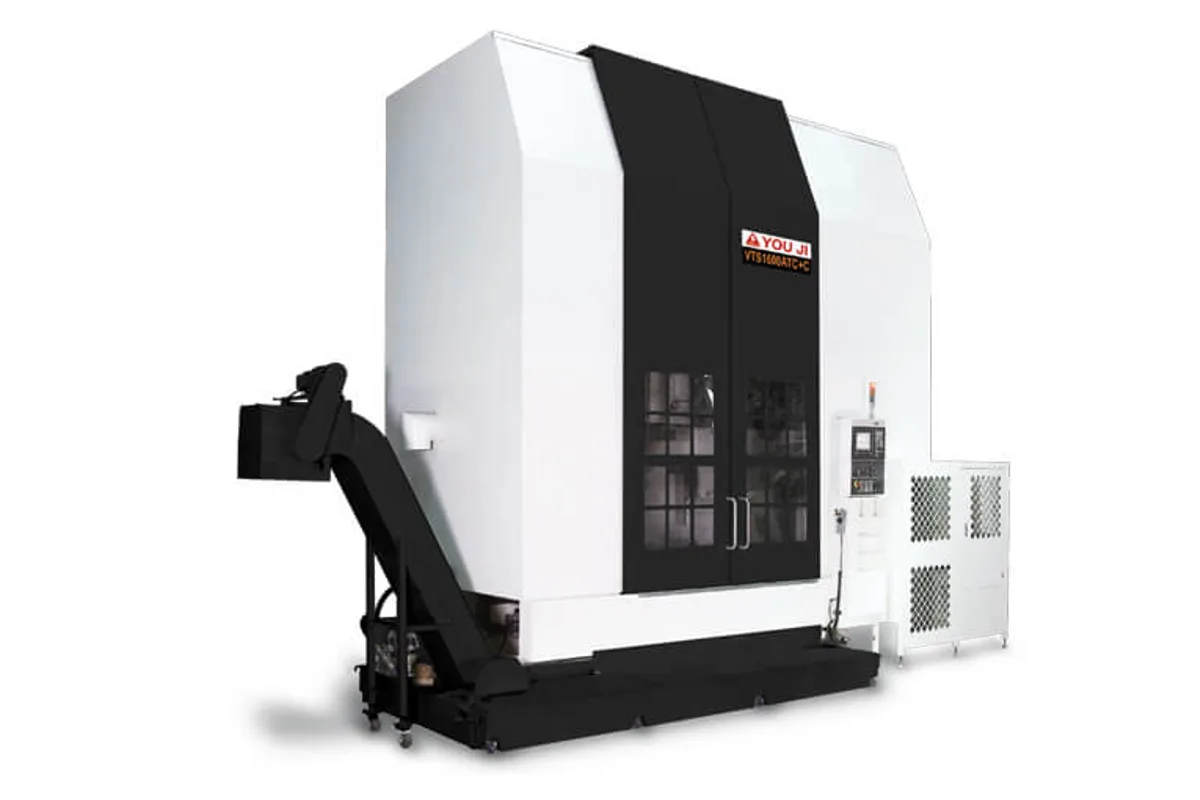

You Ji VTS1200ATC CNC vertical turning lathe (VTS series)

Image: image.youji.com, You Ji

Key Specifications

Max Spindle

1-350 rpm

Spindle Power

37/45 kW (49.6/60.3 hp)

table diameter

Ø1,250 mm (49.2 in)

max swing diameter

Ø1,600 mm (63.0 in)

max turning diameter

Ø1,400 mm (55.1 in)

max turning height

800 mm (31.5 in)

How much does the You Ji VTS1200ATC cost?

Price estimate

Uncertain

We do not have a price for the You Ji VTS1200ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Ø1,400 mm (55.1 in) of turning diameter on a Ø1,250 mm (49.2 in) table: the You Ji VTS1200ATC turns slightly wider than You Ji's other machines of this table size. It is the second model of the VTS family of vertical turning lathes, built with a fixed type cross-rail and an automatic tool changer.

Compare the three 1,250 mm tables in the catalogue. The YV1200 and the VTL1200ATC both turn Ø1,350 mm (53.1 in) and accept parts 1,200 mm (47.2 in) high. The VTS1200ATC gives up height, 800 mm (31.5 in), in return for the fixed rail and a little more diameter. All three share the 37/45 kW (49.6/60.3 hp) motor, the 1-350 rpm range and the 5,000 kg (11,023 lb) loading weight.

So the choice comes down to the shape of the work. Flat parts, such as flanges, ring gears, clutch housings and turbine discs, never use the height of a travelling rail, and on those a fixed rail keeps the ram overhang short.

Tooling is Capto C6. The model key adds ATC+C for C-axis work and lists an automatic pallet changer for this size. The machine occupies 7,600 x 5,330 mm (299.2 x 209.8 in) and is 5,550 mm (218.5 in) high. Swing is Ø1,600 mm (63.0 in).

Full Specifications

Parameter	Value
Table Diameter	Ø1,250 mm (49.2 in)
Max Swing Diameter	Ø1,600 mm (63.0 in)
Max Turning Diameter	Ø1,400 mm (55.1 in)
Max Turning Height	800 mm (31.5 in)
Max Table Load	5,000 kg (11,023 lb)
Spindle Motor Power	37/45 kW (49.6/60.3 hp)
Tool Shank	Capto C6
Max Spindle Speed	1-350 rpm
Floor Space	7,600 x 5,330 mm (299.2 x 209.8 in)
Machine Height	5,550 mm (218.5 in)

Specifications sourced from image.youji.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø1,400 mm (55.1 in) turning diameter, more than the Ø1,350 mm (53.1 in) of the VTL1200ATC
37/45 kW (49.6/60.3 hp) spindle motor with 1-350 rpm
Capto C6 tooling with automatic tool changer
5,000 kg (11,023 lb) loading weight; pallet changer build listed

Limitations

800 mm (31.5 in) turning height against 1,200 mm (47.2 in) on the VTL1200ATC
Longer footprint than the VTL1200ATC: 7,600 x 5,330 mm (299.2 x 209.8 in)
Double ram (2R) is not listed below the VTS1600ATC

Best For

Flanges, ring gears and turbine discs up to Ø1,400 mm (55.1 in) Flat parts that do not need a travelling cross-rail C-axis drilling and milling on the ATC+C build

Frequently Asked Questions

01 VTS1200ATC or VTL1200ATC?

The VTL1200ATC takes parts 1,200 mm (47.2 in) high and uses a BT-50 shank. The VTS1200ATC has a fixed type cross-rail, 800 mm (31.5 in) of height, Ø1,400 mm (55.1 in) of turning diameter and a Capto C6 shank. Motor, speed range and loading weight are the same.

02 What are the VTS1200ATC table and swing sizes?

The table is Ø1,250 mm (49.2 in), the maximum swing Ø1,600 mm (63.0 in) and the maximum turning diameter Ø1,400 mm (55.1 in). Loading weight is 5,000 kg (11,023 lb).

03 Which tool holders does the VTS1200ATC take?

The tool shank is listed as Capto C6, loaded by the automatic tool changer. The catalogue does not state how many tools the magazine holds for this series.

04 How much room is needed?

A floor dimension of 7,600 x 5,330 mm (299.2 x 209.8 in) and a height of 5,550 mm (218.5 in). A pallet changer, if ordered, adds to the tabled floor dimension.
