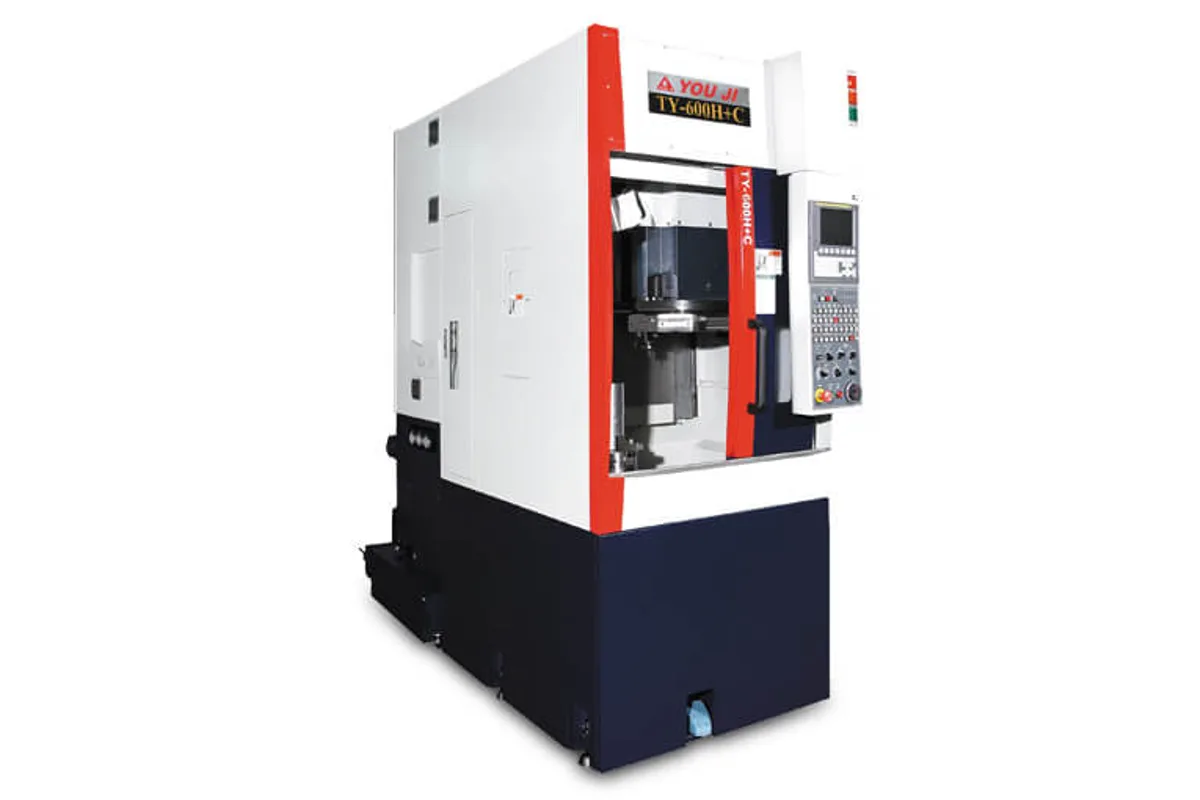

You Ji TY600H
Image: image.youji.com, You Ji
Key Specifications
Max Spindle
Spindle Power
chuck size
max swing diameter
max turning diameter
max turning height
How much does the You Ji TY600H cost?
Price estimate
We do not have a price for the You Ji TY600H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 12 in (305 mm) chuck, Ø450 mm (17.7 in) of turning diameter and an equal 450 mm (17.7 in) of turning height: the You Ji TY600H is the larger of the two TY vertical turning lathes. The series is laid out deep and narrow, and this model measures 1,300 x 3,800 mm (51.2 x 149.6 in) on the floor.
Its spindle motor is listed as 18.5/30 kW (24.8/40.2 hp), a higher peak rating than any YV model with an inch-size chuck, and the speed range is 50-3,500 rpm. That pairing points at steel and cast iron parts cut hard at moderate diameters. Loading weight is 500 kg (1,102 lb) and swing Ø600 mm (23.6 in).
How does it sit against its sibling? The TY400H is 1,030 mm (40.6 in) wide and stops at Ø250 mm (9.8 in). The TY600H takes far larger diameters and stands 3,000 mm (118.1 in) tall. As on its sibling, H means a horizontal turret and H+C a horizontal BMT power turret.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 12 in (305 mm) |
| Max Swing Diameter | Ø600 mm (23.6 in) |
| Max Turning Diameter | Ø450 mm (17.7 in) |
| Max Turning Height | 450 mm (17.7 in) |
| Max Table Load | 500 kg (1,102 lb) |
| Spindle Motor Power | 18.5/30 kW (24.8/40.2 hp) |
| Max Spindle Speed | 50-3,500 rpm |
| Floor Space | 1,300 x 3,800 mm (51.2 x 149.6 in) |
| Machine Height | 3,000 mm (118.1 in) |
Specifications sourced from image.youji.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 18.5/30 kW (24.8/40.2 hp) spindle motor with a 50-3,500 rpm range
- Square working envelope: Ø450 mm (17.7 in) diameter by 450 mm (17.7 in) height
- 1,300 mm (51.2 in) frontage on a 1,300 x 3,800 mm (51.2 x 149.6 in) floor dimension
- Available as H+C with a horizontal BMT power turret
Limitations
- 500 kg (1,102 lb) loading weight is low next to the YV500's 1,200 kg (2,646 lb)
- Needs 3,800 mm (149.6 in) of depth behind the aisle
- No tool changer or pallet changer build appears in the TY model key
Best For
Frequently Asked Questions
01
Maximum turning diameter Ø450 mm (17.7 in), maximum turning height 450 mm (17.7 in), maximum swing Ø600 mm (23.6 in) and maximum loading weight 500 kg (1,102 lb), with a 12 in (305 mm) chuck.
02
The catalogue lists the spindle motor as 18.5/30 kW (24.8/40.2 hp) and the speed range as 50-3,500 rpm. The TY400H has an 18.5/22 kW (24.8/29.5 hp) motor and reaches 4,000 rpm, so the larger model gives up some speed for a higher peak rating.
03
In the H+C build, yes. You Ji defines H+C as a horizontal BMT power turret. The plain H build has a horizontal turret for static tools. Station count and live tool speed are not in the catalogue table and should be confirmed with the maker.
