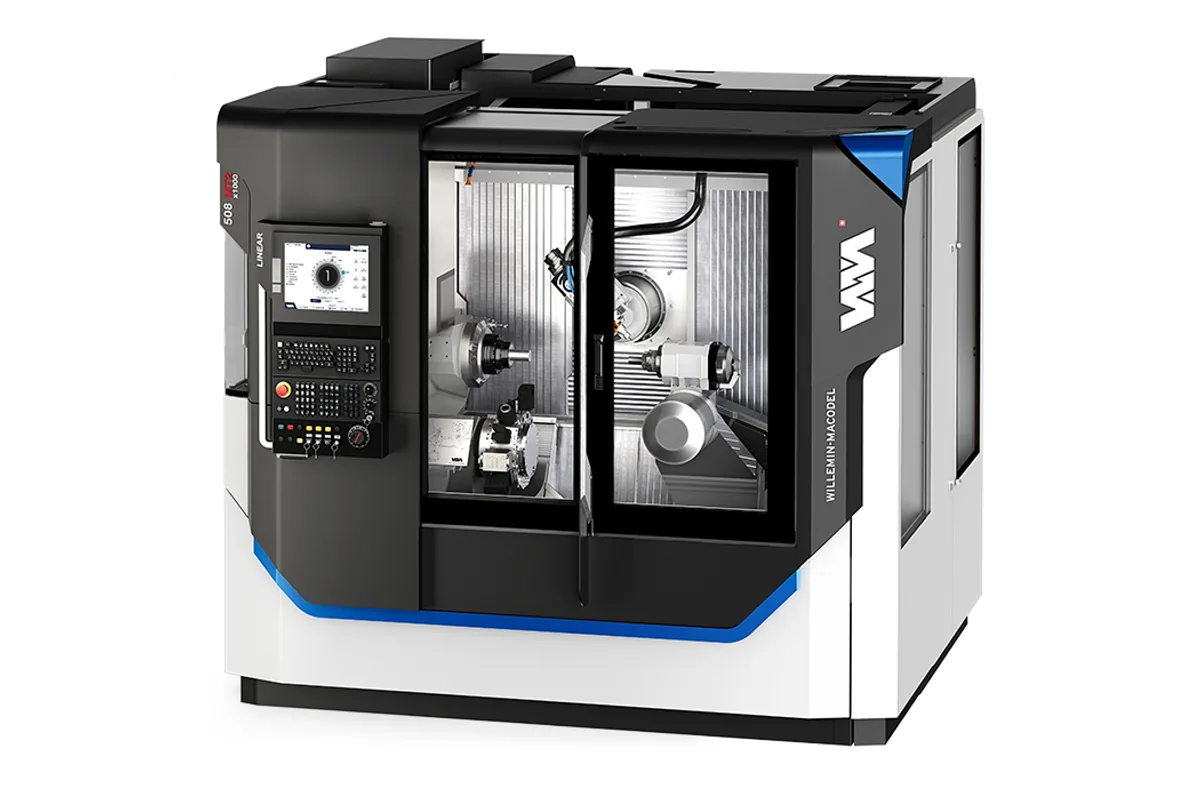

Willemin-Macodel 508MT2 X1000
Image: willemin-macodel.com, Willemin-Macodel
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Willemin-Macodel 508MT2 X1000 cost?
Price estimate
We do not have a price for the Willemin-Macodel 508MT2 X1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
One metre of X travel sets the Willemin-Macodel 508MT2 X1000 apart from every other machine in the range. It is the long-bed version of the 508MT2: X is 1,000 mm, Y 200 mm and Z 385 mm on linear motors at 60 m/min, and the cabinet grows to 2,505 mm wide on 5.4 m² of floor.
The bar side is heavier too. Standard bar passage is Ø51 mm through an A6 cone, with 65 mm in brackets, where the 508MT2 starts at Ø42 mm. A torque motor drives the A axis with 72 nm in S1 and 96 nm in S6, at 6,000 min-1 for turning and 200 min-1 for milling.
The long X axis leaves room for more than one working station. Under other options the page lists a turning turret with a Tri-fix interface, (12 positions), a milling speed of (12,000 min-1) and an indexing time of (0.6 sec). Willemin-Macodel says the machine can cut simultaneously with the milling spindle and this turret. A recovery turret with a U-axis travel of (560 mm) and a return spindle turning at (8,000 min-1) on a Cone A4 interface handle the second side, alongside a vice or tailstock.
All of that is optional equipment, printed in brackets, so two machines with this name can be very different. The fixed part is the B-axis milling head, -45° to +115°, with the HSK-E40 spindle and a 48-tool magazine (72 in the bracketed size, 224 positions as an option). The control is a FANUC 31i-B5 PLUS iHMI Pro.
Full Specifications
| Parameter | Value |
|---|---|
| Linear Axes Drive | Linear motor |
| X-Axis Travel | 1,000 mm (39.4 in) |
| Y-Axis Travel | 200 mm (7.9 in) |
| Z-Axis Travel | 385 mm (15.2 in) |
| Linear Axes Max Feed Speed | 60 m/min |
| Linear Axes Resolution | 0.0125 µm |
| A Axis Drive | Torque motor |
| Bar Capacity | Ø51 mm (65 mm) |
| A Axis Interface | A6 cone |
| A Axis Torque S1 S6 | 72 nm/96 nm |
| A Axis Speed Milling Mode | 200 min-1 |
| A Axis Speed Turning Mode | 6,000 min-1 |
| B Axis Drive | Torque motor |
| B Axis Angular Movement | -45° to +115° |
| B Axis Resolution | 0.0001° |
| Spindle Taper | HSK-E40 (HSK-A40/CAPTO C4) |
| Max Spindle Speed | 30,000 min-1 (42,000 min-1) |
| Spindle Lubrication | Air-oil (Grease) |
| Spindle Resolution | ±0.02° |
| Dts Dynamic Thermal Stabilization | Integrated |
| Tool Capacity | 48 (72) |
| Tool to Tool Changeover | 0.8 sec |
| Chip to Chip Change | < 3 sec |
| Tool Management | Integrated |
| Tool Breakage Detection | Masked time |
| CNC Control | FANUC 31i-B5 PLUS iHMI Pro |
| Option Recovery Turret Positions with Lathe | (2 useful/1 free) |
| Option Recovery Turret Positions Without Lathe | (3 useful/1 free) |
| Option Recovery Turret U Axis Travel | (560 mm) |
| Option Return Spindle Interface | (Cone A4) |
| Option Return Spindle Speed Milling Mode | (300 min-1) |
| Option Return Spindle Speed Turning Mode | (8,000 min-1) |
| Option Turning Turret Interface | (Tri-fix) |
| Option Turning Turret Capacity | (12 positions) |
| Option Turning Turret Milling Speed | (12,000 min-1) |
| Option Turning Turret Indexing Time | (0.6 sec) |
| Dimensions W X D X H | 2,505 x 2,165 x 2,300 mm (98.6 x 85.2 x 90.6 in) |
| Floor Area | 5.4 m² |
Specifications sourced from willemin-macodel.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,000 mm of X travel on linear motors at 60 m/min
- Ø51 mm bar passage as standard, 65 mm in brackets, through an A6 cone
- Optional 12-position turning turret that can cut at the same time as the milling spindle
- A axis on a torque motor: 72 nm S1, 96 nm S6, 6,000 min-1 in turning mode
- Optional return spindle at (8,000 min-1) and recovery turret with (560 mm) of U-axis travel
Limitations
- Floor area of 5.4 m², against 4 m² for the 508MT2
- Turning turret, recovery turret and return spindle are all options
- Y travel is 200 mm despite the long X
- The table gives no B-axis feed speed for this model
Best For
Frequently Asked Questions
01
X travel and bar size. The 508MT2 X1000 has 1,000 mm of X, a standard Ø51 mm bar passage on an A6 cone and a floor area of 5.4 m². The 508MT2 has 400 mm of X, Ø42 mm bar on an A4 cone as standard and 4 m². Y and Z are 200 mm and 385 mm on both.
02
As an option. The page lists a turning turret with a Tri-fix interface, a capacity of (12 positions), a milling speed of (12,000 min-1) and an indexing time of (0.6 sec). The maker describes 12 motorized positions and simultaneous machining with the motorized milling spindle.
03
A recovery turret with a U-axis travel of (560 mm), a return spindle on a Cone A4 interface running at (300 min-1) in milling mode and (8,000 min-1) in turning mode, and a pneumatic or hydraulic clamping vice, counter-spindle or tailstock. All are listed under other options.
04
The maximum bar passage is Ø51 mm, with 65 mm in brackets, on an A6 cone. The A axis is driven by a torque motor with 72 nm of S1 torque and 96 nm in S6, and turns at 6,000 min-1 in turning mode.
