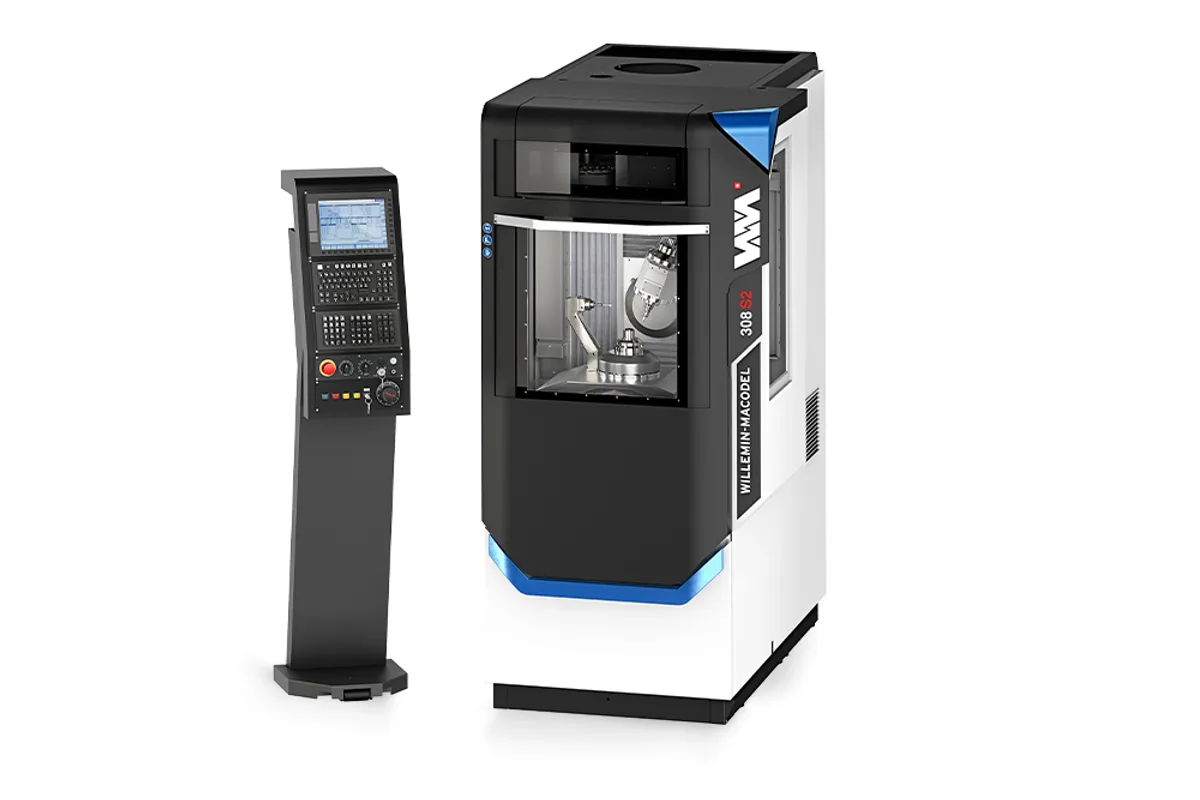

Willemin-Macodel 308S2
Image: willemin-macodel.com, Willemin-Macodel
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Willemin-Macodel 308S2 cost?
Price estimate
We do not have a price for the Willemin-Macodel 308S2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Five axes in a cabinet 910 mm wide: that is the Willemin-Macodel 308S2. It takes the 270 mm, 120 mm and 220 mm travels of the 301S2 and puts a swivelling spindle and a C-axis divider where that machine has a slotted table. The maker aims it at small, complex prismatic parts, from billets or on pallets.
The B axis is the spindle pivot. A torque motor moves it from -35° to +115° at up to 200 min-1 with 0.0001° resolution, which Willemin-Macodel sums up as angular movement over 150°. Below it, the C-axis divider is also driven by a torque motor, with 20 nm of S1 torque and 38 nm rated. Its plate is Ø120 mm and it carries 12 kg.
Turning is possible but it is the bracketed figure: the divider runs at 200 min-1 in milling mode and (4,000 min-1) in turning mode. Check that the turning mode is part of the quoted machine before planning turned diameters on it.
The spindle is HSK-A32 at 40,000 min-1, or 60,000 min-1 in brackets, lubricated by air-oil. A 28-position pick-up magazine changes tools in 6 sec, 10 sec chip to chip. With only 20 m/min on the linear axes this is a machine for precise work on small parts, and the 408S2 is the step up when 40 m/min and a Ø180 mm plate are needed.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 270 mm (10.6 in) |
| Y-Axis Travel | 120 mm (4.7 in) |
| Z-Axis Travel | 220 mm (8.7 in) |
| Linear Axes Max Feed Speed | 20 m/min |
| Linear Axes Resolution | 0.1 µm |
| B Axis Drive | Torque motor |
| B Axis Angular Movement | -35° to +115° |
| B Axis Max Feed Speed | 200 min-1 |
| B Axis Resolution | 0.0001° |
| C Axis Drive | Torque motor |
| C Axis Torque S1 | 20 nm |
| C Axis Rated Torque | 38 nm |
| C Axis Speed Milling Mode | 200 min-1 |
| C Axis Speed Turning Mode | (4,000 min-1) |
| C Axis Plate Diameter | Ø120 mm (4.7 in) |
| C Axis Load Capacity | 12 kg (26 lb) |
| Spindle Taper | HSK-A32 |
| Max Spindle Speed | 40,000 min-1 (60,000 min-1) |
| Spindle Lubrication | Air-oil |
| Spindle Resolution | ±0.02° |
| Dts Dynamic Thermal Stabilization | Integrated |
| Tool Magazine Type | Pick-up tool magazine |
| Tool Capacity | 28 |
| Tool to Tool Changeover | 6 sec |
| Chip to Chip Change | 10 sec |
| Tool Management | Integrated |
| Tool Breakage Detection | Masked time |
| CNC Control | FANUC 0i-MF PLUS |
| Dimensions W X D X H | 910 x 1,715 x 1,980 mm (35.8 x 67.5 x 78.0 in) |
| Floor Area | 1.6 m² |
Specifications sourced from willemin-macodel.com — verified 2026-10-05
Strengths & Limitations
Strengths
- B-axis swivel from -35° to +115° on a torque motor with 0.0001° resolution
- C-axis divider with a Ø120 mm plate, 20 nm of S1 torque and 38 nm rated torque
- 5-axis machining on a listed floor area of 1.6 m²
- HSK-A32 spindle at 40,000 min-1, with 60,000 min-1 as the bracketed alternative
- Turning mode of the C axis at (4,000 min-1), listed in brackets
Limitations
- The divider carries 12 kg, fixture included
- Linear axes are limited to 20 m/min and 0.1 µm resolution
- 28 tools in a pick-up magazine with a 10 sec chip-to-chip time
- The 4,000 min-1 turning speed appears only in brackets
Best For
Frequently Asked Questions
01
A B axis that pivots the spindle from -35° to +115° at up to 200 min-1, and a C-axis divider under the part. Both are driven by torque motors and the B axis resolves 0.0001°. The divider has a Ø120 mm plate and a load capacity of 12 kg.
02
The C-axis divider is listed at 200 min-1 in milling mode and (4,000 min-1) in turning mode. The turning figure is printed in brackets, the way the page marks alternatives to the base equipment, so confirm it is included before relying on it.
03
Willemin-Macodel states machining of parts up to a diameter of 120 mm, which matches the Ø120 mm plate of the divider. Load capacity is 12 kg. Linear travels are 270 mm, 120 mm and 220 mm in X, Y and Z.
04
The 408S2 is the larger 5-axis machine: 250 mm, 200 mm and 310 mm of travel at 40 m/min, a Ø180 mm plate and an HSK-E40 spindle with a 48-tool magazine. The 308S2 has 270 mm, 120 mm and 220 mm at 20 m/min, a Ø120 mm plate, HSK-A32 and 28 tools.
