DMG Mori Wasino A 150SY|15

$180,000 - $280,000 Updated 2026-03-19

Key Specifications

Max Workpiece ⌀

240 mm (9.4 in)

max workpiece length

245 mm (9.6 in)

max bar diameter

67 mm (2.6 in)

x axis travel

180 mm (7.1 in)

y axis travel

100 mm (3.9 in)

z axis travel

350 mm (13.8 in)

Overview

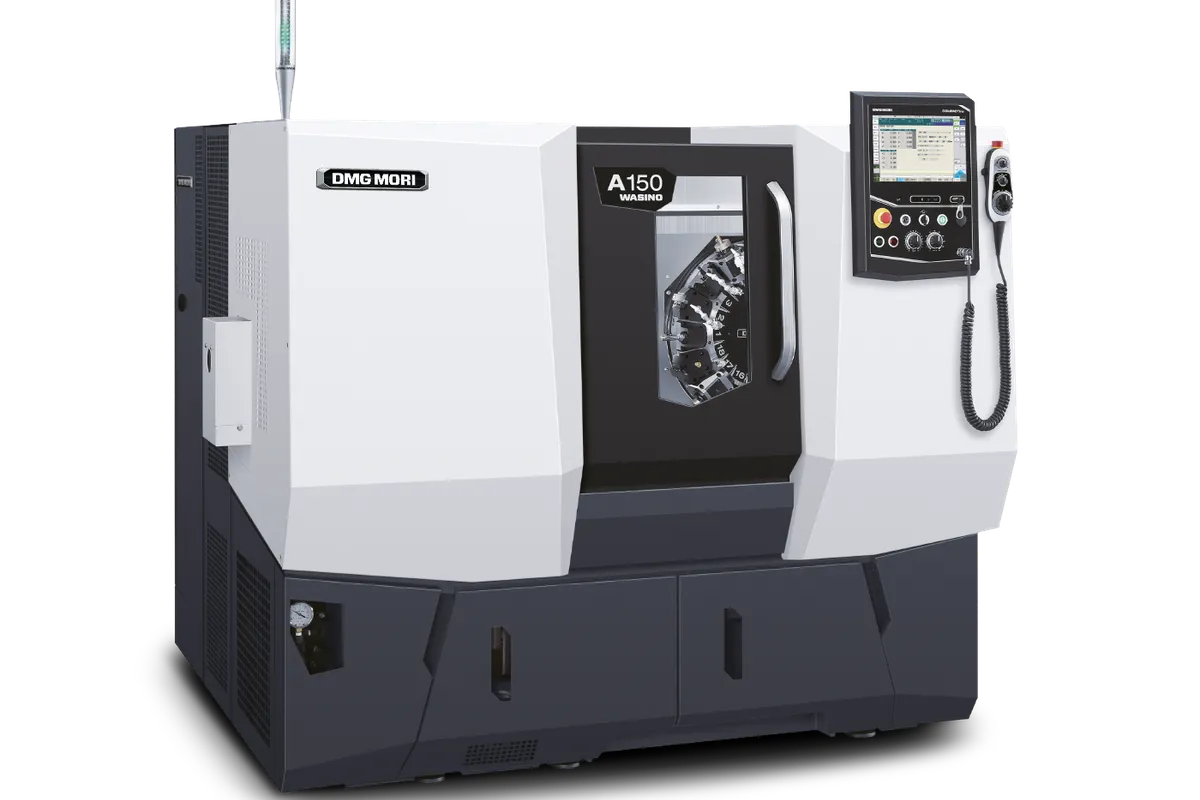

The DMG Mori Wasino A 150SY|15 is an ultra-high-precision CNC turning center built on Wasino's legacy of sub-micron accuracy in production turning. With a maximum workpiece diameter of 240 mm (9.4 in), maximum workpiece length of 245 mm (9.6 in), and bar capacity of 67 mm (2.6 in), this machine targets precision component production where thermal stability and geometric accuracy are non-negotiable.

The SY designation indicates both sub-spindle and Y-axis capability, enabling complete part machining in a single setup. The Y-axis provides 100 mm (3.9 in) of off-center travel for milling, drilling, and tapping operations that would otherwise require a secondary machining center setup. X-axis travel is 180 mm (7.1 in) and Z-axis travel is 350 mm (13.8 in).

Wasino's horizontal, single-piece scraped cast iron slideways deliver the damping and geometric accuracy that ground linear guides cannot match. The thermal displacement control system maintains dimensional stability with cold-start thermal displacement of just 0.1 micrometers on diameter and circularity of 0.02 micrometers. These numbers put the A 150SY|15 in a class above most production turning centers.

The machine accommodates up to 18 tools, which DMG Mori claims is the largest number in its class. The integrated Easy Tool Monitor 2.0 software provides real-time tool protection against crashes and excessive wear. The Fanuc control delivers familiar programming for operators transitioning from other CNC lathes.

The 15 in the model designation refers to the 15 kW spindle motor class, positioning this as a mid-power variant suitable for both finishing operations in aluminum and moderate roughing in steel and stainless. Shops running precision automotive, medical, and hydraulic components where sub-micron accuracy matters will find the Wasino A 150SY|15 a compelling alternative to standard production turning centers. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
Max Workpiece Diameter	240 mm (9.4 in)
Max Workpiece Length	245 mm (9.6 in)
Max Bar Diameter	67 mm (2.6 in)
X Axis Travel	180 mm (7.1 in)
Y Axis Travel	100 mm (3.9 in)
Z Axis Travel	350 mm (13.8 in)
Tool Stations	18
Spindle Class	15 kW
Thermal Displacement Cold Start	0.1 µm (diameter)
Circularity	0.02 µm
Sub Spindle	Yes
Y Axis	Yes
Slideway Type	Horizontal scraped cast iron
CNC Control	Fanuc
Tool Monitoring	Easy Tool Monitor 2.0
240 Mm	9.4 in.
245 Mm	9.6 in.
67 Mm	2.6 in.
180 Mm	7.1 in.
100 Mm	3.9 in.
350 Mm	13.8 in.
Customer Benefits	Functionality - Selection of the cycle by pressing the associated key on the operating panel

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

Sub-micron thermal displacement control (0.1 µm diameter) delivers accuracy that most production turning centers cannot match
Sub-spindle plus Y-axis (SY) enables complete part machining in one setup, eliminating secondary operations
18 tool stations provide the largest tool capacity in its class for complex multi-feature parts
Scraped cast iron slideways deliver superior damping and geometric accuracy compared to linear guide alternatives
67 mm bar capacity handles a wide range of production bar stock diameters through automatic bar feeders
Easy Tool Monitor 2.0 protects against crashes and excessive tool wear during unattended production runs

Limitations

Scraped cast iron slideways limit rapid traverse speeds compared to linear guide machines, reducing non-cutting time
Premium pricing for ultra-high precision may not be justified for general-tolerance production work
Wasino brand recognition is lower than mainline DMG Mori products, which can affect resale value
Detailed spindle speed and power specifications require contacting DMG Mori directly, making pre-purchase comparison difficult

Best For

Precision automotive component manufacturers machining fuel system parts, valve bodies, and sensor housings to sub-micron tolerances Medical device manufacturers producing implant components, surgical instrument parts, and precision fittings Hydraulic valve and fitting producers where geometric accuracy directly affects product performance and sealing Optical and photonics component manufacturers needing ultra-precise turned surfaces Any production shop where thermal stability and sub-micron accuracy are critical requirements

Frequently Asked Questions

01 What does the SY designation mean on the Wasino A 150SY|15?

SY indicates Sub-spindle and Y-axis capability. The sub-spindle picks up the part after main spindle operations for backworking, and the Y-axis enables off-center milling, drilling, and tapping. Together they allow complete part machining in a single setup.

02 How does Wasino achieve sub-micron accuracy?

The combination of scraped cast iron slideways, thermal displacement control, and rigid single-piece bed construction. The slideways provide superior damping, the thermal control compensates for heat-induced dimensional changes, and the monolithic bed eliminates joint-related inaccuracies.

03 What is the difference between the A 150SY|15 and A 150Y|18?

The A 150SY|15 has a sub-spindle (S) with a 15 kW spindle motor class. The A 150Y|18 drops the sub-spindle but steps up to an 18 kW spindle motor class for more cutting power. Choose SY when you need done-in-one capability; choose Y-only when you need more spindle power and do not require backworking.

04 Is the Wasino A 150SY|15 suitable for lights-out production?

Yes. The 67 mm bar capacity accommodates standard bar feeders, the Easy Tool Monitor 2.0 protects against tool breakage, and the sub-spindle enables complete parts without operator intervention. The thermal displacement control maintains accuracy across extended unattended runs.
