DMG Mori MULTISPRINT 36
Key Specifications
Max Spindle
Spindle Power
max bar capacity
number of spindles
spindle pitch circle
x axis travel
Overview

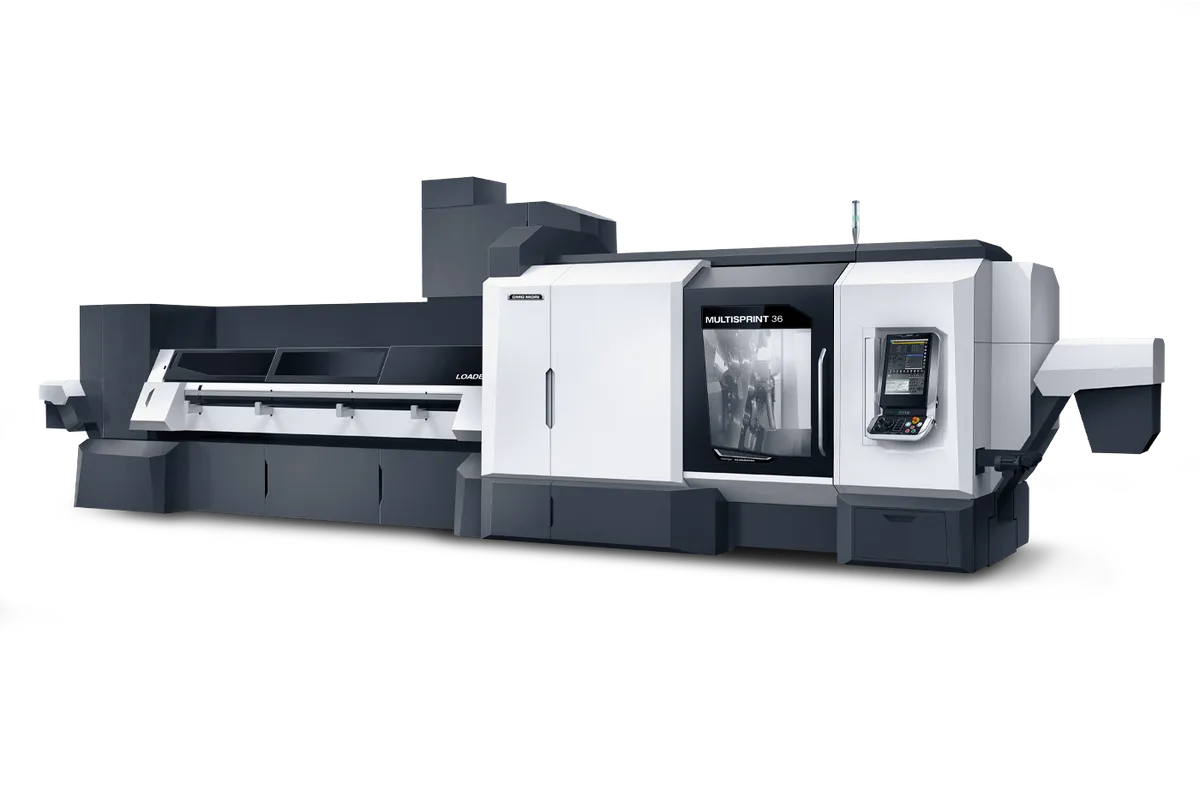

The DMG Mori MULTISPRINT 36 is a CNC multi-spindle automatic lathe that combines the speed of a traditional multi-spindle with the precision and flexibility of modern CNC control. With six spindles machining simultaneously on a 380 mm (14.96 inch) pitch circle diameter, the MULTISPRINT 36 handles bar stock up to 36 mm (1.41 inches) in diameter and delivers throughput rates that single-spindle machines simply cannot match.
All six main spindles run at 7,500 RPM with 14.9 kW (20 HP) of power each. X-axis travel is 50 mm and Z-axis runs 100 mm per station, extendable to 180 mm with the SWISSTYPEkit option. That SWISSTYPEkit is a key differentiator: it adds guide bush functionality to the multi-spindle platform, giving you Swiss-type machining precision on small-diameter long parts at multi-spindle production rates.
The machine runs on Fanuc 30i-B control, which is a familiar platform for most CNC operators. Each of the six stations can be independently programmed and tooled, giving you flexibility to machine different features at each position. The drum indexes between positions to move parts through the six machining stations in sequence.
Y-axis travel is plus/minus 50 mm, enabling off-center milling, drilling, and cross-work. Driven tool spindles run at 8,000 RPM for secondary milling operations. The machine includes options for high-pressure coolant, chip conveyor, oil mist collector, and robotic automation for part handling.
The MULTISPRINT 36 competes with the Index MS32C, Tornos MultiSwiss 6x32, and Schotte SCX in the CNC multi-spindle market. Its SWISSTYPEkit option is unique in combining multi-spindle productivity with Swiss-type precision. Shops running 50,000+ piece annual volumes of small turned parts should seriously evaluate the MULTISPRINT 36 against running multiple single-spindle machines. Specs sourced from DMG Mori published data and dealer listings.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 36 mm (1.41 in) |
| Number Of Spindles | 6 |
| Spindle Pitch Circle | 380 mm (14.96 in) |
| Max Spindle Speed | 7,500 RPM |
| Spindle Motor Power | 14.9 kW (20 HP) per spindle |
| X Axis Travel | 50 mm (1.96 in) |
| Z Axis Travel | 100 mm (3.93 in), 180 mm (7.08 in) with SWISSTYPEkit |
| Y Axis Travel | +/- 50 mm (1.96 in) |
| Driven Tool Speed | 8,000 RPM |
| Bar Feed Length | 100 mm (3.93 in), 180 mm (7.08 in) with SWISSTYPEkit |
| CNC Control | Fanuc 30i-B |
| Number Of Axes | Up to 31 CNC axes |
| Swisstype Option | Available (guide bush for Swiss-type precision) |
| 36 Mm | 1.4 in. |
| 170 Mm | 6.7 in. |
| 50 Mm | 2 in. |
| 100 Mm | 3.9 in. |
Specifications sourced from us.dmgmori.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Six spindles machining simultaneously deliver 4-6 times the throughput of a single-spindle lathe on high-volume parts
- SWISSTYPEkit option adds guide bush functionality for Swiss-type precision at multi-spindle production rates, a combination no competitor matches exactly
- 7,500 RPM per spindle with 20 HP each provides strong cutting performance across all six stations simultaneously
- Fanuc 30i-B control is familiar to most operators and has excellent post processor support from all major CAM vendors
- Y-axis at each station enables off-center milling, drilling, and cross-work without losing multi-spindle productivity
- Independent station programming gives flexibility to optimize tooling and cutting parameters for each machining position
Limitations
- Starting around $600K and exceeding $900K fully loaded, the investment requires very high production volumes to justify against multiple single-spindle machines
- Setup and changeover complexity on a 6-spindle machine is significantly higher than a single-spindle lathe; not suitable for short-run or job shop work
- 36 mm maximum bar capacity limits the machine to small parts only; larger workpieces need a different platform
- Specialized tooling and fixturing for multi-spindle work adds to the total cost of ownership
- Requires operators with multi-spindle experience, which is harder to find than standard CNC lathe operators
Best For
Frequently Asked Questions
01
New pricing runs $600,000-$950,000 depending on configuration. The SWISSTYPEkit, high-pressure coolant, robotic automation, and extended Z-axis travel all add to the base price. Factor in tooling setup costs of $20,000-$50,000 per job for the initial production setup.
02
The SWISSTYPEkit adds a guide bush to the MULTISPRINT, enabling Swiss-type machining precision on small-diameter long parts. It extends Z-axis travel from 100 mm to 180 mm and provides the sliding headstock support needed for long, slender parts that would otherwise deflect. This combination of multi-spindle productivity and Swiss-type precision is unique to the MULTISPRINT.
03
The MULTISPRINT 36 uses one operator and one machine footprint versus six operators and six machine footprints. Per-part cost drops dramatically on high-volume work. However, single-spindle machines offer more flexibility for mixed production and shorter runs. The breakeven typically falls around 50,000-100,000 parts annually depending on part complexity.
04
The machine handles all common turning materials: free-machining steels, stainless steels, aluminum, brass, copper, titanium, and engineering plastics. The 20 HP per spindle provides enough power for aggressive cutting in stainless and titanium at all six stations simultaneously.
05
A full changeover to a new part typically takes 2-4 hours depending on complexity. This includes changing tooling at all six stations, adjusting collets, loading the new program, and running first articles. Quick-change tooling systems can reduce this, but multi-spindle changeovers are inherently more complex than single-spindle machines.
