STV CNC SparX 510

Q: How much does the STV CNC SparX 510 cost?

The price estimate for the STV CNC SparX 510 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/stv-cnc-sparx-510#price; the request is passed to STV CNC or an authorised dealer.

Specs verified 2026-10-05 · stvcnc.com Updated 2026-10-05

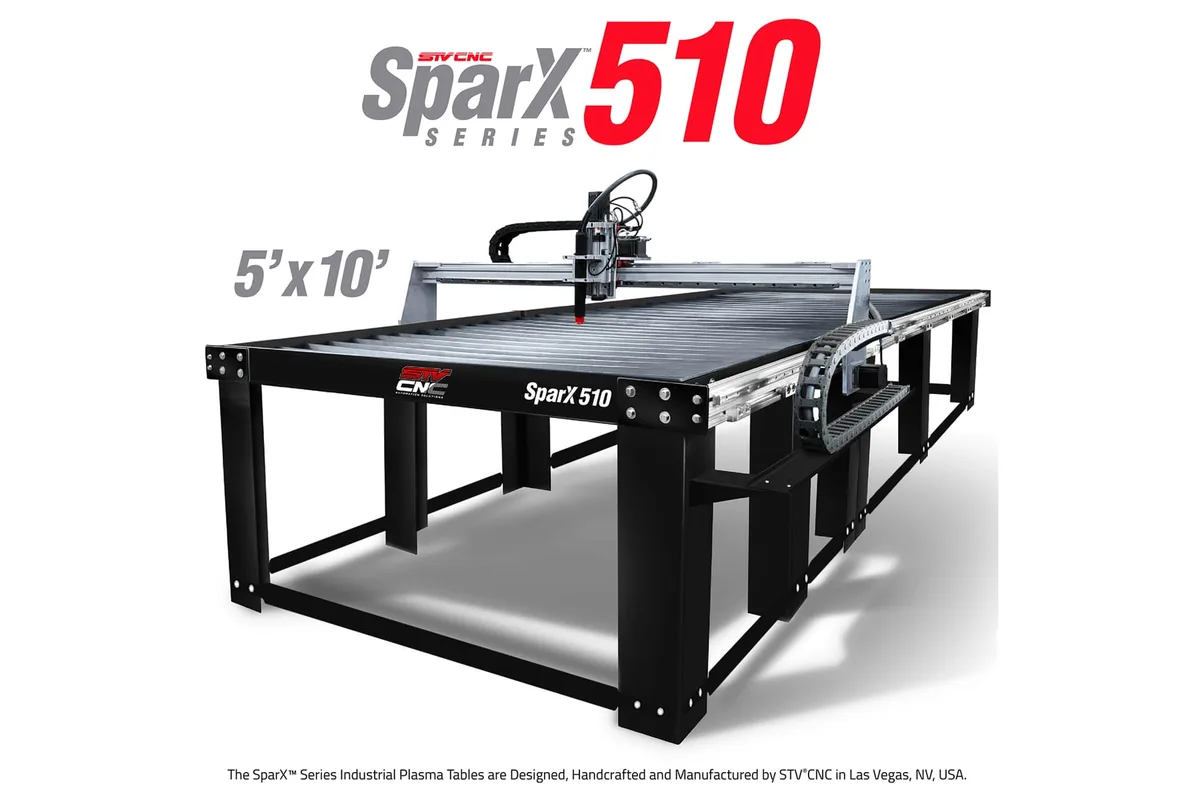

STV CNC SparX 510 CNC plasma table (maker's render with title overlay)

Image: stvcnc.com, STV CNC

Key Specifications

cutting area

10 ft x 5 ft (3,048 x 1,524 mm)

max plate thickness

1.5 in (38 mm) steel plate

machine dimensions

12 ft x 7 ft x 5 ft (3,658 x 2,134 x 1,524 mm), approximate

water pan capacity

About 137 gallons (519 L)

water pan depth

3 in (76 mm)

z axis travel

5.5 in (140 mm)

How much does the STV CNC SparX 510 cost?

Price estimate

Uncertain

We do not have a price for the STV CNC SparX 510 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The STV CNC SparX 510 cuts a 10 ft x 5 ft envelope, enough for a full 5 x 10 sheet or for a 4 x 8 sheet with room left beside it for a remnant. It is the bolt-together table in the STV CNC range, shipped in crates and assembled on site. Of the standard sizes this is the one bought for throughput: more parts per load and fewer sheet changes.

STV CNC supplies this series as a kit of bolted parts: an open modular frame with leg brace supports, an assembled extruded aluminum gantry, and bolt-on water pans 3 in deep that the owner seals with waterproof silicone. The manual puts assembly at 4 to 5 hours. Once together, the table is rated for 1.5 in steel plate and gives 5.5 in of Z travel on a precision ground ball lead screw. Motion comes from four NEMA stepper motors coupled 1:1, running rack and pinion along linear guides on gantry and table alike. A 3:1 gear reduction system exists as a later upgrade for smoother motion; the base table does not have it.

That capacity has a cost in water and floor. The pan holds about 137 gallons, which is a real job to drain and clean. The table occupies about 12 ft x 7 ft x 5 ft. A 5 x 10 sheet of plate cannot be manhandled, so overhead lifting or a forklift with a sheet lifter belongs in the plan along with the table.

The table is run from MyPlasmCNC, downloadable software for a Windows PC that the buyer supplies and connects by USB. STV CNC presents it as a basic control for people new to CNC cutting, and it accepts .dxf, .plt, .tap, .2d and .hpgl files. On the torch side the base table already has height control, a magnetic breakaway and collision, ohmic and material detection sensors, and it can be operated wet or dry. A plasma cutter is not part of the table and is chosen to suit the thickness being cut.

Full Specifications

Parameter	Value
Cutting Area	10 ft x 5 ft (3,048 x 1,524 mm)
Max Plate Thickness	1.5 in (38 mm) steel plate
Machine Dimensions	12 ft x 7 ft x 5 ft (3,658 x 2,134 x 1,524 mm), approximate
Water Pan Capacity	About 137 gallons (519 L)
Water Pan Depth	3 in (76 mm)
Z Axis Travel	5.5 in (140 mm)
Frame	Open bolt-on modular frame with bolted leg brace supports; assembly required
Gantry	Assembled, extruded aluminum gantry
Drive System	Standard rack and pinion with standard linear guide assembly (gantry and table)
Motor System	4 NEMA stepper motors, 1:1 ratio direct drive
Z Axis Drive	Precision ground billet ball lead screw
CNC Control	MyPlasmCNC (downloadable software, Windows PC required)
Controller Connectivity	USB
Slats	Interchangeable 1.5 in (38 mm) flat bar slats
Torch Height Control	Included
Table Power	110 V, 20 A

Specifications sourced from stvcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Torch height control, magnetic breakaway, collision switch and ohmic sensing are included on the base table
Rated for steel plate up to 1.5 in thick
Arrives in crates, so it can go through a standard door and be built where it will stand
10 ft x 5 ft envelope for full 5 x 10 sheets, or a 4 x 8 sheet plus a remnant

Limitations

Direct-drive steppers at a 1:1 ratio; gear reduction is a separate upgrade
MyPlasmCNC is described by the maker as a basic control and needs a customer-supplied Windows PC
About 137 gallons of water to fill, treat and eventually clean out

Best For

Production nesting on 5 x 10 sheet Long parts up to 10 ft, such as stringers, rails and trailer components Shops that can assemble the table themselves and have no forklift for a welded one

Frequently Asked Questions

01 What sheet sizes does the SparX 510 take?

Up to 10 ft x 5 ft, so a full 5 x 10 sheet fits, and a 4 x 8 sheet leaves a strip free for a remnant or a second small job. Plate capacity is 1.5 in of steel.

02 Which torch and sensing features come with the SparX 510?

Torch height control and an E-stop are standard, along with a magnetic breakaway that lets the torch release on a tip-up, and collision, ohmic and material detection sensors. The table can be operated wet or dry, and the slats are interchangeable.

03 How much space does the SparX 510 take?

STV CNC gives the occupied area as about 12 ft x 7 ft x 5 ft. Add room to bring a 10 ft sheet in from one side and to stand at the control. The water pan holds about 137 gallons, so a drain point nearby saves work at cleaning time.

04 Does the SparX 510 need assembly?

Yes. It is a modular, bolt-on frame that the owner assembles with the manual, which STV CNC estimates at 4 to 5 hours. The water pans bolt on as well and need waterproof silicone at the joints. The welded SparX PRO tables are the ones that ship fully built.
