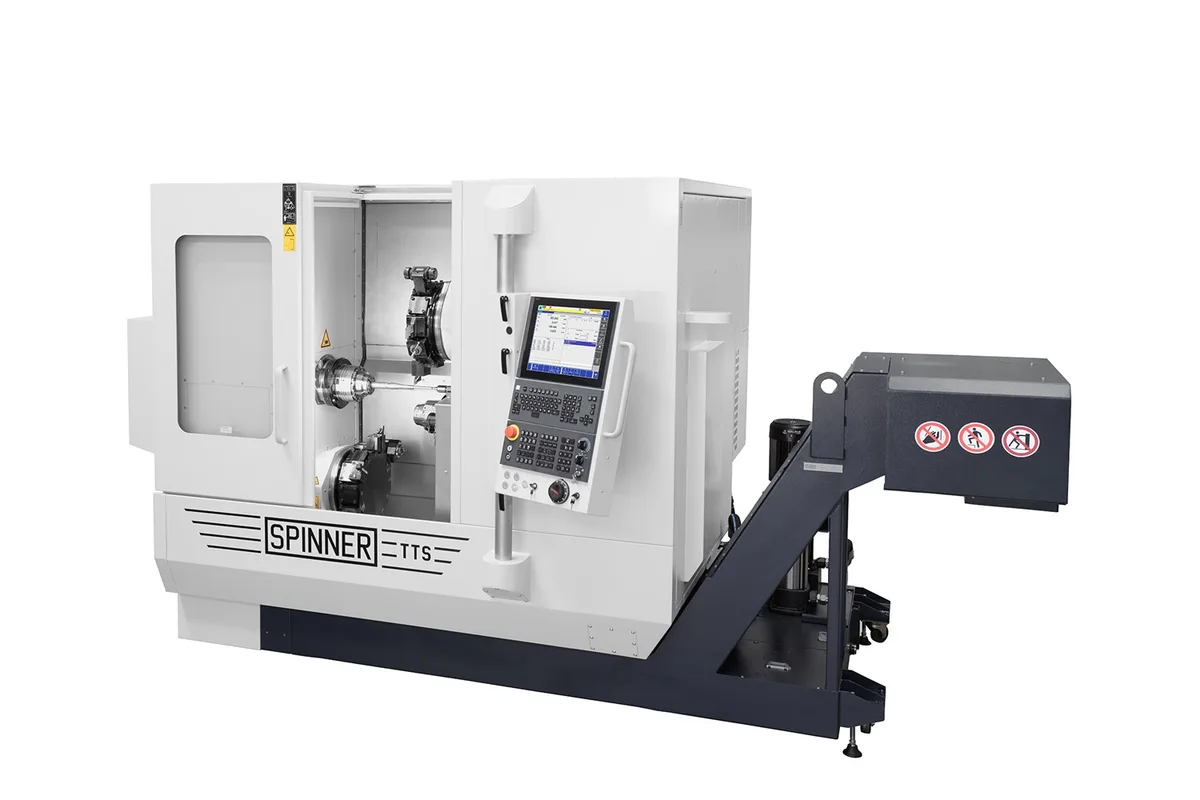

Spinner TTS52
Image: spinner.eu.com, Spinner
Key Specifications
Max Turn Length
max turning diameter
bar capacity
x axis travel
y axis travel
z axis travel
How much does the Spinner TTS52 cost?
Price estimate
We do not have a price for the Spinner TTS52 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 52 mm (2.0 in) bar capacity on a 450 mm (17.7 in) turning length defines the Spinner TTS52. It is the larger-bore of the two short TTS machines, with two turrets, a 90-degree slant bed and a maximum turning diameter of 250 mm (9.8 in).
On paper it shares its frame figures with the TTS36: both list 205 mm (8.1 in) of X travel, 90 mm (3.5 in) of Y and 450 mm (17.7 in) of Z, both carry two turrets with BMT45 tooling, and both are listed with Robobox automation. The spindle bore is the difference, 52 mm (2.0 in) here against 36 mm (1.4 in) on the TTS36. For a job shop that cannot predict its stock sizes, the bigger bore is the safer buy.
Moving up from here means a longer machine. The TTS65 has a 65 mm (2.6 in) bar capacity and 600 mm (23.6 in) of turning length, and its turret row reads 2 - 3 where the TTS52 lists 2. A part that calls for a third turret, or for more than 450 mm (17.7 in) of turning length, belongs on that machine.
Before ordering, pin down what the table leaves open. It gives a Y travel but no driven-tool speed, and no spindle speed or power at all. The control is Siemens or Fanuc.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Length | 450 mm (17.7 in) |
| Max Turning Diameter | 250 mm (9.8 in) |
| Bar Capacity | 52 mm (2.0 in) |
| X Axis Travel | 205 mm (8.1 in) |
| Y Axis Travel | 90 mm (3.5 in) |
| Z Axis Travel | 450 mm (17.7 in) |
| Turret Count | 2 |
| Tooling System | BMT45 |
| CNC Control | Siemens or Fanuc |
| Automation | Robobox |
| Bed | 90-degree slant bed |
Specifications sourced from spinner.eu.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 52 mm (2.0 in) bar capacity, against 36 mm (1.4 in) on the TTS36 with the same listed travels
- Two turrets with the BMT45 tooling system
- 90 mm (3.5 in) of Y travel alongside 205 mm (8.1 in) of X and 450 mm (17.7 in) of Z
- 250 mm (9.8 in) maximum turning diameter for chuck work between bar jobs
Limitations
- Maximum turning length is 450 mm (17.7 in); the TTS65 offers 600 mm (23.6 in)
- Listed with two turrets only, while the turret row of the TTS65 reads 2 - 3
- No tailstock, sub-spindle or steady rest row appears in the table for the TTS52, so confirm how longer parts are supported
- No spindle speed, power or driven-tool figures are published on Spinner's page for this model
Best For
Frequently Asked Questions
01
Up to 52 mm (2.0 in). Parts that do not come from bar can be chucked up to the 250 mm (9.8 in) maximum turning diameter. The maximum turning length is 450 mm (17.7 in), which is also the Z travel.
02
The tables are the same in every row except bar capacity. Both list a 450 mm (17.7 in) turning length, a 250 mm (9.8 in) turning diameter, two turrets and BMT45 tooling. The TTS52 takes 52 mm (2.0 in) bar and the TTS36 takes 36 mm (1.4 in). Spinner's table gives no spindle speeds for either, so ask whether the two spindles differ in speed as well as bore.
03
When the part is longer than 450 mm (17.7 in), the stock is larger than 52 mm (2.0 in), or the cycle needs a third turret. The TTS65 lists 600 mm (23.6 in) of turning length, a 65 mm (2.6 in) bar capacity and a turret row of 2 - 3.
04
Spinner's table for the TTS52 has no tailstock or sub-spindle row. The longer TTS65 does list a CNC tailstock or sub-spindle. Confirm the spindle arrangement of the TTS52 with Spinner before planning work on the second side of a part.
