Spinner Mill-Turn / Multi-Tasking Machines

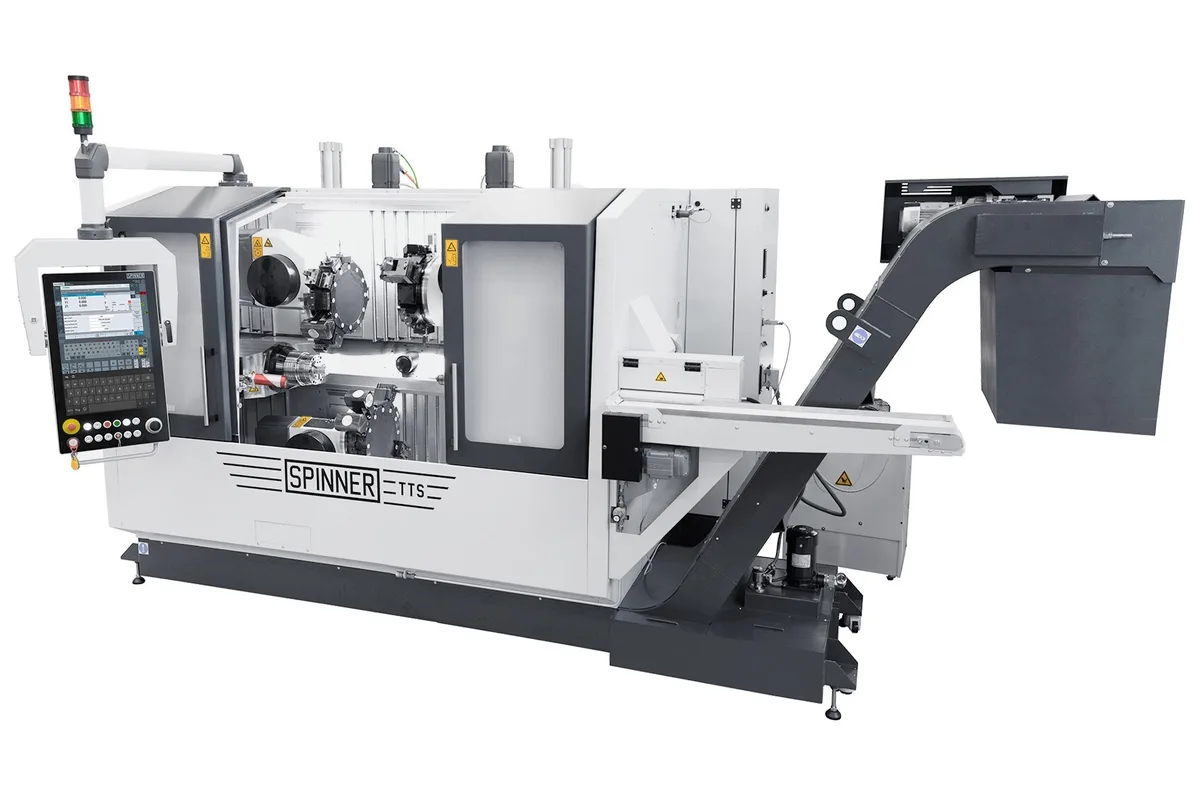

Spinner TTS65

Specs verified 2026-10-03 · spinner.eu.com Updated 2026-10-03

Image: spinner.eu.com, Spinner

Key Specifications

Max Turn Length

600 mm (23.6 in)

max turning diameter

250 mm (9.8 in)

bar capacity

65 mm (2.6 in)

x axis travel

180 mm (7.1 in)

y axis travel

90 mm (3.5 in)

z axis travel

688 mm (27.1 in)

How much does the Spinner TTS65 cost?

Price estimate

Uncertain

We do not have a price for the Spinner TTS65 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Spinner TTS65 pairs a 65 mm (2.6 in) bar capacity with 600 mm (23.6 in) of turning length and a 250 mm (9.8 in) maximum turning diameter, and it is offered with 2 - 3 turrets.

Read the turning diameter and the bar capacity together. A 65 mm (2.6 in) bore in a machine that turns 250 mm (9.8 in) says this is a bar machine first and a chucking machine second. A shop that needs more diameter has to step up to the TTS85, which lists 585 mm (23.0 in) of turning diameter, an 85 mm (3.3 in) bar capacity and 2 - 4 turrets. Compared with the TTS42, the listed travels and options are identical and the bar capacity alone changes, from 42 mm (1.7 in) on the TTS42 to 65 mm (2.6 in).

The configuration rows deserve attention when a quotation is prepared. Turret count is 2 - 3 under the names Duplex, Twin and Triplex. Y axes number up to 2. The tooling system is VDI25 or BMT45, the second end is filled by either a CNC tailstock or a sub-spindle, and a turret steady rest is optional. Each of these changes what can be done in one setup, and Spinner's table does not say which combinations are possible together.

Travels are 180 mm (7.1 in) in X, 90 mm (3.5 in) in Y and 688 mm (27.1 in) in Z on a 90-degree inclined bed. Robobox automation is listed, the control is Siemens or Fanuc, and no spindle speed or power is given.

Full Specifications

Parameter	Value
Max Turning Length	600 mm (23.6 in)
Max Turning Diameter	250 mm (9.8 in)
Bar Capacity	65 mm (2.6 in)
X Axis Travel	180 mm (7.1 in)
Y Axis Travel	90 mm (3.5 in)
Z Axis Travel	688 mm (27.1 in)
Turret Count	2 - 3 (Duplex, Twin or Triplex)
Y Axes	Up to 2
Tooling System	VDI25, BMT45
CNC Control	Siemens or Fanuc
Automation	Robobox
Bed	90-degree inclined bed
Tailstock	CNC tailstock or sub-spindle
Steady Rest	Optional turret steady rest

Specifications sourced from spinner.eu.com — verified 2026-10-03

Strengths & Limitations

Strengths

65 mm (2.6 in) bar capacity on a machine with a 250 mm (9.8 in) maximum turning diameter
600 mm (23.6 in) turning length backed by 688 mm (27.1 in) of Z travel
Available with 2 - 3 turrets and up to 2 Y axes
CNC tailstock or sub-spindle at the second end, with an optional turret steady rest
VDI25 or BMT45 tooling and a Siemens or Fanuc control

Limitations

Maximum turning diameter is 250 mm (9.8 in); the TTS85 turns 585 mm (23.0 in)
180 mm (7.1 in) of X travel and 90 mm (3.5 in) of Y limit the size of milled features
Tooling is VDI25 or BMT45; the BMT65 interface is listed for the TTS85, not for this model
No spindle speed, spindle power or driven-tool data on Spinner's page for the TTS65

Best For

Bar work up to 65 mm (2.6 in) in diameter Shafts up to 600 mm (23.6 in) long with tailstock or steady-rest support Volume parts where two or three turrets shorten the cycle Parts finished on both ends on a sub-spindle version

Frequently Asked Questions

01 What bar capacity does the Spinner TTS65 have?

65 mm (2.6 in). That is the largest bar capacity among the TTS models that share its 250 mm (9.8 in) maximum turning diameter. The next step in bar size is the TTS85 at 85 mm (3.3 in), which is a larger machine with a 585 mm (23.0 in) turning diameter.

02 What turret configurations does the TTS65 come in?

The table lists 2 - 3 turrets under the version names Duplex, Twin and Triplex, with up to 2 Y axes. It does not show how the turrets are positioned in each version, so ask Spinner for the layout of the version on offer and for which turrets the Y axes are fitted to.

03 How does the TTS65 compare with the TTS85?

The TTS85 is the bigger machine, with an 85 mm (3.3 in) bar capacity, a 585 mm (23.0 in) maximum turning diameter, 310 mm (12.2 in) of X travel and 2 - 4 turrets with BMT45 or BMT65 tooling. The TTS65 lists 65 mm (2.6 in), 250 mm (9.8 in), 180 mm (7.1 in) and 2 - 3 turrets with VDI25 or BMT45.

04 Is a steady rest available on the TTS65?

Yes, as an option. The table lists an optional turret steady rest, which supports a long part close to the cut. It matters on this model because the turning length is 600 mm (23.6 in) while the stock is at most 65 mm (2.6 in) in diameter when fed as bar.

05 What are the X, Y and Z travels of the TTS65?

X travel is 180 mm (7.1 in), Y travel is 90 mm (3.5 in) and Z travel is 688 mm (27.1 in). The Z travel is longer than the 600 mm (23.6 in) maximum turning length. The bed is a 90-degree inclined bed.
