Oscar EDM NX 1060

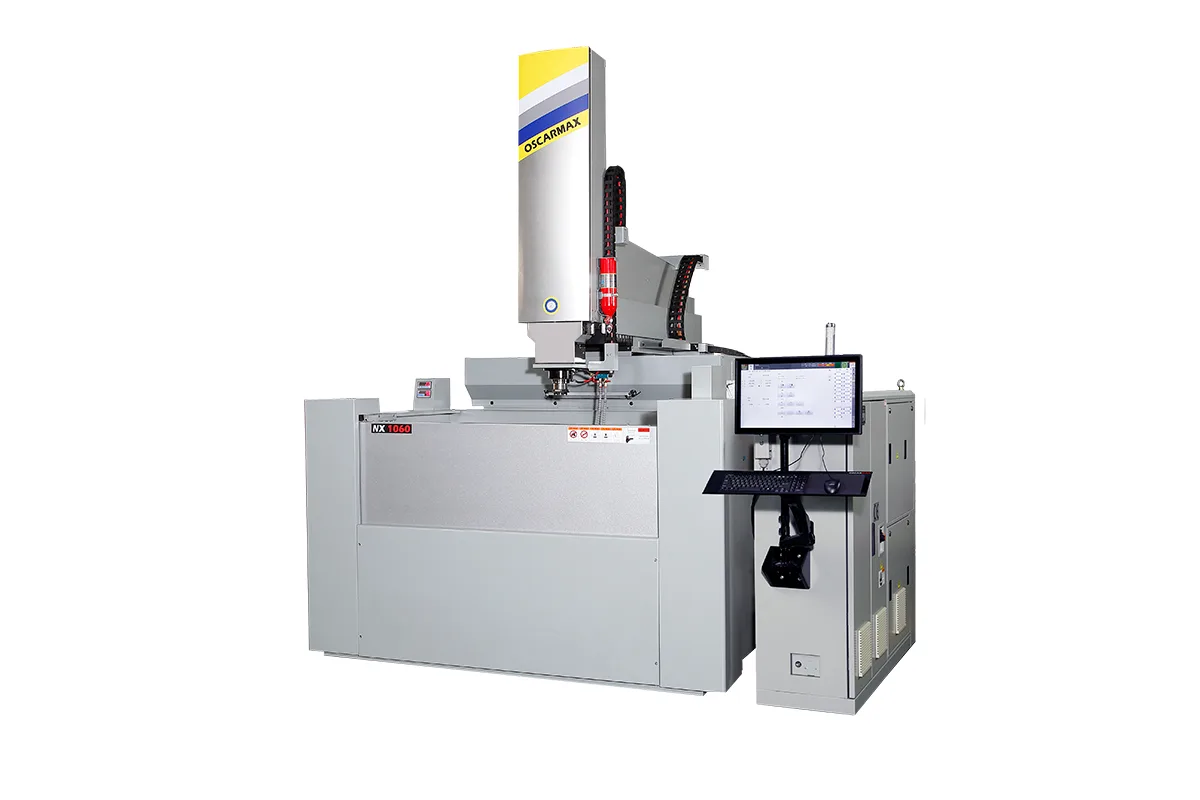

Image: oscaredm.com, Oscar EDM
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
max workpiece dimensions
dielectric fill height max
How much does the Oscar EDM NX 1060 cost?
Price estimate
We do not have a price for the Oscar EDM NX 1060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Oscar EDM NX 1060 is a 1000 x 600 x 500 mm (39.4 x 23.6 x 19.7 in) die-sinker EDM operated from a 21.5 in multi-touch screen on a movable controller, with a color touch-screen remote control box for work at the tank. The control runs Windows 10 on an industrial i3 (or above) 64-bit CPU.
The operator side is what stands out in this listing. On a machine with a 1250 x 750 mm (49.2 x 29.5 in) table, the person setting up is often at the far corner of a mould block, picking up an edge or checking an electrode, well away from any fixed panel. A controller that can be moved and a hand-held box with its own touch screen cut down the walking between part and screen. The EX 1060 lists the same 1250 x 750 mm table and the same 5,500 kg (12,125 lb) machine weight, so on those figures the two are the same size, and the question to put to Oscar EDM is how the operator hardware of the two series compares.
Capacity is in the heavy mould class. Oscar EDM allows workpieces of 1670 x 990 mm (65.7 x 39.0 in) and 4,500 kg (9,921 lb), and electrodes of 350 kg (772 lb). Maximum working current is 120 A, enough to rough the broad electrode faces that blocks of this size tend to need.
For setup planning, note that the chuck sits 260 - 760 mm (10.2 - 29.9 in) above the table across the Z stroke and that dielectric fills to 460 mm (18.1 in). Services are 12 kVA of power consumption, a 380 kg (838 lb) generator and a 1,610 L dielectric tank with 6 filter elements rated at 20 μm. The listing gives no axis count for this model.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1000 mm (39.4 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Max Workpiece Dimensions | 1670 x 990 mm (65.7 x 39.0 in) |
| Dielectric Fill Height Max | 460 mm (18.1 in) |
| Distance Chuck to Table | 260 - 760 mm (10.2 - 29.9 in) |
| Max Workpiece Weight | 4,500 kg (9,921 lb) |
| Max Electrode Weight | 350 kg (772 lb) |
| Table Size | 1250 x 750 mm (49.2 x 29.5 in) |
| Machine Weight | 5,500 kg (12,125 lb) |
| Max Working Current | 120 A |
| Power Consumption | 12 kVA |
| Generator Weight | 380 kg (838 lb) |
| Dielectric Tank Capacity | 1,610 L |
| Filter Rating | 20 μm |
| Filter Elements | 6 |
| CNC Control | Windows 10, industrial i3 (or above) 64-bit CPU |
| Display | 21.5 in multi-touch screen on movable controller; color touch-screen remote control box |
Specifications sourced from oscaredm.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 21.5 in multi-touch screen mounted on a movable controller
- Color touch-screen remote control box for setting up beside the workpiece
- 120 A maximum working current paired with a 350 kg (772 lb) electrode limit
- Workpieces up to 4,500 kg (9,921 lb) and 1670 x 990 mm (65.7 x 39.0 in)
- Windows 10 control on an industrial i3 (or above) 64-bit CPU
Limitations
- No axis count is listed for the NX 1060, so anything beyond X, Y and Z has to be confirmed with Oscar EDM
- Minimum chuck-to-table distance is 260 mm (10.2 in); low parts need raising
- Z travel is 500 mm (19.7 in) against 1000 mm (39.4 in) in X, so depth, not plan size, is what limits the largest jobs
- A 5,500 kg (12,125 lb) machine, a 380 kg (838 lb) generator and a 12 kVA supply all need planning
Best For
Frequently Asked Questions
01
Two parts are listed: a 21.5 in multi-touch screen on a movable controller, and a color touch-screen remote control box. The control itself runs Windows 10 on an industrial i3 (or above) 64-bit CPU. The listing does not describe the software functions, so ask for a demonstration of the screens you would use daily.
02
Not in size or weight, on the listed figures. The EX 1060 has the same 1250 x 750 mm (49.2 x 29.5 in) table and the same 5,500 kg (12,125 lb) machine weight, and both name a Windows 10 control on an industrial i3 (or above) 64-bit CPU. The NX 1060 listing names a 21.5 in multi-touch screen on a movable controller and a color touch-screen remote control box, so ask Oscar EDM what operator hardware the EX 1060 is supplied with before deciding.
03
X travel is 1000 mm (39.4 in), Y is 600 mm (23.6 in) and Z is 500 mm (19.7 in). The table measures 1250 x 750 mm (49.2 x 29.5 in), and the maximum workpiece is 1670 x 990 mm (65.7 x 39.0 in), so a block may extend past the table edges.
04
The listing for the NX 1060 does not give an axis count. It states X, Y and Z travels of 1000 mm (39.4 in), 600 mm (23.6 in) and 500 mm (19.7 in) and nothing further, so confirm any additional axis with Oscar EDM before ordering.
05
The dielectric tank capacity is 1,610 L, filtered through 6 elements rated at 20 μm. The fill height in the work area reaches 460 mm (18.1 in) at most, which is the level a burn has to stay under.
