Haas Automation 5-Axis Machining Centers

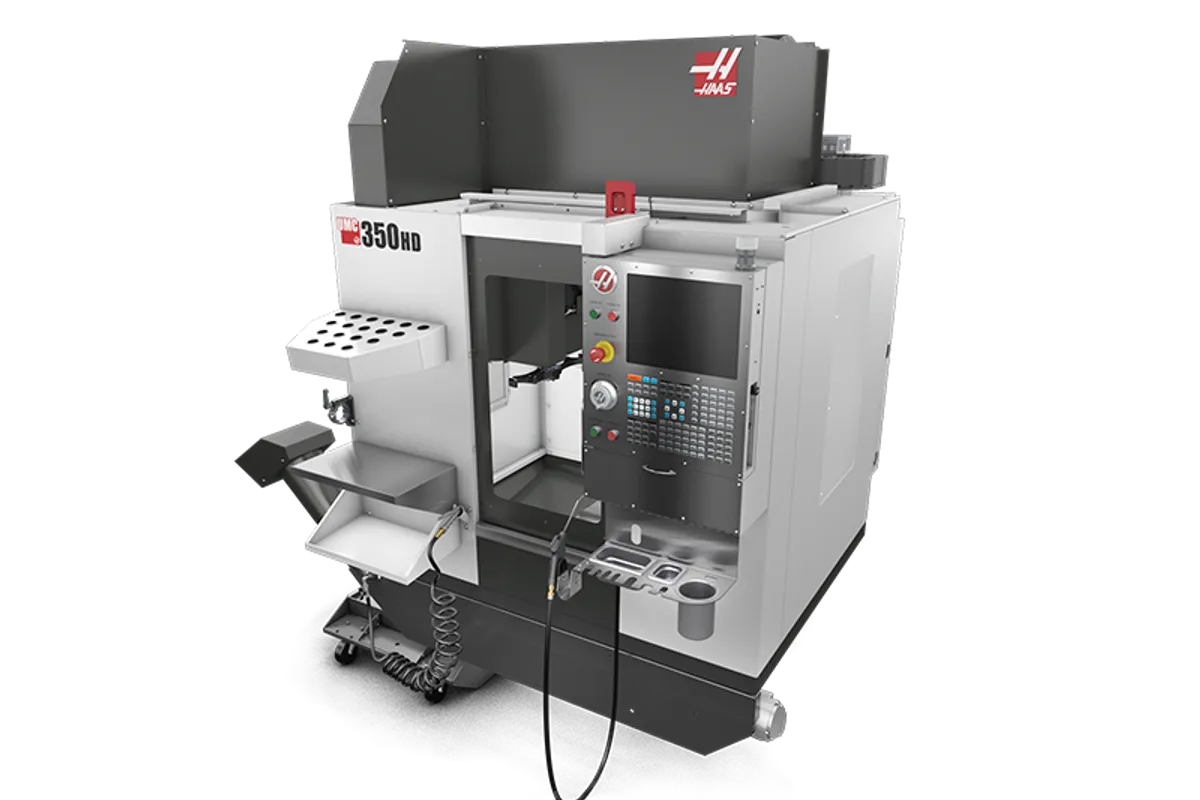

Haas UMC-350HD-EDU

List US$104,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

15 in (381 mm)

Y Travel

14 in (356 mm)

Z Travel

12 in (305 mm)

Max Spindle

10,000 rpm

Spindle Taper

CT or BT 40

Tool Capacity

18+1

How much does the Haas UMC-350HD-EDU cost?

Manufacturer list price

US$104,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas UMC-350HD-EDU is a compact trunnion 5-axis machining center: 15 × 14 × 12 in (381 × 356 × 305 mm) of travel, a 9.1 in (230 mm) platter and a 10,000 rpm, 40-taper inline direct-drive spindle. Its list price from Haas is US$104,995.

What stands out in the table is how fast the linear axes are for a machine this size. Rapids are 2,400 ipm (61 m/min) and the cutting feedrate goes to 1,200 ipm (30.5 m/min); the UMC-400, the next model up, rapids at 900 ipm (22.9 m/min). Tool changes are quick too, at 1.6 s chip-to-chip from an 18+1 side-mount changer, and tapping speed goes to 5,000 rpm.

The trunnion carries parts of up to 100 lb (45.4 kg) with 14.5 in (368 mm) of swing. B tilts from +120° to -45° at 80°/sec, with 300 ft-lbf (407 N·m) of torque and a 425 ft-lbf (576 N·m) brake. C turns a full 360° at 100°/sec with 210 ft-lbf (285 N·m) and a 200 ft-lbf (271 N·m) brake. Haas publishes rotary accuracy for this model: ±25 arc-sec on B and ±15 arc-sec on C, both with 10 arc-sec repeatability.

The spindle carries the 15 hp (11.2 kW) rating also listed on the UMC-400, with 46 ft-lbf (62 N·m) at 1,700 rpm, here running to 10,000 rpm where that machine stops at 8,100 rpm. It is air cooled with air/oil-injected bearings and takes CT or BT 40 tooling. The tool envelope is tight: 2.5 in (64 mm) in diameter and 7 in long. The machine ships at 6,420 lb (2,915 kg) and runs on 40 A at 220 VAC three-phase or 20 A at 440 VAC.

Full Specifications

Parameter	Value
X-Axis Travel	15 in (381 mm)
Y-Axis Travel	14 in (356 mm)
Z-Axis Travel	12 in (305 mm)
Spindle Nose to Platter (max)	16 in (406 mm)
Spindle Nose to Platter (min)	4 in (102 mm)
Trunnion Platter Diameter	9.1 in (230 mm)
Trunnion Max Weight on Platter	100 lb (45.4 kg)
Spindle Motor Power	15 hp (11.2 kW)
Max Spindle Speed	10,000 rpm
Spindle Torque	46 ft-lbf @ 1,700 rpm (62 N·m @ 1,700 rpm)
Spindle Drive	Inline Direct-Drive
Spindle Taper	CT or BT 40
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Air Cooled
B Axis Travel	120 ° to -45 °
B Axis Max Speed	80 °/sec
B Axis Torque	300 ft-lbf (407 N·m)
B Axis Brake Torque	425 ft-lbf (576 N·m)
B Axis Accuracy	± 25 arc-sec
B Axis Repeatability	10 arc-sec
C Axis Travel	360 °
C Axis Max Speed	100 °/sec
C Axis Torque	210 ft-lbf (285 N·m)
C Axis Brake Torque	200 ft-lbf (271 N·m)
C Axis Max Part Swing	14.5 in (368 mm)
C Axis Accuracy	± 15 arc-sec
C Axis Repeatability	10 arc-sec
Max Cutting Feedrate	1,200 ipm (30.5 m/min)
Rapid Traverse Rate	2,400 ipm (61 m/min)
Max Thrust X	2,550 lbf (11,343 N)
Max Thrust Y	2,550 lbf (11,343 N)
Max Thrust Z	4,200 lbf (18,683 N)
Tool Changer Type	SMTC
Tool Capacity	18+1
Max Tool Diameter (full magazine)	2.5 in (64 mm)
Max Tool Length	7 in
Tool Change (chip-to-chip)	1.6 s
Max Tapping Speed	5,000 rpm
Coolant Capacity	55 gal (208 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 40 A
Electrical Service (high voltage)	440 VAC 3-phase, 20 A
Shipping Domestic Pallet	102 × 91 × 98.5 in (259 × 231 × 250 cm)
Shipping Export Pallet	102 × 91 × 98.5 in (259 × 231 × 250 cm)
Machine Weight	6,420 lb (2,915 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

2,400 ipm (61 m/min) rapids and a 1,200 ipm (30.5 m/min) cutting feedrate
1.6 s chip-to-chip tool change
Published rotary accuracy of ±25 arc-sec on B and ±15 arc-sec on C, with 10 arc-sec repeatability on both
10,000 rpm inline direct-drive spindle with 46 ft-lbf (62 N·m) at 1,700 rpm and a 5,000 rpm tapping speed
Ships at 6,420 lb (2,915 kg) and needs only 40 A at 220 VAC three-phase or 20 A at 440 VAC
Z thrust of 4,200 lbf (18,683 N) with 2,550 lbf (11,343 N) on X and Y

Limitations

The platter is 9.1 in (230 mm) in diameter and limited to 100 lb (45.4 kg), fixture included
18+1 tool pockets, where the UMC-400 has 30+1
Tools are limited to 2.5 in (64 mm) in diameter and 7 in long
15 hp (11.2 kW) spindle: adequate for the part sizes that fit, but not a roughing spindle
Travels of 15 × 14 × 12 in (381 × 356 × 305 mm) leave little room around a tilted part and its workholding

Best For

Small 5-axis parts up to 100 lb (45.4 kg) on a 9.1 in (230 mm) platter Short-cycle work that benefits from 2,400 ipm (61 m/min) rapids Aluminium and plastic components machined at up to 10,000 rpm Drilled and tapped parts, with tapping speeds to 5,000 rpm

Frequently Asked Questions

01 How big a part fits on the UMC-350HD-EDU?

The platter is 9.1 in (230 mm) in diameter and carries up to 100 lb (45.4 kg). Maximum part swing on C is 14.5 in (368 mm). Linear travels are 15 in (381 mm) in X, 14 in (356 mm) in Y and 12 in (305 mm) in Z, and the spindle nose sits between 4 in (102 mm) and 16 in (406 mm) from the platter.

02 How does the UMC-350HD-EDU compare with the UMC-400?

The UMC-400 has 17 × 11 × 13 in (432 × 279 × 330 mm) of travel, an 8,100 rpm spindle, 900 ipm (22.9 m/min) rapids and 30+1 tools. The UMC-350HD-EDU has 15 × 14 × 12 in (381 × 356 × 305 mm), 10,000 rpm, 2,400 ipm (61 m/min) rapids and 18+1 tools. Both carry the same 15 hp (11.2 kW), 46 ft-lbf (62 N·m) spindle rating and tilt B from +120° to -45° with 360° on C.

03 How accurate are the rotary axes?

Haas lists B-axis accuracy of ±25 arc-sec and C-axis accuracy of ±15 arc-sec, each with repeatability of 10 arc-sec. B moves at up to 80°/sec with a 425 ft-lbf (576 N·m) brake, and C at up to 100°/sec with a 200 ft-lbf (271 N·m) brake.

04 What tooling does the UMC-350HD-EDU take?

The taper is CT or BT 40. The side-mount changer holds 18+1 tools with a 1.6 s chip-to-chip time. Maximum tool diameter is 2.5 in (64 mm) and maximum length is 7 in. The table gives no figure for tool weight or for a larger diameter with empty adjacent pockets, so check those with Haas if you run large cutters.

05 What utilities does it need?

Electrical supply is 220 VAC three-phase at 40 A or 440 VAC three-phase at 20 A. Air consumption is 4 scfm at 100 psi (113 L/min at 6.9 bar) with at least 80 psi (5.5 bar) at the machine, through a 3/8 in hose and coupler. The coolant tank holds 55 gal (208 L). Shipping weight is 6,420 lb (2,915 kg) on a 102 × 91 × 98.5 in (259 × 231 × 250 cm) pallet.
