Mazak QTE-200M
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Z Travel
Max Spindle
Tool Capacity
Spindle Power
bed length type
How much does the Mazak QTE-200M cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak QTE-200M is an 8 in chuck turning center with a milling turret and Ø3 in (76 mm) of bar capacity, where the QTE-200 SG and the 6 in chuck QTE-100M both pass Ø2 in (51 mm). The main spindle runs to 5,000 rpm, the turret holds 12 tools and the bed is Mazak's 500U.
Both spindles come with a continuous and a 40% ED rating, which makes the table easy to plan from. The main spindle is 11 kW continuous and 15 kW (40% ED). The rotary tool spindle is 3.7 kW continuous and 5.5 kW (40% ED), runs to 4,500 rpm and has a maximum torque of 34.7 ft-lb (47 Nm). That torque is in the range for drilling, tapping and keyway cutting in bar and chucked parts. It is not a figure for heavy face milling.
Travel is 9 in (229 mm) in X and 24 in (610 mm) in Z, both with 1,181 ipm (30 m/min) rapids, under a Ø27 in (686 mm) swing. Maximum turning diameter is Ø13 in (330 mm). The table gives no maximum turning length, so take the usable length from Mazak's layout for the chuck and tooling quoted.
Mazak's model list tags the QTE-200M SG as Milling, Second Spindle. No second-spindle row appears in this table, whereas the QTE-200MSY table carries a 6 in second chuck at 6,000 rpm and a W axis. Read the 200M as a single-spindle milling lathe until Mazak says otherwise. It has no Y-axis row, so milling stays on the spindle centreline.
Full Specifications
| Parameter | Value |
|---|---|
| Bed Length Type | 500U |
| Max Swing | Ø27 in (686 mm) |
| Max Turning Diameter | Ø13 in (330 mm) |
| Max Bar Capacity | Ø3 in (76 mm) |
| Chuck Size | 8 in |
| Max Spindle Speed | 5,000 rpm |
| Spindle Power Intermittent | 15 kW (40% ED) |
| Spindle Motor Power | 11 kW continuous |
| Tool Capacity | 12 tools |
| Milling Spindle Speed | 4,500 rpm |
| Rotary Tool Spindle Max Torque | 34.7 ft-lb (47 Nm) |
| Rotary Tool Spindle Spindle Motor 40 Pct Ed | 5.5 kW (40% ED) |
| Milling Spindle Power | 3.7 kW continuous |
| X-Axis Travel | 9 in (229 mm) |
| Z-Axis Travel | 24 in (610 mm) |
| Rapid Traverse X | 1,181 ipm (30 m/min) |
| Rapid Traverse Z | 1,181 ipm (30 m/min) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- Ø3 in (76 mm) bar capacity through an 8 in chuck spindle
- Main spindle rated 11 kW continuous and 15 kW (40% ED) at up to 5,000 rpm
- Rotary tool spindle with 34.7 ft-lb (47 Nm) of maximum torque, 3.7 kW continuous and 4,500 rpm
- 1,181 ipm (30 m/min) rapid traverse in X and Z
- 12-tool turret with 24 in (610 mm) of Z travel under a Ø27 in (686 mm) swing
Limitations
- No Y axis, so milled features have to sit on the spindle centreline
- No second-spindle rows in the table, despite the Second Spindle tag on Mazak's model list
- Ø13 in (330 mm) maximum turning diameter, smaller than the Ø14 in (356 mm) of the QTE-200 SG
- The table states no maximum turning length and no main-spindle torque
Best For
Frequently Asked Questions
01
Ø3 in (76 mm). That is the main reason to choose it over the QTE-200 SG, which passes Ø2 in (51 mm), when the work is bar-fed. The chuck is 8 in and the spindle runs to 5,000 rpm.
02
It is rated 3.7 kW continuous and 5.5 kW (40% ED), with a maximum torque of 34.7 ft-lb (47 Nm) and a top speed of 4,500 rpm. Those figures suit drilling, tapping and light milling. There is no Y axis on this model, so the tool works on the spindle centreline.
03
Mazak's model list tags the QTE-200M SG as Milling, Second Spindle, but the table for the model has no second-spindle chuck, speed or power rows. The QTE-200MSY table does: a 6 in second chuck at 6,000 rpm with 5.5 kW continuous. Have Mazak confirm the configuration before ordering.
04
The QTE-100M has a 6 in chuck, 6,000 rpm, 8 in (203 mm) of X travel and Ø2 in (51 mm) of bar capacity. The 200M has an 8 in chuck, 5,000 rpm, 9 in (229 mm) of X travel and Ø3 in (76 mm) of bar capacity. Both have a Ø27 in (686 mm) swing, a Ø13 in (330 mm) maximum turning diameter, 24 in (610 mm) of Z travel and 12 tools.
05
Rapid traverse is 1,181 ipm (30 m/min) in both X and Z. X travel is 9 in (229 mm) and Z travel is 24 in (610 mm), so positioning moves between tools and from part to part are short at that rate.

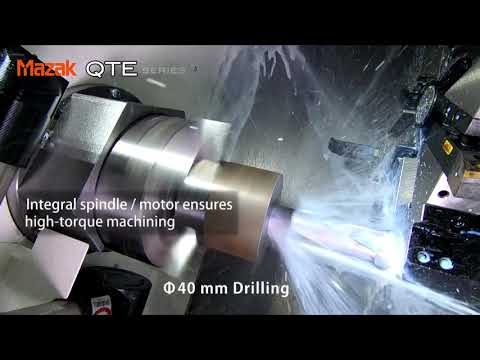

Videos
