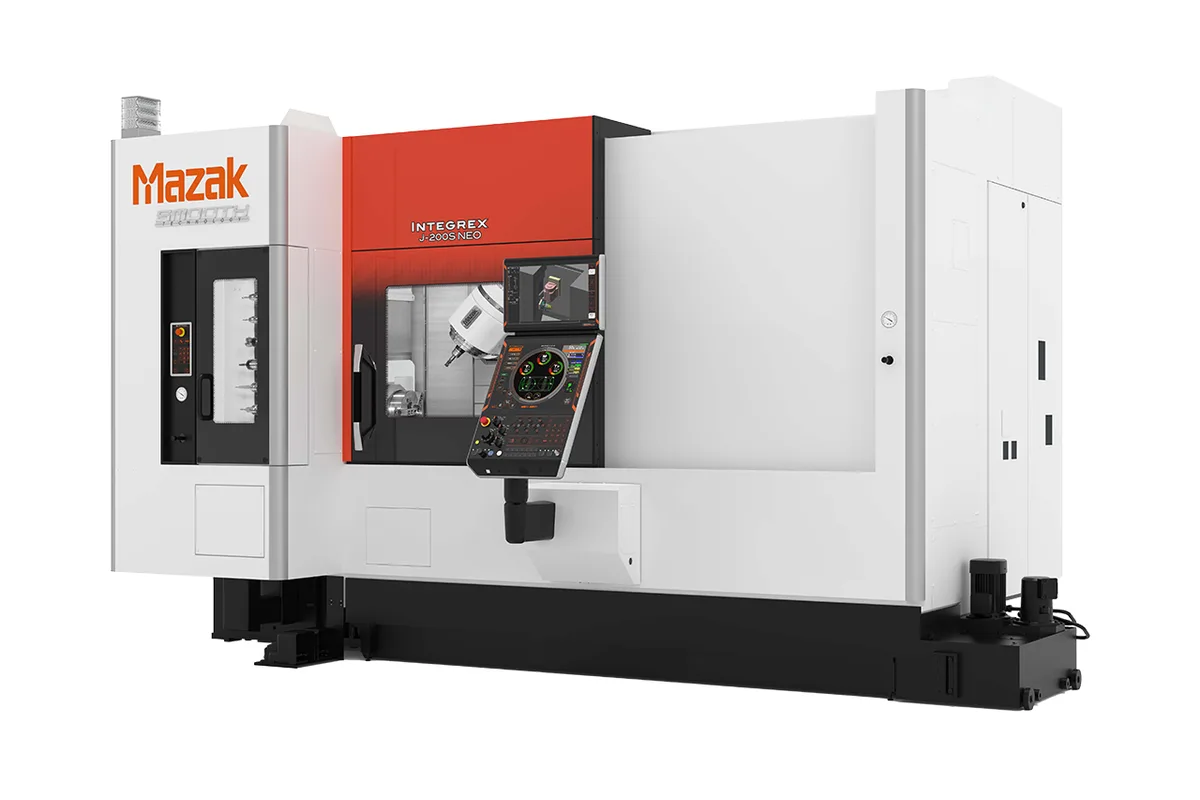

Mazak INTEGREX j-200 NEO

The Mazak INTEGREX j-200 NEO pairs an 8 in chuck and a Ø20 in (508 mm) maximum turning diameter with a main spindle rated 11 kW (15 HP) continuous, on a 500U bed that gives 20 in (508 mm) of turning length. The INTEGREX j-200 without the NEO suffix lists 7.5 kW (10 HP) continuous on the same 18 in (457 mm), 8 in (203 mm) and 22 in (559 mm) travels, so the turning spindle is the headline change.

That spindle is a built-in motor unit running to 5,000 rpm, with a 15 kW (20 HP) (40% ED) rating above the continuous one. Mazak's series page also mentions a high-performance specification at 18.5 kW (25 HP) and 326 Nm. It states no duty rating for those two figures, so ask which rating they refer to before comparing them with the standard spindle.

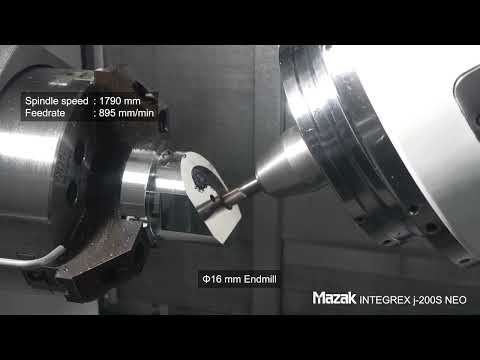

The milling spindle turns 12,000 rpm on an HSK-A63(T63) taper. Power is 5.5 kW (7 HP) continuous and 7.5 kW (10 HP) (40% ED); torque is 21.9 Nm (16 ft-lb) continuous and 27.5 Nm (20 ft-lb) (40% ED). The B-axis covers -30° to +210° and moves at 63 rpm, and Mazak describes the series' milling spindle unit as indexing in 1 degree increments. Fine indexing matters on parts with features at odd angles, which a coarser step would force onto a fixture or a form tool.

The magazine holds 20 tools up to Ø5 in (127 mm), 10 in (254 mm) long and 11 lb (5 kg). An MT No.5 live center tailstock supplies 1,574 lb (714 kg) of thrust. For the series Mazak lists an Energy Saver function that shows energy consumption and regenerative power on the CNC and sets coolant discharge to the cut, a coolant tank with a jet that keeps fine chips from settling, and the Ez LOADER collaborative robot cell. The machine weighs 16,976 lb (7,700 kg) and stands 104 in (2,642 mm) high.
