Mazak INTEGREX e-1060
This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Tool Capacity
Max Workpiece ⌀
max workpiece height
table speed
milling spindle speed
milling spindle taper
How much does the Mazak INTEGREX e-1060 cost?
Estimated price range
Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak INTEGREX e-1060 is listed as a vertical multi-tasking machine for large round work: a turning table for workpieces of 1,060 mm (41.73 in) approx. in diameter and 1,200 mm (47.24 in) approx. in height, with a milling spindle on a B-axis above it. The listed table speed is 500 RPM approx., and the listed machine weight is 30,000-35,000 kg (66,139-77,162 lb) approx.
This model has no spec table of its own on Mazak's site, so every figure here is a listed value to confirm, not a checked one. Mazak's INTEGREX e-H series list names the INTEGREX e-500H, e-500H-S (Second Spindle), e-670H, e-670H-S (Second Spindle) and e-800H; the e-1060 is not among them. The series statements that follow are background on the e family and should not be read as this machine's specification.
The listed milling spindle runs to 10,000 RPM, with a 5,000 RPM high-torque option, on a CAT 50 / Capto C6 taper. The B-axis range is listed as 150° and the C-axis as 360° continuous, so a part can be turned, then milled and drilled on its faces and periphery without re-clamping. Y-axis travel is listed at 31.5 in. Tool capacity is listed as 36-40 tools with expanded options, a 2-pallet changer appears as an option, and the control is listed as MAZATROL SmoothAi CNC.
Two listed rows do not sit easily together: a maximum workpiece diameter of 1,060 mm (41.73 in) approx. and a maximum machining diameter of Φ51.18 in. They may describe different things, such as the part on the table and the largest swing, but the page does not say. For the e-H series Mazak describes a built-in motor spindle, temperature-controlled oil around the spindle bearings and headstock, and a long boring bar system for deep bores in large workpieces. Ask Mazak which of these apply to an e-1060 on offer.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Diameter | 1,060 mm (41.73 in) approx. |
| Max Workpiece Height | 1,200 mm (47.24 in) approx. |
| Table Speed | 500 RPM approx. |
| Milling Spindle Speed | 10,000 RPM (5,000 RPM high-torque option) |
| Milling Spindle Taper | CAT 50 / Capto C6 |
| B Axis Range | 150° |
| C Axis Rotation | 360° continuous |
| Orientation | Vertical |
| Tool Capacity | 36-40 tools (expanded options available) |
| Pallet Changer | Optional 2-pallet |
| Machine Weight | 30,000-35,000 kg (66,139-77,162 lb) approx. |
| CNC Control | MAZATROL SmoothAi CNC |
| Chuck Size | 24" to 50" |
| Max Machining Diameter | Φ51.18″ |
| Y Axis Travel | 31.5″ |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Listed capacity for workpieces of 1,060 mm (41.73 in) approx. in diameter and 1,200 mm (47.24 in) approx. in height
- Listed milling spindle of 10,000 RPM with a 5,000 RPM high-torque option on a CAT 50 / Capto C6 taper
- Listed B-axis range of 150° with a 360° continuous C-axis for multi-face work in one clamping
- Listed Y-axis travel of 31.5 in
- Listed tool capacity of 36-40 tools, with expanded options, and an optional 2-pallet changer
Limitations
- No spec table of its own on Mazak's site, so the listed figures are unconfirmed and several carry an approx. qualifier
- The listed table speed of 500 RPM approx. limits surface speed on small-diameter features
- The 2-pallet changer and the 5,000 RPM high-torque spindle are listed as options, not standard equipment
- The listed 1,060 mm (41.73 in) approx. workpiece diameter and Φ51.18 in machining diameter are not reconciled on the page
- A listed weight of 30,000-35,000 kg (66,139-77,162 lb) approx. calls for foundation and rigging planning
Best For
Frequently Asked Questions
01
The listed maximum workpiece diameter is 1,060 mm (41.73 in) approx. and the listed maximum workpiece height is 1,200 mm (47.24 in) approx. A separate row lists a maximum machining diameter of Φ51.18 in, and chuck sizes are listed from 24 in to 50 in. Confirm which diameter applies to a given setup with Mazak.
02
A 10,000 RPM milling spindle, with a 5,000 RPM high-torque version as an option, on a CAT 50 / Capto C6 taper. The listed B-axis range is 150° and the C-axis is 360° continuous. No power or torque figures are listed, so ask for the motor ratings and their duty cycles.
03
Mazak's INTEGREX e-H series list names the INTEGREX e-500H, e-500H-S (Second Spindle), e-670H, e-670H-S (Second Spindle) and e-800H. The e-1060 is not named there and has no table of its own on Mazak's site. Treat e-H series statements as background and confirm the specification of an e-1060 directly.
04
The listed tool capacity is 36-40 tools, with expanded options available. A 2-pallet changer is listed as optional, so a base machine should be assumed to have a single table unless the order states otherwise. The listed control is MAZATROL SmoothAi CNC.
Videos
cnc World
cnc World
Perfection Global
Stenzel GmbH
Community Discussions
Links to community discussions. Summaries are editorial — visit the original thread for full context.
More from Yamazaki Mazak
Other Mill-Turn / Multi-Tasking Machines
WFL M20 Millturn
Accuway UA-1500T2Y2
Johnford ST-130EX+B+C+Y
DMG Mori NTX 2000

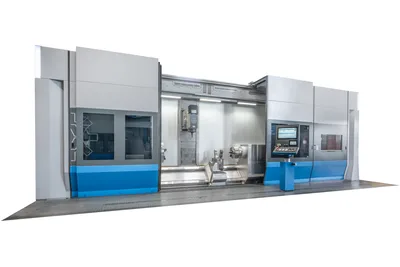

Weingärtner mpmc 1000 S
