Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

Mazak INTEGREX e-H

Est. $550,000 - $1,500,000+ Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

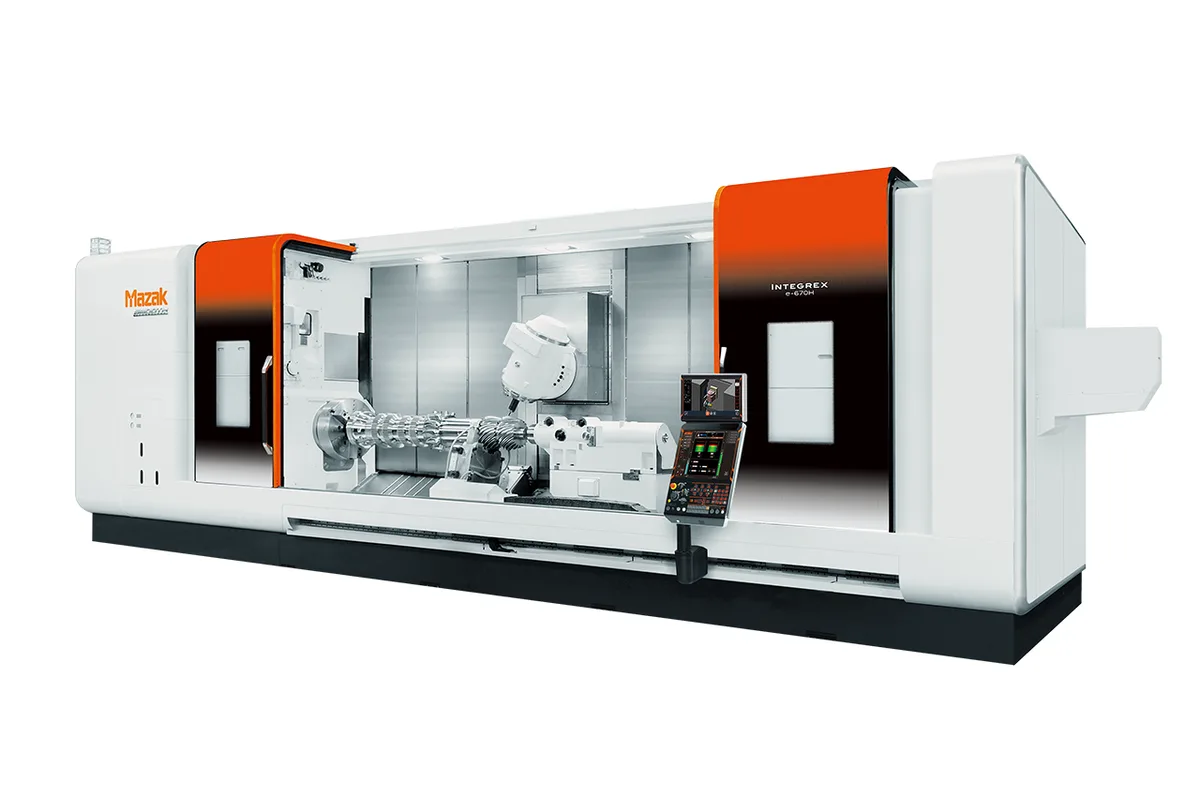

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

34 in (864 mm) to 51 in (1,295 mm)

Y Travel

20 in (508 mm) to 32 in (813 mm)

Z Travel

63 in (1,600 mm) to 172 in (4,369 mm)

Max Spindle

700 rpm to 3,300 rpm

Spindle Taper

CAT50

Tool Capacity

40 tools

How much does the Mazak INTEGREX e-H cost?

Estimated price range

Est.$550,000 - $1,500,000+

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX e-H series is a line of large horizontal multi-tasking machines that combine a turning spindle with a B-axis milling spindle and an automatic tool changer. Mazak lists five models, the INTEGREX e-500H, e-500H-S, e-670H, e-670H-S and e-800H; the two -S models have a second spindle.

The milling side is the same on every model: a CAT50 spindle at 10,000 rpm with 30 kW (40 HP) continuous and 191 Nm (141 ft-lb) continuous, rising to 37 kW (50 HP) and 260 Nm (192 ft-lb) at 40% ED. The B-axis indexes in 0.0001° increments, so one tool can be used vertically, horizontally or at any angle between. The magazine holds 40 tools of up to 66 lb (30 kg).

The turning side scales steeply. The INTEGREX e-500H turns at up to 3,300 rpm with 22 kW (30 HP) continuous, has 34 in (864 mm) of X, 20 in (508 mm) of Y and 63 in (1,600 mm) of Z, and weighs 49,824 lb (22,600 kg). The INTEGREX e-670H turns at 1,600 rpm with 37 kW (50 HP) continuous and grows to 40 in (1,016 mm), 26 in (660 mm) and 123 in (3,124 mm), at 68,342 lb (30,999 kg). The series carries on to a 700 rpm spindle, 45 kW (60 HP) continuous, 51 in (1,295 mm) of X, 32 in (813 mm) of Y and 172 in (4,369 mm) of Z, with bed length types from 1500U to 4000U and weights up to 173,280 lb (78,599 kg).

Long parts need support and reach. The tailstock rows list MT No.5, MT No.6 or a No.100 metric center, with thrust from 3,372 lb (1,530 kg) to 16,860 lb (7,648 kg). For deep inner diameters Mazak offers a long boring bar system whose tool head is changed automatically. Bars are kept in a dedicated stocker that holds 2 on the e-500H, 3 on the e-670H and 4 on the e-800H.

The control is the MAZATROL SmoothAi. To narrow the series, match Z travel to the length of the part, then decide between a tailstock and a second spindle for work on the far end.

Full Specifications

Parameter	Value
Models in Series	5 models: INTEGREX e-500H, INTEGREX e-500H-S, INTEGREX e-670H, INTEGREX e-670H-S, INTEGREX e-800H
Bed Length Type	1500U to 4000U
Max Spindle Speed	700 rpm to 3,300 rpm
Spindle Power Intermittent	30 kW (40 HP) (40% ED) to 45 kW (60 HP) (40% ED)
Spindle Motor Power	22 kW (30 HP) continuous to 45 kW (60 HP) continuous
Milling Spindle Speed	10,000 rpm
Milling Spindle Torque Intermittent	260 Nm (192 ft-lb) (40% ED)
Milling Spindle Torque	191 Nm (141 ft-lb) continuous
Milling Spindle Power Intermittent	37 kW (50 HP) (40% ED)
Milling Spindle Power	30 kW (40 HP) continuous
B Axis Indexing Increment	0.0001°
Spindle Taper	CAT50
Tool Capacity	40 tools
Max Tool Diameter (full magazine)	Ø5 in (127 mm)
Max Tool Diameter (adjacent pockets empty)	Ø10 in (254 mm)
Max Tool Length	20 in (508 mm) to 26 in (660 mm)
Max Tool Weight	66 lb (30 kg)
X-Axis Travel	34 in (864 mm) to 51 in (1,295 mm)
Y-Axis Travel	20 in (508 mm) to 32 in (813 mm)
Z-Axis Travel	63 in (1,600 mm) to 172 in (4,369 mm)
Rapid Traverse X	709 ipm (18 m/min) to 1,575 ipm (40 m/min)
Rapid Traverse Y	709 ipm (18 m/min) to 1,575 ipm (40 m/min)
Rapid Traverse Z	945 ipm (24 m/min) to 1,575 ipm (40 m/min)
Tailstock Taper	MT No.5 / MT No.6 / No.100 Metric center
Tailstock Thrust	3,372 lb (1,530 kg) to 16,860 lb (7,648 kg)
Machine Height	127 in (3,226 mm) to 183 in (4,648 mm)
Machine Weight	49,824 lb (22,600 kg) to 173,280 lb (78,599 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

CAT50 milling spindle on all five models: 10,000 rpm, 30 kW (40 HP) continuous and 191 Nm (141 ft-lb) continuous
Z travel from 63 in (1,600 mm) to 172 in (4,369 mm) for long shafts
Y travel of 20 in (508 mm) to 32 in (813 mm) for off-centre milling on large diameters
B-axis indexing in 0.0001° increments, so one tool works at any angle
Long boring bar system with automatic tool head change for deep inner diameters
Second-spindle versions of two sizes, the e-500H-S and e-670H-S

Limitations

Turning speed falls with size: 3,300 rpm on the INTEGREX e-500H, 1,600 rpm on the INTEGREX e-670H and 700 rpm at the bottom of the range
The table lists 40 tools on every model, modest for parts that combine turning, milling and boring in one setup
Rapids are as low as 709 ipm (18 m/min) in X and Y and 945 ipm (24 m/min) in Z at the slow end of the series
Weight reaches 173,280 lb (78,599 kg) and height 183 in (4,648 mm), so foundation and crane access must be planned
Mazak lists no second-spindle version of the e-800H

Best For

Long shafts and rolls needing up to 172 in (4,369 mm) of Z travel Large parts turned, milled and bored complete in one machine Deep inner-diameter machining with the long boring bar system Heavy shaft work held by a tailstock with up to 16,860 lb (7,648 kg) of thrust Angled features machined with the 0.0001° B-axis

Frequently Asked Questions

01 Which models are in the INTEGREX e-H series?

Mazak lists five: the INTEGREX e-500H, e-500H-S, e-670H, e-670H-S and e-800H. The e-500H-S and e-670H-S are the second-spindle versions. Across the series X travel runs from 34 in (864 mm) to 51 in (1,295 mm), Y from 20 in (508 mm) to 32 in (813 mm) and Z from 63 in (1,600 mm) to 172 in (4,369 mm), on bed length types from 1500U to 4000U.

02 How do the INTEGREX e-500H and INTEGREX e-670H differ?

The INTEGREX e-500H has a 3,300 rpm turning spindle with 22 kW (30 HP) continuous, travels of 34 in (864 mm), 20 in (508 mm) and 63 in (1,600 mm) in X, Y and Z, and a weight of 49,824 lb (22,600 kg). The INTEGREX e-670H has a 1,600 rpm spindle with 37 kW (50 HP) continuous, travels of 40 in (1,016 mm), 26 in (660 mm) and 123 in (3,124 mm), and a weight of 68,342 lb (30,999 kg). Both the INTEGREX e-500H and the INTEGREX e-670H rapid at 1,575 ipm (40 m/min) and carry 40 tools on a CAT50 milling spindle.

03 What is the milling spindle rated at?

The milling spindle is CAT50 and runs to 10,000 rpm on every model. It is rated 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED, with 191 Nm (141 ft-lb) continuous and 260 Nm (192 ft-lb) at 40% ED. The B-axis it swivels on indexes in 0.0001° increments.

04 What is the long boring bar system?

It is Mazak's answer to deep inner diameters in large workpieces. Long bars are kept in a dedicated stocker, 2 on the e-500H, 3 on the e-670H and 4 on the e-800H, and the tool head is changed automatically. Mazak gives long-bar tool lengths of 39.37 in and 59.06 in. Standard magazine tools are limited to between 20 in (508 mm) and 26 in (660 mm) depending on the model.

05 How does the INTEGREX e-500H compare with the INTEGREX i-500?

The INTEGREX e-500H has 20 in (508 mm) of Y against 17 in (432 mm) on the INTEGREX i-500, and a CAT50 milling spindle with 40 tools where the INTEGREX i-500 has HSK-A63 and 36 tools. The INTEGREX i-500 is the quicker machine, with a 4,000 rpm turning spindle and 1,969 ipm (50 m/min) rapids against 3,300 rpm and 1,575 ipm (40 m/min) on the INTEGREX e-500H. Both the INTEGREX e-500H and the INTEGREX i-500 are rated 22 kW (30 HP) continuous at the turning spindle.
