Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

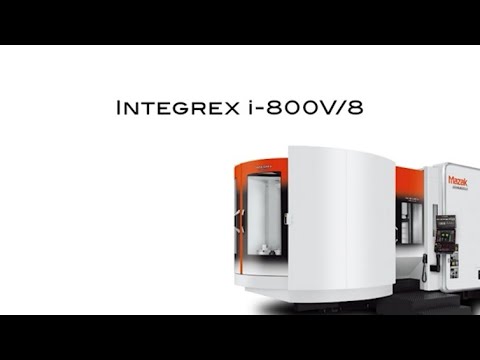

Mazak INTEGREX i-V

Est. $450,000 - $900,000+ Possible older model Updated 2026-10-02

This model was not found in Yamazaki Mazak's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.

Key Specifications

i 500v max workpiece

730 mm (28.74 in) dia x 1,000 mm (39.37 in)

i 630v max workpiece

1,050 mm (41.34 in) dia x 1,000 mm (39.37 in)

i 800v max workpiece

1,500 mm (59.06 in) dia x 1,500 mm (59.06 in)

i 500v tool shank

CAT 40

i 630v tool shank

CAT 50

i 800v tool shank

CAT 50

How much does the Mazak INTEGREX i-V cost?

Estimated price range

Est.$450,000 - $900,000+

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX i-V is a family of multi-tasking machines, the i-500V, i-630V and i-800V, that turn a part on a rotating table and mill it in the same setup. Mazak does not show the family in its current lineup, so this page is mainly of use to someone looking at a used machine, and it is kept to the listed figures.

Those figures set the three sizes apart by the part they hold. The i-500V is listed for a workpiece of 730 mm (28.74 in) dia x 1,000 mm (39.37 in), the i-630V for 1,050 mm (41.34 in) dia x 1,000 mm (39.37 in) and the i-800V for 1,500 mm (59.06 in) dia x 1,500 mm (59.06 in). Table speed runs the other way: 1,000 RPM, 550 RPM and 500 RPM. The smallest model is the one for turning small diameters at a useful surface speed.

Tooling splits the family too. The i-500V is listed with a CAT 40 shank, the i-630V and i-800V with CAT 50, so holders do not move between the small machine and the two larger ones. The listed milling spindle speed is 12,000 RPM. Also listed are full simultaneous 5-axis control, a C axis with 360° continuous rotation and the MAZATROL SmoothAi control.

Much that a buyer needs is absent from the table: axis travels, table load, spindle power and torque, tool capacity and machine weight. Take those from the documents of the machine being offered. For comparison with a model Mazak lists today, the INTEGREX e-1250V/8 has a maximum turning diameter of Ø57 in (1,448 mm) and a 5,952 lb (2,700 kg) table load.

Full Specifications

Parameter	Value
I 500v Max Workpiece	730 mm (28.74 in) dia x 1,000 mm (39.37 in)
I 630v Max Workpiece	1,050 mm (41.34 in) dia x 1,000 mm (39.37 in)
I 800v Max Workpiece	1,500 mm (59.06 in) dia x 1,500 mm (59.06 in)
I 500v Tool Shank	CAT 40
I 630v Tool Shank	CAT 50
I 800v Tool Shank	CAT 50
I 500v Table Speed	1,000 RPM
I 630v Table Speed	550 RPM
I 800v Table Speed	500 RPM
B Axis Range	Full simultaneous 5-axis
C Axis Rotation	360° continuous
Milling Spindle Speed	12,000 RPM
CNC Control	MAZATROL SmoothAi CNC
Tool Shank	CAT No.50
Max Workpiece Size	Φ66.93″ × 65.55″
Max Spindle Speed	500 min-1(rpm)

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Three sizes, with listed workpieces from 730 mm (28.74 in) dia x 1,000 mm (39.37 in) to 1,500 mm (59.06 in) dia x 1,500 mm (59.06 in)
Listed table speed of 1,000 RPM on the i-500V for turning smaller diameters
Listed milling spindle speed of 12,000 RPM
Full simultaneous 5-axis capability with a C axis of 360° continuous rotation, as listed

Limitations

Not shown in Mazak's current lineup, and the listed figures should be checked against the machine's own documents
No travels, table load, spindle power, tool capacity or machine weight in the table
The i-500V is listed with CAT 40 and the larger two with CAT 50, so tooling is not common across the family
Listed table speed falls to 550 RPM on the i-630V and 500 RPM on the i-800V

Best For

Turned parts that also need 5-axis milling in one setup Workpieces up to 1,500 mm (59.06 in) dia x 1,500 mm (59.06 in) on the i-800V, as listed Smaller disc and ring parts turned at up to 1,000 RPM on the i-500V Used-machine buyers who can verify the missing figures on site

Frequently Asked Questions

01 Is the Mazak INTEGREX i-V still in Mazak's lineup?

No, Mazak does not show the INTEGREX i-V in its current lineup. A current Mazak multi-tasking machine with a turning table is the INTEGREX e-1250V/8, which has a maximum turning diameter of Ø57 in (1,448 mm) and a table load of 5,952 lb (2,700 kg).

02 What workpiece sizes are listed for the INTEGREX i-V models?

The i-500V is listed at 730 mm (28.74 in) dia x 1,000 mm (39.37 in). The i-630V is listed at 1,050 mm (41.34 in) dia x 1,000 mm (39.37 in). The i-800V is listed at 1,500 mm (59.06 in) dia x 1,500 mm (59.06 in).

03 Which tool shank do the INTEGREX i-V machines use?

It depends on the model. The listed shank is CAT 40 for the i-500V and CAT 50 for both the i-630V and the i-800V. The listed milling spindle speed is 12,000 RPM. Confirm the shank on the actual machine before buying holders.

04 How fast do the INTEGREX i-V tables turn?

The listed table speeds are 1,000 RPM for the i-500V, 550 RPM for the i-630V and 500 RPM for the i-800V. The C axis is listed with 360° continuous rotation, and the control is listed as MAZATROL SmoothAi.
